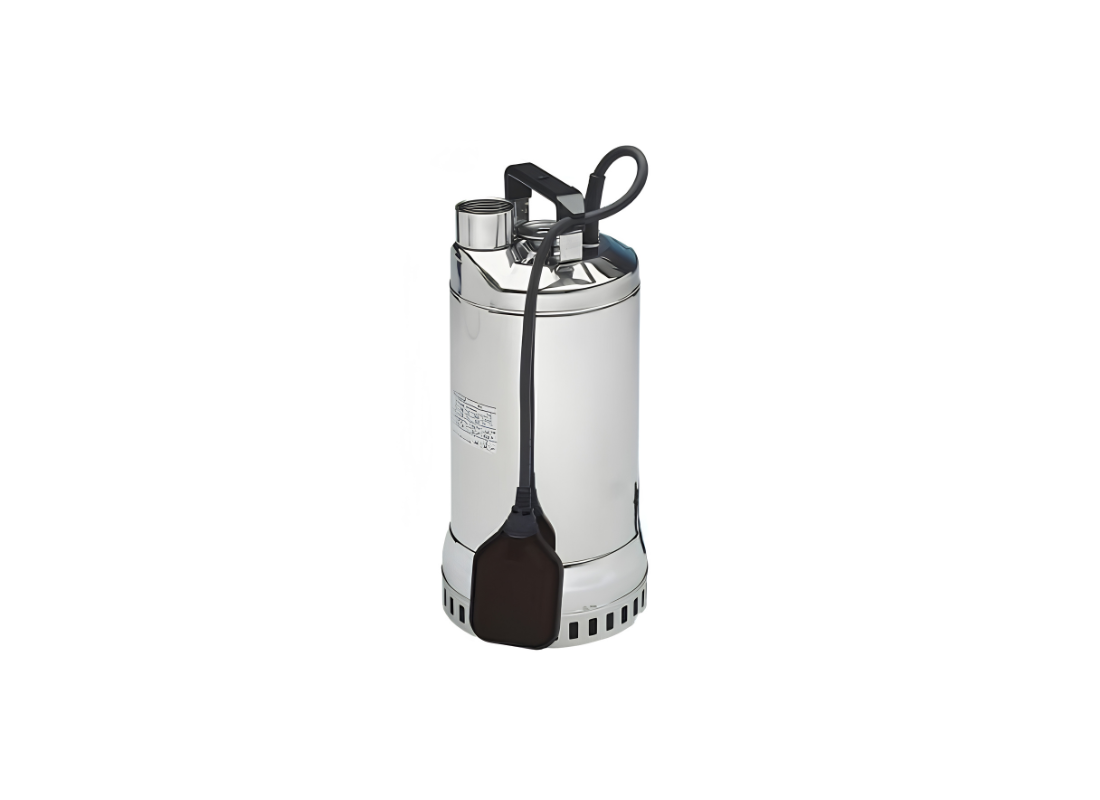

The DIWA5T model handles the operational challenges of managing domestic wastewater. Incorporating submersible pumps for clean and slightly dirty water manufactured in AISI 304 stainless steel, this grey water pump manages the extraction demands associated with emptying tanks and processing output from residential washing machines without a float switch.
Powered by a three-phase 415v electrical configuration, the motor generates 0.55 kW of output drawing a rated current of 1.48 Amps. The hydraulic assembly reliably achieves a maximum flow rate of approximately 250 L/Min and reaches a maximum head of 8.6 m. The dry electric motor is cooled by the pumped liquid, safely permitting activation up to 50°C.
Wear is controlled by the DRIVELUB SEAL SYSTEM, a multiple seal layout encompassing an internal oil chamber. This system merges a V-ring with a silicon carbide mechanical seal, creating a barrier against infiltration. The diffuser plate is coated with polyurethane for resistance to hydraulic abrasion. Fluid is driven by an open impeller through a 32 mm inlet.
Weighing exactly 11 kg, the device supports stable positioning within sumps. The structural casing delivers IPX8-rated protection for absolute underwater submersion. Class F insulation keeps the electrical layout secure, and the assembly is supplied with a 10-meter H07RN-F power cord, supporting the transfer of suspended solids up to 8 mm.
Features
- Manufactured utilizing EN 10088-1-X5CrNi18-10 stainless steel for the upper cover and robust motor casing.
- Operates via a standard three-phase electrical layout without an integrated pre-assembled float switch.
- Features a standard lip seal that is continuously lubricated by the internal fluid mechanism.
- Equipped with a motor configured for 2-pole operation operating at a standard 50 Hz frequency.
- Constructed with standard NBR elastomers integrated directly into the mechanical seal configuration.
- Endures a maximum immersion depth limit of 7 meters inside designated ecological drainage pits.
