SKU: DIWA7

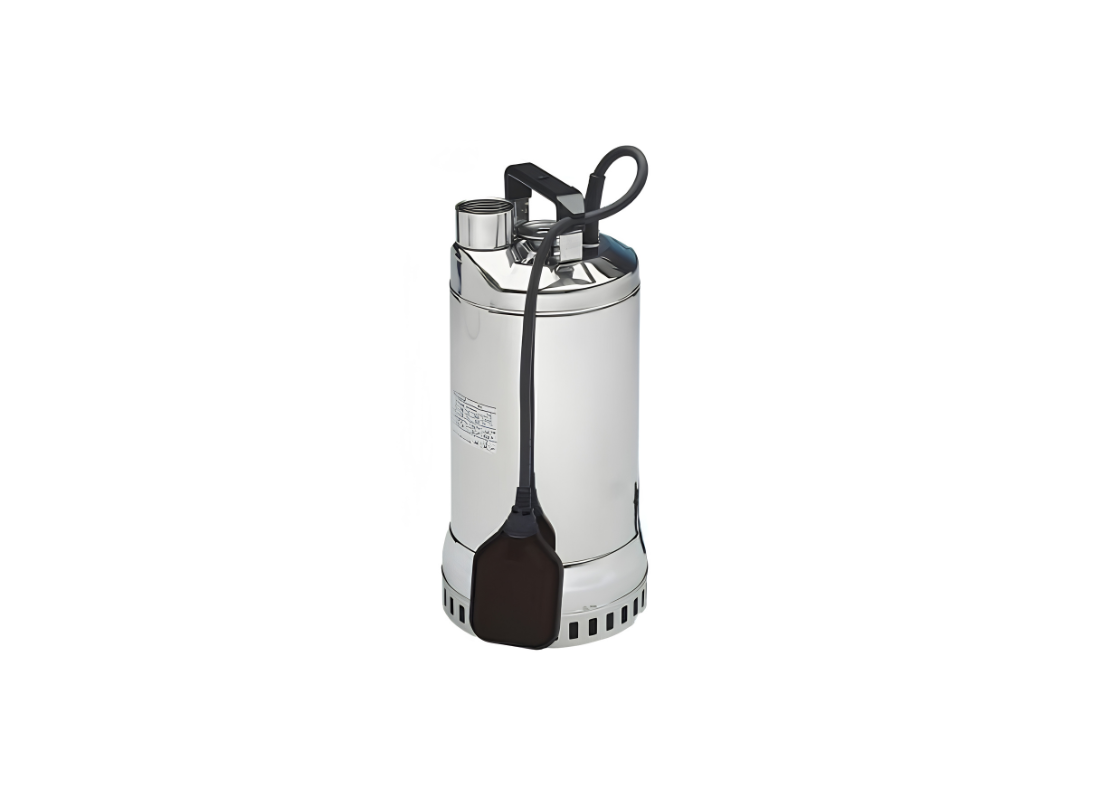

Lowara DIWA7 Stainless Steel Polyurethane Diffuser Drainage Pump for Lawn Irrigation with Open Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Constructed around an AISI 304 stainless steel housing, the DIWA7 grey water pump provides structural stability. Incorporating submersible pumps for clean and slightly dirty water manufactured in AISI 304 stainless steel, this unit handles fluid tasks. The casing is engineered to assist the emptying of tanks and lawn irrigation.
This single-phase 240v unit utilizes a 0.75 kW motor drawing 6.2 Amps. The system achieves a max flow of approximately 325 L/Min and projects liquid to a max head of 11.2 m. The dry motor is actively cooled by the pumped liquid, permitting activation provided the temperature stays below 50°C. A built-in capacitor assists starting.
The assembly employs the DRIVELUB SEAL SYSTEM, utilizing a V-ring alongside a silicon carbide mechanical seal within an oil chamber. The diffuser plate is heavily coated with polyurethane, supplying resistance to abrasion. Liquid enters through a 32 mm base inlet and exits via a 32 mm threaded outlet, accommodating suspended solids up to 8 mm.
With a net weight of 14.3 kg, the device provides reliable positioning. The unit is fitted with a 10-meter H07RN-F power cord and delivers IPX8 protection for absolute submersion. A pre-assembled float switch manages automatic activation at a minimum level of 25 mm. Class F insulation ensures the electrical layout remains completely secure.
Features
- Manufactured utilizing EN 10088-1-X5CrNi18-10 stainless steel for the structural shaft end and hardware.
- Includes integrated thermal overload protection designed to stop pump supply automatically in case of overheating.
- Features a standardized 2-pole motor architecture designated for 50 Hz electrical environments.
- Equipped with a thermoplastic polyurethane diffuser configuration to withstand harsh operational abrasion.
- Constructed to endure a maximum immersion depth of 7 meters inside designated ecological drainage pits.
- Utilizes high-grade NBR elastomers for consistent internal sealing across varying temperatures.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What operating liquid temperature range and maximum immersion depth in meters are supported by this submersible dewatering drainage pump?
Operating under submerged drainage conditions, the DIWA7 sustains a maximum 7 m immersion depth across fluid operating temperatures up to 40°C and accommodates 8 mm suspended solids.
How much fluid elevation head can this submersible dewatering drainage pump generate upward across pipe runs?
Providing in multi-story elevation loops, the DIWA-7 maintains a maximum dynamic head of approximately 11.2 m across vertical piping.
Through its flow assembly, what maximum delivery volume and discharge pipe diameter does this submersible dewatering drainage pump output?
Dispatching into building service circuits, the DIWA 7 outputs a peak liquid flow volume of approximately 325 L/Min through Rp 1-1/2" (40 mm) discharge threaded port.
What structural alloy metallurgy and mechanical face seal materials safeguard this submersible dewatering drainage pump against corrosion?
Formed against fluid chemical attack, the DIWA_7 utilizes alloy construction of AISI 304 stainless steel pump casing, diffusers, and polyurethane-coated open impeller backed by mechanical face seals to prevent fluid corrosion.
What electrical operating voltage and motor power rating in kilowatts are certified on this submersible dewatering drainage pump?
Incorporating under nominal voltage supply, the DIWA7 operates via an electric motor rated at 0.75 kW (1.0 HP) on a supply voltage of 220–240 V, 50 Hz, single-phase at 6.2 A.
