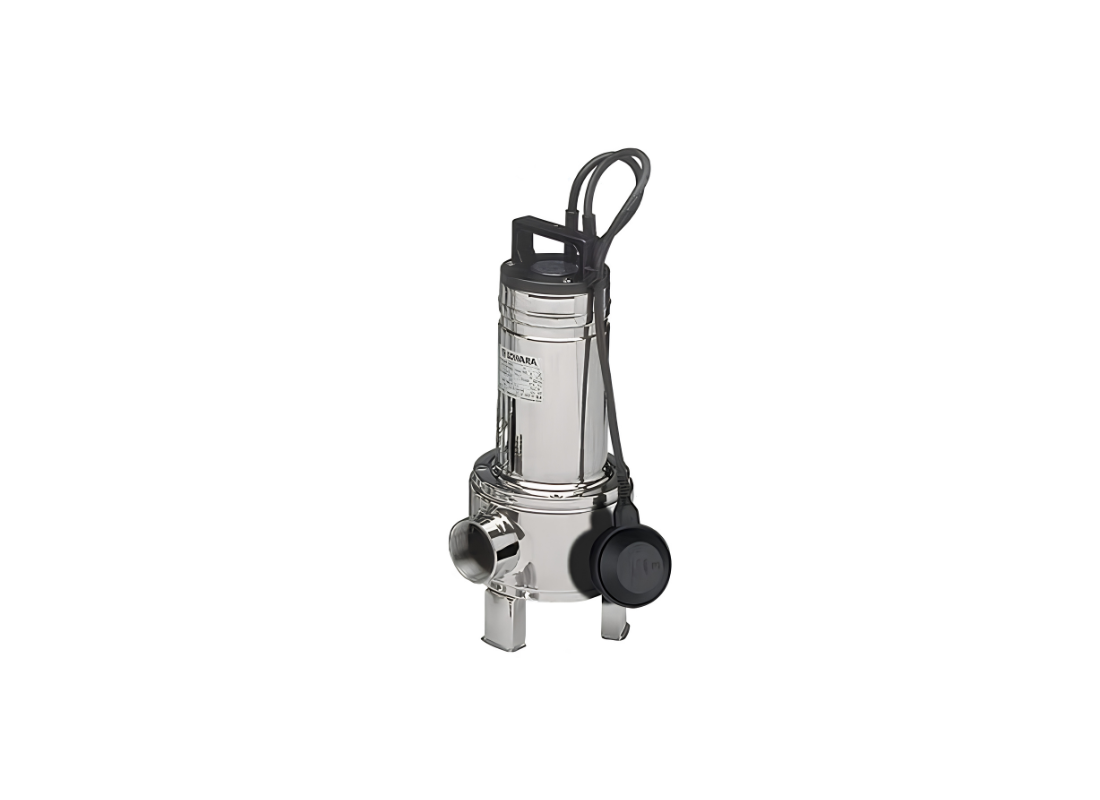

Lowara DOMO7T Stainless Steel 10m Cable Submersible Drainage Pump for Home Sumps with Channel Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Built for continuous liquid management, the DOMO 7T Channel Impeller model features a precision-cast 304 Stainless Steel housing. The Lowara DOMO 7T is specifically engineered to safely clear abrasive fluids without structural degradation, providing reliable operation for the emptying of septic tanks and residential sumps.
The internal fluid velocity paths are highly calibrated for the pumping of effluent. Utilizing a specialized Channel Impeller, the hydraulic trajectory mitigates internal friction while safely accommodating suspended solids up to 35 mm in diameter. This configuration ensures consistent fluid momentum even under challenging environmental demands.
Driven by a 0.55 kW Three-phase 415v supply, the internal motor draws 1.49 Amps. The robust dry motor architecture is tightly sealed to maintain a watertight boundary. By dissipating operational heat into the ambient liquid, the assembly remains thermally stable within the maximum 35°C threshold.
Generating reliable vertical lift, the unit sustains a maximum head of 7.5 m and an optimal maximum flow of approximately 320 L/Min. The 40 mm inlet and outlet port configurations support steady wastewater transfer. The entire drive shaft is protected by the DRIVELUB multiple seal system, utilizing an oil chamber and a silicon carbide mechanical seal for extreme abrasion defense.
Features
- Equipped with a precision Channel Impeller for steady liquid displacement.
- Constructed from resilient 304 Stainless Steel to prevent environmental degradation.
- Incorporates a highly reliable DRIVELUB multiple seal system.
- Features a premium silicon carbide mechanical seal for heavy-duty abrasion resistance.
- Engineered to safely transport liquids containing suspended solids up to 35 mm.
- Utilizes a watertight dry motor system for continuous submersion.
- Configured with standard IPX8 protection and Class 155°C (F) motor insulation.
SPECIFICATIONS
| Max Flow | 320 L/Min |
| Max Head | 7.5 m |
| Power | 0.55 kW / 415v |
| Rated Current | 1.49 Amps |
| Suitable For | Septic tanks, Effluent |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 40 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Under full flow operation, what maximum fluid volume and discharge connection sizing does this submersible sewage wastewater pump achieve?
Transmitting across commercial distribution lines, the DOMO7T achieves a peak delivery flow rate of approximately 320 L/Min across Rp 1-1/2" (40 mm) discharge threaded port.
How does the alloy metallurgy and mechanical face seal design ensure corrosion resilience in this submersible sewage wastewater pump?
Furnished with resilient metallurgy construction, the DOMO-7-T incorporates alloy construction of AISI 304 stainless steel motor casing and pump body with Drivelub mechanical seals and mechanical face seals to resist corrosive fluid attack.
What electrical motor power in kilowatts and line voltage current draw are built into this submersible sewage wastewater pump?
Utilizing by industrial electrical lines, the DOMO 7 T draws 1.49 A through an electric motor rated at 0.55 kW (0.75 HP) operating on 380–415 V, 50 Hz, three-phase.
What maximum immersion depth and allowable liquid operating temperature limits are certified on this submersible sewage wastewater pump?
Sustaining under submerged drainage conditions, the DOMO_7_T sustains a maximum 5 m immersion depth with liquid operating temperatures up to 35°C and manages 35 mm solids passage.
How much vertical lift elevation does this submersible sewage wastewater pump deliver through its impellers?
Attaining across facility piping systems, the DOMO7T delivers a maximum dynamic head rating of approximately 7.5 m to elevate fluid.
