SKU: EXCLPLUS-N-3280

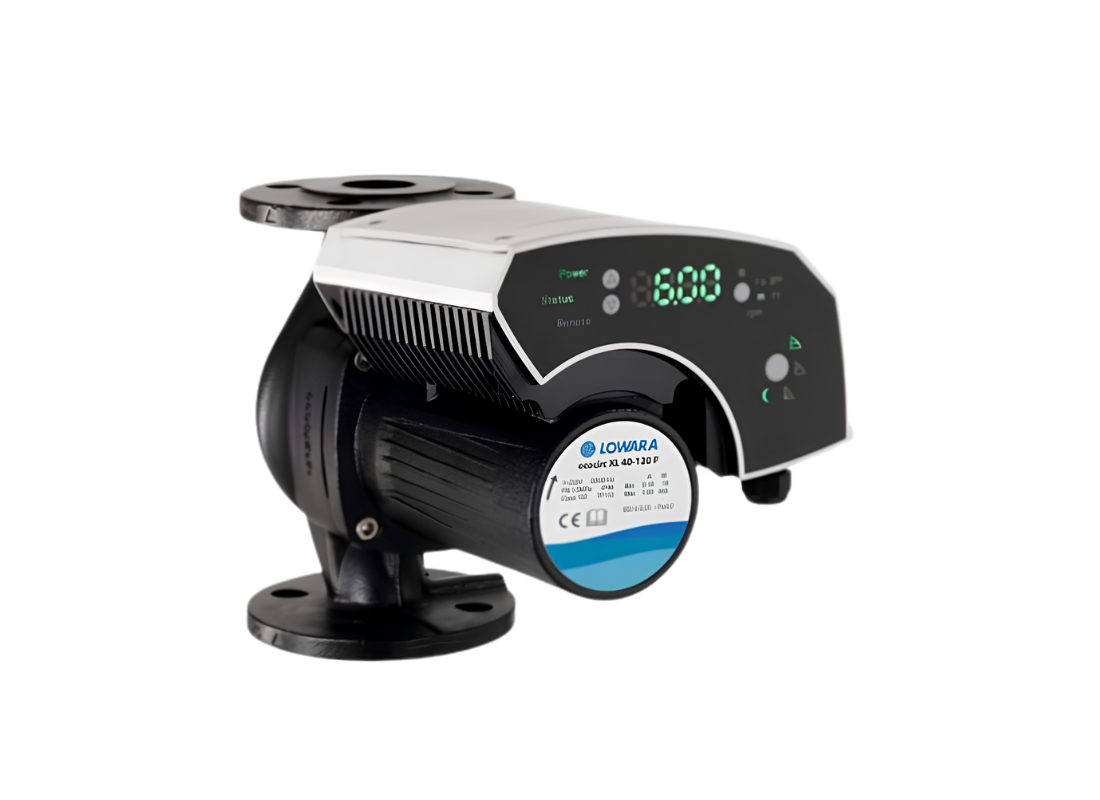

Lowara ECOCIRC-XL Plus 32-80 Bronze High Efficiency Circulator Pump for Hot Water System with ECM Motor
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Designed for hot and cold HVAC applications including secondary tap hot water, solar, and geothermal heating systems, the Lowara ECOCIRC XL Plus 32-80 delivers high efficiency circulation. This wet rotor circulator pump incorporates ECM motor technology for reduced energy consumption across building services applications.
Performance reaches a maximum head of 8 m with flow capability of approximately 200 L/Min on 240 V single-phase supply. The high efficiency design delivers energy savings compared to conventional circulator pumps, particularly when operating in proportional pressure, constant pressure, or constant speed modes.
The bronze pump body is paired with ECM motor technology. Electronic controls are separated from the pump section to prevent condensation when pumping chilled liquids. The digital display with large figures enables easy reading even in dark plant rooms. Modbus RTU and BACnet communications provide BMS integration.
Dry run protection stops the pump and prevents damage if the pump operates without water. Settings are programmable via PC, tablet, or smartphone through built-in communication BUS or optional Wi-Fi module. Two analogue inputs accept 4-20 mA or 0-10 V signals plus an auxiliary temperature probe. Temperature range extends from -10°C to +110°C.
FEATURES
- ECM motor for high efficiency operation
- Four functional control modes: proportional pressure, constant pressure, constant speed, and night mode
- Digital display with large figures for clear visibility in dark environments
- Modbus RTU and BACnet communication protocols for BMS integration
- Separated electronics block preventing condensation in chilled water systems
- Dry run protection preventing damage from no-water operation
- Two analogue inputs for 4-20 mA or 0-10 V external control signals
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Can this circulator communicate directly with a building management system?
The ECOCIRC-XL Plus 32-80 supports BMS integration via built-in Modbus RTU and BACnet protocols.
What happens if this pump accidentally runs without water?
Built-in dry run protection automatically stops the ECOCIRC-XL-Plus-32-80 to prevent damage during no-water operation.
What are the maximum head and flow ratings for this model?
The ECOCIRC XL Plus 32 80 delivers a maximum head of 8 m and a flow rate of approximately 200 L/Min.
How does the pump display settings in dimly lit mechanical rooms?
A high-contrast digital display with large figures ensures the ECOCIRC_XL_Plus_32_80 remains easy to read in dark plant rooms.
What liquid temperature extremes can this unit withstand?
Operating fluid temperatures for the ECOCIRC-XL Plus 32-80 range from -10°C up to +110°C.
