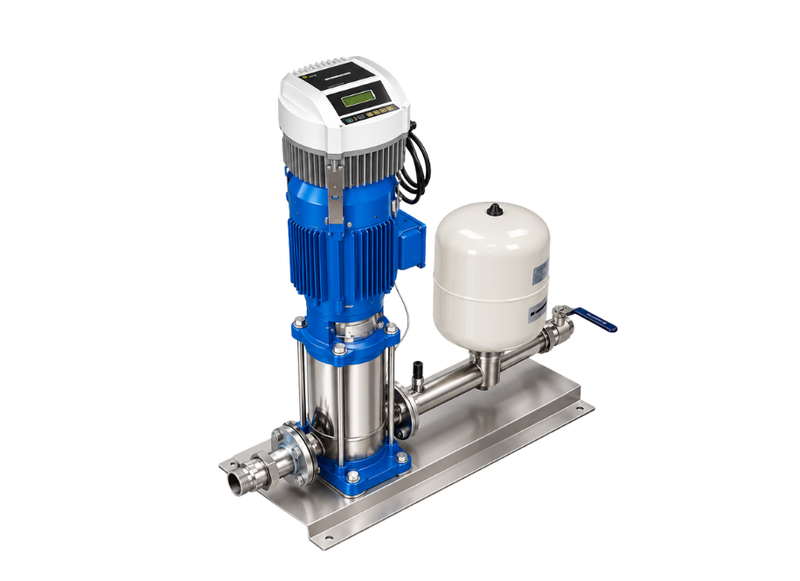

Lowara HBSESV1004-1 10SV04 Hydro-Boost Solo Variable Speed Booster Pump Set with 35L Tank
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
The Lowara HBSESV1004-1 Hydro-Boost Solo Variable Speed Booster Pump Set is a complete, professionally assembled constant-pressure water boosting system designed for residential, commercial, agricultural and building water supply applications. Featuring a Lowara 10SV04 e-SV vertical multistage pump combined with the intelligent HYDROVAR variable speed drive, the system automatically adjusts pump speed according to changing water demand.
Rather than operating continuously at full speed, the HYDROVAR monitors system pressure through a 4–20mA pressure transducer and varies the motor speed to maintain the required pressure. This provides smooth constant-pressure operation while helping reduce unnecessary energy consumption during periods of lower water demand.
The 10SV04 vertical multistage pump features robust stainless steel hydraulic construction and is designed specifically for reliable clean-water pressure boosting. With a 1.5kW motor, the pump delivers a maximum head of approximately 47.7 metres and operates across flows of up to approximately 233 LPM within the published hydraulic performance table.
HYDROVAR provides considerably more than basic variable speed control, incorporating protection against dry running, overvoltage, undervoltage, overload and earth faults. It can automatically stop the pump when water demand falls to zero and provides adjustable acceleration and deceleration for smooth pump starting and stopping.
The complete Hydro-Boost Solo package includes the Lowara e-SV pump, pump-mounted HYDROVAR controller, pressure transducer, 40mm stainless steel manifold, isolation valve, non-return valve, 35L pressure vessel, power isolation switch and stainless steel base. The complete system is supplied wired and run tested, providing a professional packaged solution ready for installation.
Key Features
- Complete variable speed constant-pressure booster pump set
- Lowara 10SV04 e-SV vertical multistage pump
- Pump-mounted HYDROVAR variable speed drive
- Automatically maintains pressure as water demand changes
- 4–20mA pressure transducer for accurate pressure monitoring
- 1.5kW motor
- Single-phase 208–240V power supply
- Maximum head of approximately 47.7 metres
- Hydraulic performance up to approximately 233 LPM
- 35L pressure vessel included
- 40mm stainless steel manifold
- Isolation and non-return valves included
- Integrated dry-running protection
- Automatic shutdown at zero water demand
- Overvoltage and undervoltage protection
- Motor overload protection
- Earth fault protection
- Adjustable acceleration and deceleration
- Automatic test-start functionality
- Motor and controller operating-hour monitoring
- Integrated LCD control interface
- Standard Modbus and BACnet communication capability
- IP55 HYDROVAR enclosure
- Lowara e-SV pump is AS4020 certified
- Supplied on a stainless steel base
- Complete system supplied wired and run tested
What's Included
- Lowara 10SV04 e-SV vertical multistage pump
- Lowara HYDROVAR variable speed drive
- 4–20mA pressure transducer
- 40mm stainless steel manifold
- Isolation valve
- Non-return valve
- 35L pressure vessel
- Power isolation switch
- Stainless steel mounting base
- Complete electrical wiring
- Factory run-tested booster system
