SKU: NSCEM32-125/22

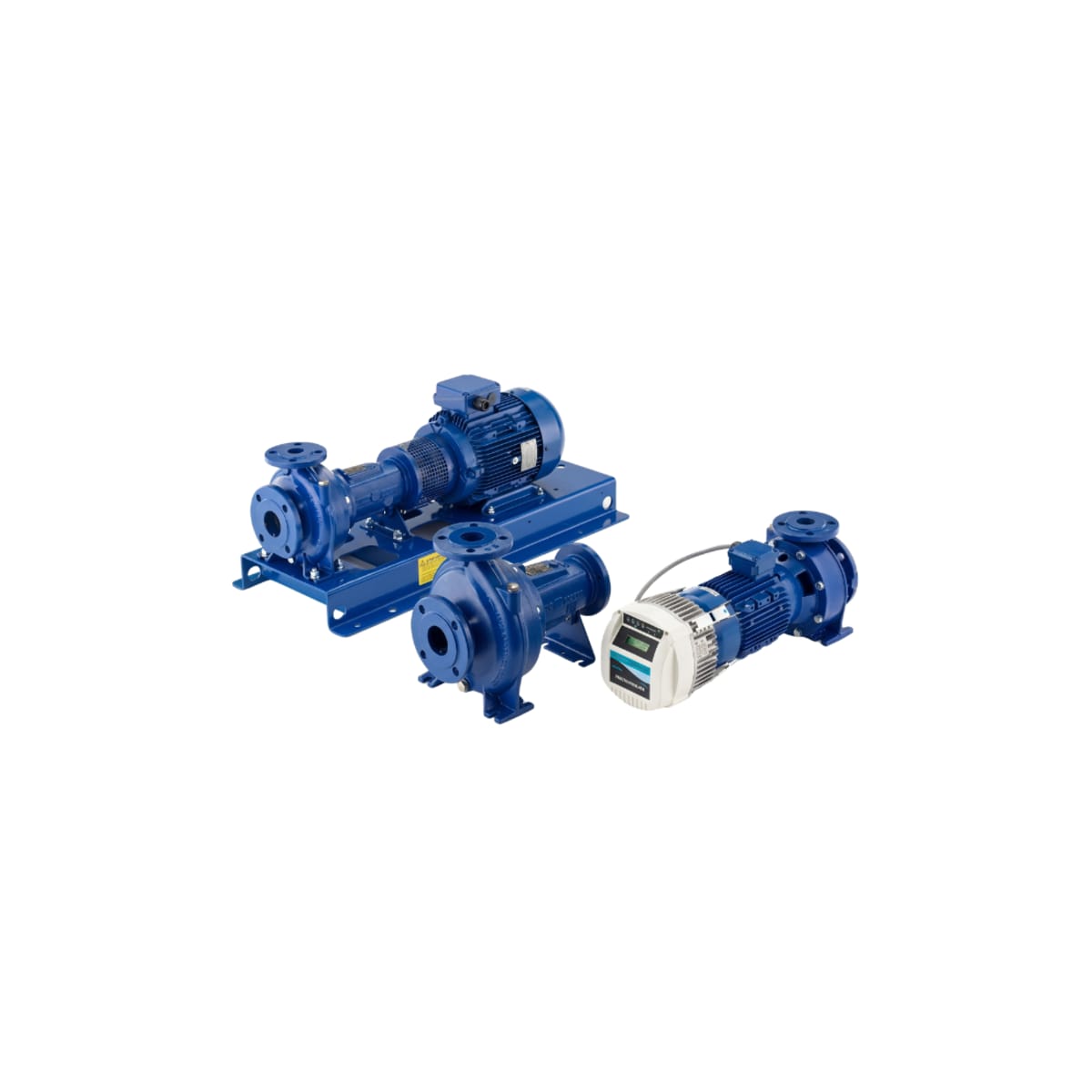

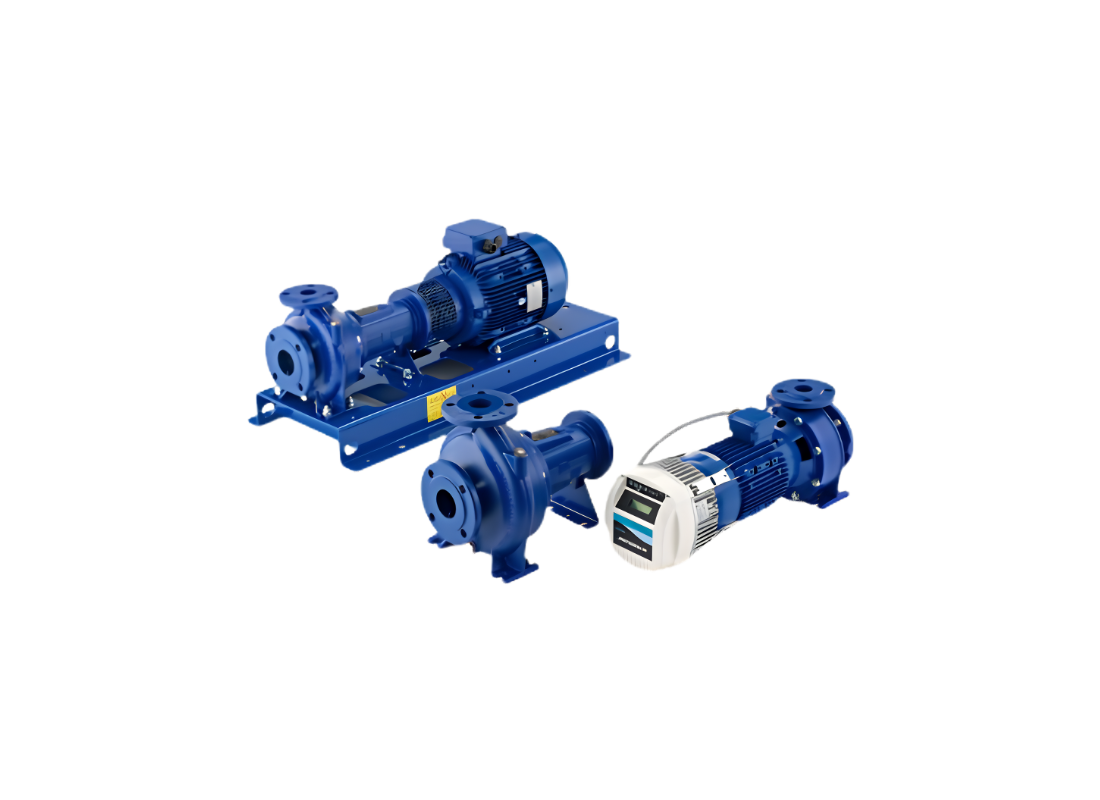

Lowara NSCEM32 125/22 Stainless Steel Single Stage Centrifugal Pump for Water Supply with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Engineered for continuous industrial water supply applications, the Lowara NSCEM32-125/22 manages critical liquid distribution across large-scale facilities. Its rugged construction provides the operational stability required for high-volume commercial manufacturing environments.
Powered by a heavy-duty 2.2 kW / 240v motor, this system produces a maximum flow of approximately 576 L/Min and reaches a maximum head of approximately 23.0 m. The unit is equipped with a 50 mm inlet and a 32 mm outlet, strictly accommodating standard metric industrial pipework.
This pump incorporates an advanced hydraulic profile designed to maintain continuous volumetric delivery. Its optimized internal passage reduces flow separation, ensuring a balanced transfer of liquids while protecting the internal components from cavitation damage.
The mechanical structure pairs a resilient Cast Iron body with a premium Fabricated Stainless Steel (AISI 316) impeller. Capable of withstanding extreme liquid temperatures up to +120 °C, the pump is securely housed with an IP55 protection rating and a secure extended shaft coupling.
FEATURES
- Rugged Cast Iron structural pump casing
- AISI 316 Fabricated Stainless Steel impeller
- Continuous operation IP55 standard motor
- Industrial-grade mechanical seal integration
- Broad liquid temperature tolerance up to +120 °C
- Extended shaft direct-coupled engineering
- Class 155 (F) thermal motor safety classification
SPECIFICATIONS
| Max Flow | 576 L/Min |
| Max Head | 23 m |
| Power | 2.2 kW / 240v |
| Suitable For | Industrial Process |
| Body Material | AISI 316 Stainless Steel |
| Liquid Temperature | '-25°C to +120°C |
| Inlet Size | 50 mm |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
In demanding pumping conditions, what metallurgy specifications and mechanical seal materials resist corrosion damage in this flanged end-suction centrifugal pump?
Forged with resilient metallurgy construction, the NSCEM32-125/22 relies on alloy construction of cast iron casing with stainless steel closed impellers paired with mechanical face seals to withstand liquid corrosion.
In facility electrical circuits, what motor kilowatt power rating and voltage feed support this flanged end-suction centrifugal pump?
Powered by industrial electrical lines, the NSCEM32-125-22 features an electric motor rated at 2.2 kW (3.0 HP) powered by 220–240 V, 50 Hz, single-phase with a rating of 11.8 A.
Across high-pressure installations, what maximum working pressure capability and temperature limits apply to this flanged end-suction centrifugal pump?
Operating under rigorous operating pressures, the NSCEM32 125 22 maintains a maximum working pressure rating of 16 bar (PN 16) across fluid operating temperatures from -25°C to +120°C.
Across vertical supply lines, what peak dynamic elevation head does this flanged end-suction centrifugal pump produce?
Operating across facility piping systems, the NSCEM32_125_22 develops a maximum dynamic elevation head of approximately 23 m to elevate water.
Through its ports, what maximum liquid flow volume and discharge pipe diameter are output by this flanged end-suction centrifugal pump?
Discharging across commercial distribution lines, the NSCEM32-125/22 provides a peak fluid flow rate of approximately 576 L/Min connecting via DN 50 suction and DN 32 discharge flanged ports.
