SKU: NSCS32-125/22

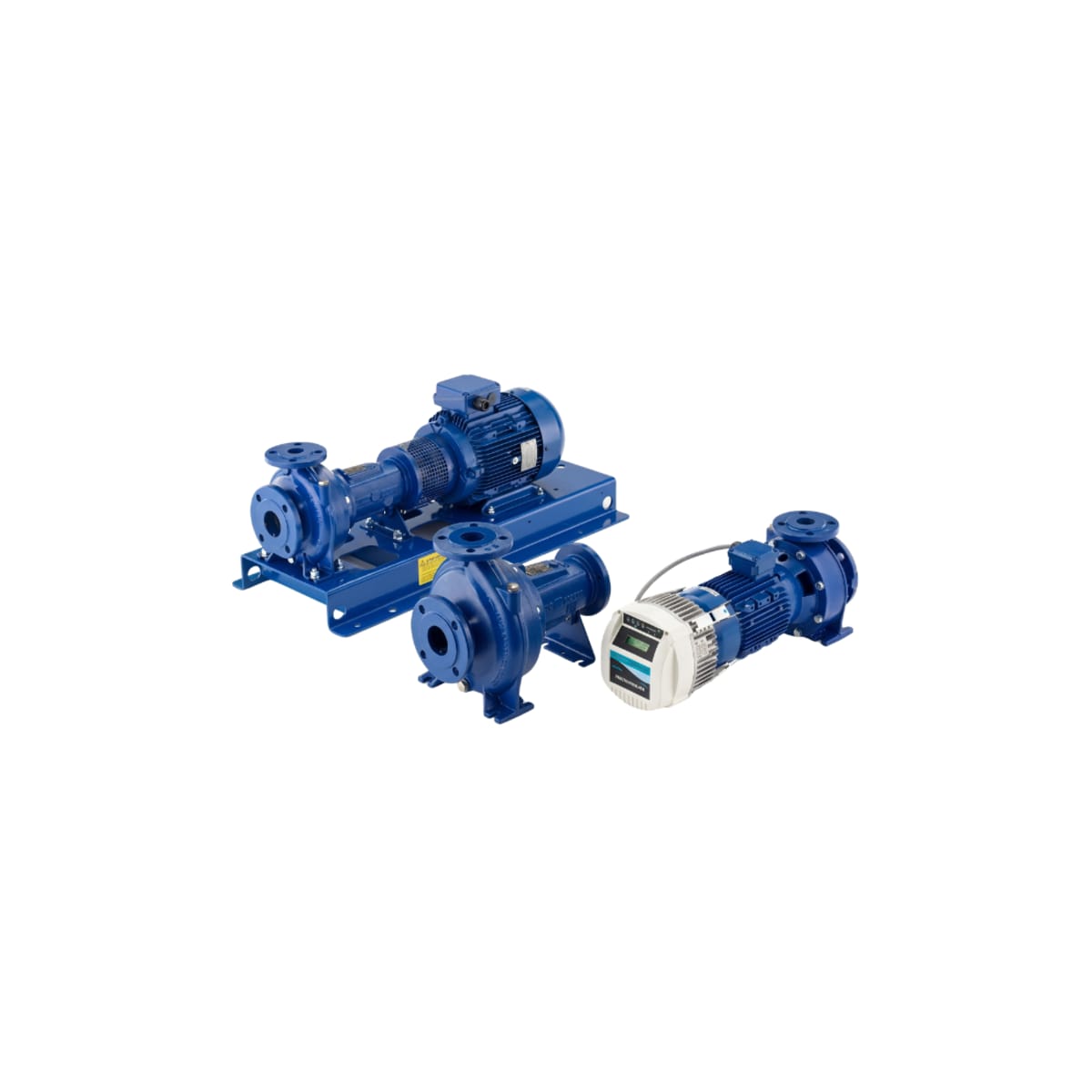

Lowara NSCS32 125/22 Stainless Steel End Suction Centrifugal Pump for Industrial Cooling with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Constructed for high-capacity liquid management, the Lowara NSCS32-125/22 provides uncompromising reliability for commercial water distribution networks. Its robust three-phase architecture is fully optimized for continuous fluid transfer across large facilities.
Delivering a maximum flow of approximately 576 L/Min and a maximum head of approximately 23.0 m, the unit is driven by a heavy-duty 2.2 kW / 415v motor. Liquid exchange is efficiently managed through a 50 mm inlet paired with a standard 32 mm outlet configuration.
The internal mechanics prioritize volumetric stability, featuring a perfectly balanced closed impeller that minimizes operational vibration. The precise passage shaping prevents recirculation zones, maximizing hydraulic transfer efficiency across the pump's entire operating curve.
Housed within a durable Cast Iron frame and utilizing a Fabricated Stainless Steel (AISI 316) impeller, it safely accommodates liquid temperatures reaching +120 °C. The stub shaft design integrates with standard asynchronous motors, fully protected by an IP55 enclosure.
FEATURES
- Heavy-duty stub shaft bracket configuration
- Fabricated Stainless Steel (AISI 316) internal construction
- Corrosion-resistant Cast Iron structural body
- Standardized three-phase TEFC motor design
- IP55 rating against moisture ingress
- High thermal capability up to +120 °C
- Engineered for highly stable continuous duty
SPECIFICATIONS
| Max Flow | 576 L/Min |
| Max Head | 23 m |
| Power | 2.2 kW / 415v |
| Rated Current | 4.61 Amps |
| Suitable For | Industrial Cooling and Pressure Boosting |
| Body Material | AISI 316 Stainless Steel |
| Liquid Temperature | '-25°C to +120°C |
| Inlet Size | 50 mm |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What electrical motor power specifications and supply voltage current feed power this flanged end-suction centrifugal pump?
Energized by commercial electrical feeds, the NSCS32-125/22 relies on an electric motor rated at 2.2 kW (3.0 HP) energized via 380–415 V, 50 Hz, three-phase drawing 7.90 / 4.56 A.
Regarding hydraulic thresholds, what maximum working pressure in bar and liquid temperature limits apply to this flanged end-suction centrifugal pump?
Rated under certified hydraulic pressure, the NSCS32-125-22 sustains a maximum working pressure boundary of 16 bar (PN 16) and operating temperatures from -25°C to +120°C.
Overcoming vertical elevation rise, what dynamic lift head applies to this flanged end-suction centrifugal pump?
Elevating across vertical pipe runs, the NSCS32 125 22 reaches a maximum dynamic elevation head of approximately 23 m across vertical runs.
For piping integration, what delivery flow volume and suction discharge port diameters are built into this flanged end-suction centrifugal pump?
Supplying across connected plumbing lines, the NSCS32_125_22 delivers a peak volumetric flow of approximately 576 L/Min via connected DN 50 suction and DN 32 discharge flanged ports.
What corrosion-resistant metallurgy and mechanical face seal materials are incorporated into this flanged end-suction centrifugal pump?
Constructed with alloy metallurgy components, the NSCS32-125/22 employs alloy construction of cast iron casing with stainless steel closed impellers with mechanical face seals to guard against chemical attack and corrosion.
