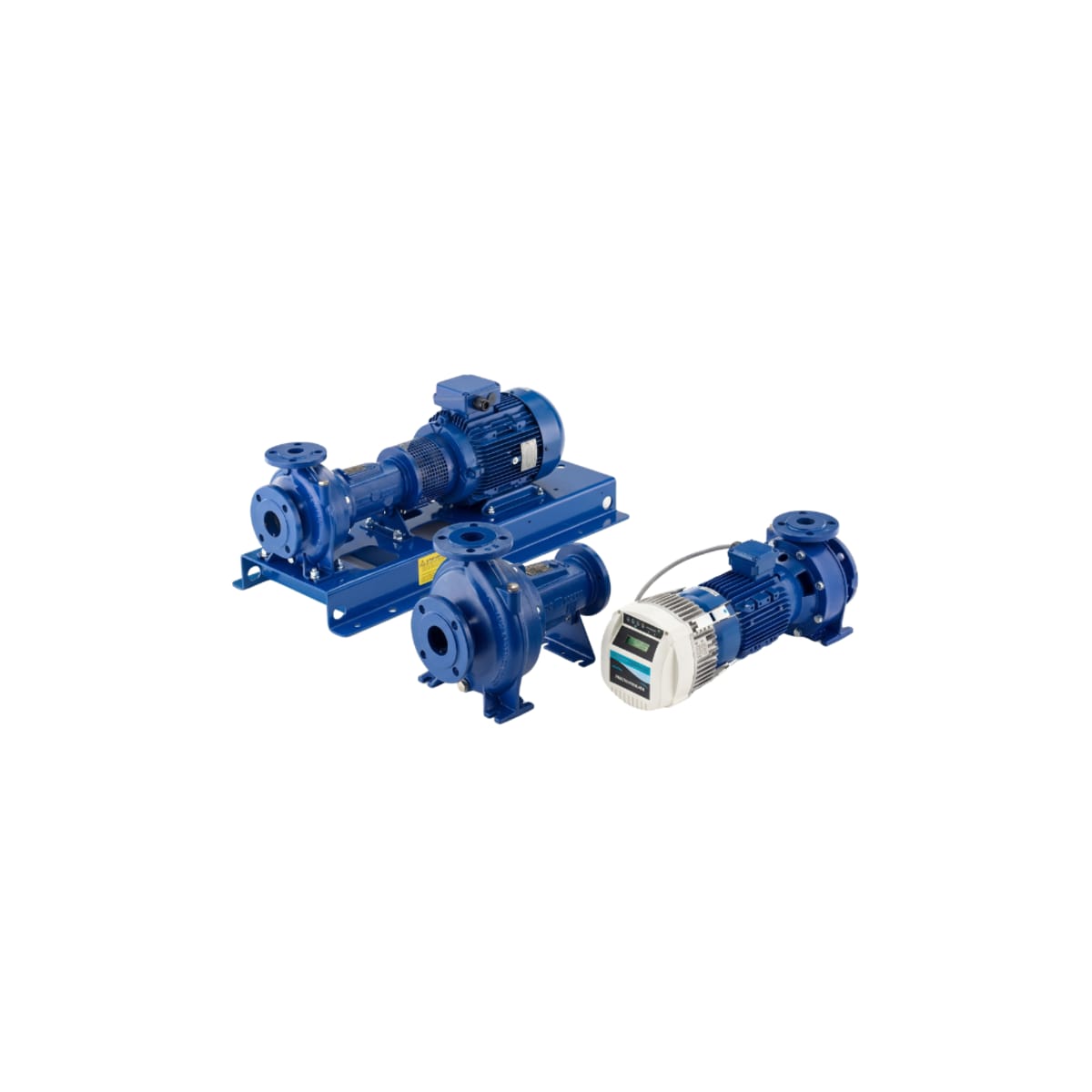

Lowara NSCS32 160/40 Stainless Steel Single Stage Centrifugal Pump for Fluid Transfer with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Constructed specifically for demanding industrial water supply networks, the Lowara NSCS32-160/40 facilitates continuous bulk fluid transfer. This heavy-duty system is tailored to handle high-capacity manufacturing plumbing without suffering from operational fatigue.
Driven by a powerful 4.0 kW / 415v three-phase motor, the unit produces an impressive maximum flow of approximately 576 L/Min and pushes a maximum head of approximately 35.0 m. The mechanical connections feature a standard 50 mm suction port and a 32 mm discharge.
The internal mechanics prioritize seamless hydraulic throughput, utilizing a carefully balanced impeller to minimize turbulence. This internal shaping dramatically reduces mechanical stress and guarantees a uniform fluid output even when system resistance increases.
Housed within a thick Cast Iron frame and employing a Fabricated Stainless Steel (AISI 316) impeller, it reliably handles extreme fluid temperatures peaking at +120 °C. The motor leverages a rigid stub shaft adapter, protected against moisture by an IP55 rating.
FEATURES- High-strength stub shaft adapter configuration
- Fabricated AISI 316 Stainless Steel internal impeller
- Resilient industrial Cast Iron pump housing
- Standard three-phase electrical setup
- IP55 moisture and dust protection rating
- Engineered for extreme +120 °C thermal capability
- Simplified back pull-out service access
SPECIFICATIONS
| Max Flow | 576 L/Min |
| Max Head | 35 m |
| Power | 4 kW / 415v |
| Rated Current | 7.57 Amps |
| Suitable For | Cooling Systems |
| Body Material | AISI 316 Stainless Steel |
| Liquid Temperature | '-25°C to +120°C |
| Inlet Size | 50 mm |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What construction metallurgy and mechanical seal materials prevent corrosive chemical attack in this flanged end-suction centrifugal pump?
Constructed for demanding fluid environments, the NSCS32-160/40 relies on alloy construction of cast iron casing with stainless steel closed impellers paired with mechanical face seals to withstand liquid corrosion.
How is this flanged end-suction centrifugal pump powered in terms of motor kilowatt rating and electrical supply voltage current?
Energized from dedicated power supplies, the NSCS32-160-40 features an electric motor rated at 4 kW (5.5 HP) powered by 380–415 V, 50 Hz, three-phase with a rating of 7.62 / 4.40 A.
Under demanding thermal conditions, what permissible fluid temperature range and pressure limit apply to this flanged end-suction centrifugal pump?
Rated across industrial piping systems, the NSCS32 160 40 maintains a maximum working pressure rating of 16 bar (PN 16) across fluid operating temperatures from -25°C to +120°C.
When pumping upward, what dynamic head and vertical push capability are generated by this flanged end-suction centrifugal pump?
Elevating through distribution piping lines, the NSCS32_160_40 develops a maximum dynamic elevation head of approximately 35 m to elevate water.
Across facility plumbing lines, what maximum flow volume and discharge diameter are sustained by this flanged end-suction centrifugal pump?
Supplying through designated connection lines, the NSCS32-160/40 provides a peak fluid flow rate of approximately 576 L/Min connecting via DN 50 suction and DN 32 discharge flanged ports.
