SKU: NSCS32-200/55

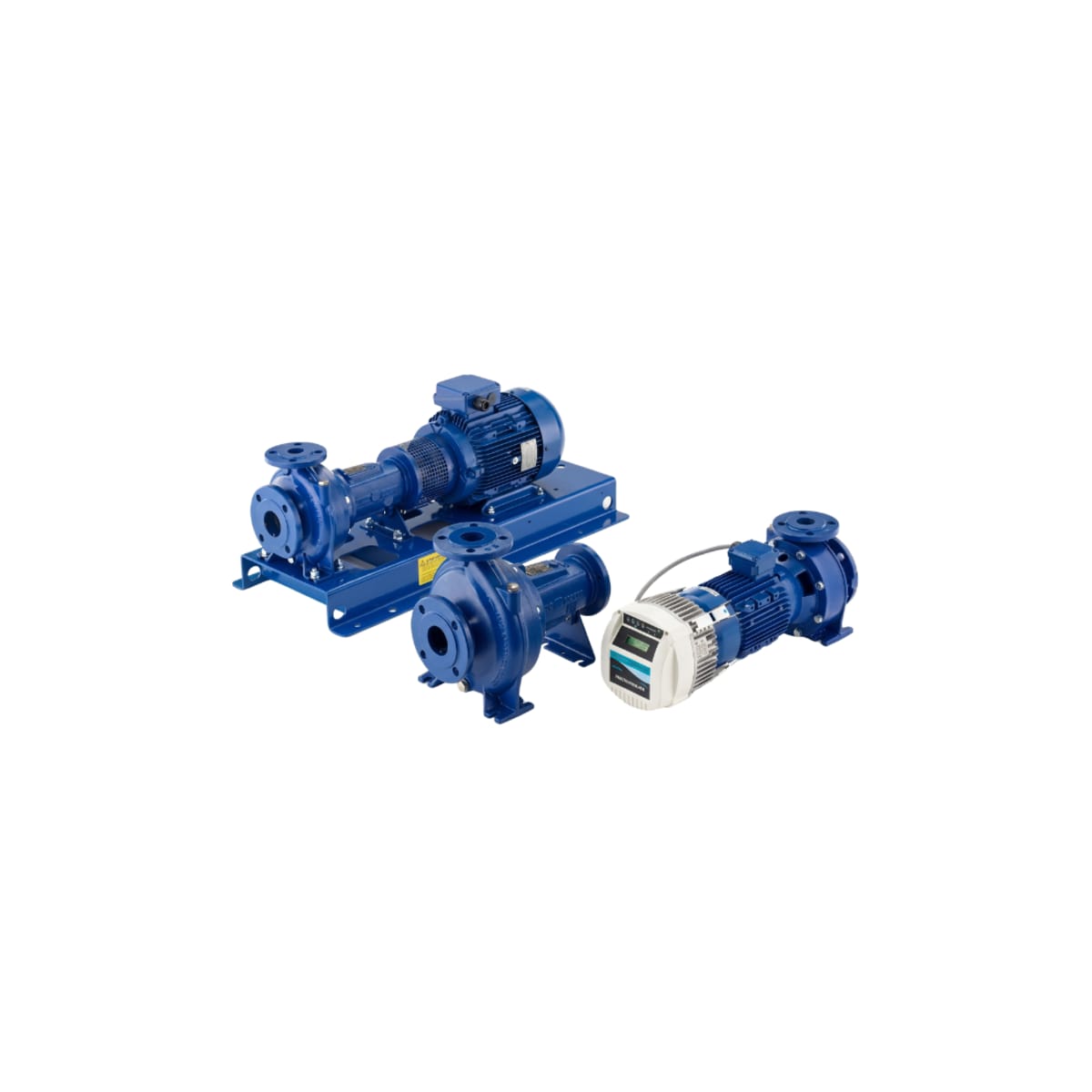

Lowara NSCS32 200/55 Stainless Steel Single Stage Centrifugal Pump for Fluid Networks with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Functioning as a central driver for demanding process handling applications, the Lowara NSCS32-200/55 provides exceptional fluid control across commercial manufacturing sites. The structural engineering is tailored to support relentless operational loads while maintaining absolute hydraulic stability.
Generating significant throughput, this unit achieves a maximum head of approximately 48.4 m and processes a maximum flow of approximately 474 L/Min. Electrical power is supplied via a heavy-duty 5.5 kW / 415v three-phase motor, while fluid transfers efficiently through a 50 mm inlet and a 32 mm outlet.
The advanced centrifugal architecture ensures highly balanced suction and discharge characteristics, preventing mechanical strain on downstream piping. By utilizing a finely machined volute path, it guarantees continuous pressure accumulation without introducing destructive internal cavitation.
Designed around a solid stub shaft coupling, it integrates a tough Cast Iron casing with an inherently corrosion-resistant Fabricated Stainless Steel (AISI 316) impeller. Ready for harsh environments, it processes fluids up to +120 °C and utilizes fully enclosed IP55 motor sealing.
FEATURES
- Rigidly aligned stub shaft coupling mechanics
- Highly durable Cast Iron exterior structural casing
- Fabricated AISI 316 Stainless Steel liquid handling
- Fully enclosed IP55 environmental protection class
- Designed for safe processing of +120 °C liquids
- Interchangeable standard mechanical seal architecture
- Low-vibration operational chassis for continuous duty
SPECIFICATIONS
| Max Flow | 474 L/Min |
| Max Head | 48.4 m |
| Power | 5.5 kW / 415v |
| Rated Current | 10.7 Amps |
| Suitable For | Industrial Process and Cooling |
| Body Material | AISI 316 Stainless Steel |
| Liquid Temperature | '-25°C to +120°C |
| Inlet Size | 50 mm |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Regarding fluid circulation, what peak flow volume and suction discharge port sizes does this flanged end-suction centrifugal pump provide?
Transferring across connected plumbing lines, the NSCS32-200/55 achieves a peak delivery flow rate of approximately 474 L/Min across DN 50 suction and DN 32 discharge flanged ports.
To defend against fluid corrosion, what alloy metallurgy and mechanical seal components protect this flanged end-suction centrifugal pump?
Manufactured with alloy metallurgy components, the NSCS32-200-55 incorporates alloy construction of cast iron casing with stainless steel closed impellers and mechanical face seals to resist corrosive fluid attack.
Which electrical motor power specifications and line voltage current feed power this flanged end-suction centrifugal pump?
Driven by commercial electrical feeds, the NSCS32 200 55 draws 10.5 / 6.05 A through an electric motor rated at 5.5 kW (7.5 HP) operating on 380–415 V, 50 Hz, three-phase.
How much internal pressure in bar and what fluid operating temperature range does this flanged end-suction centrifugal pump accommodate?
Certified under certified hydraulic pressure, the NSCS32_200_55 operates with a maximum working pressure capability of 16 bar (PN 16) across liquid temperatures from -25°C to +120°C.
How does this flanged end-suction centrifugal pump perform regarding vertical lift head capability?
Delivering across vertical pipe runs, the NSCS32-200/55 delivers a maximum dynamic head rating of approximately 48.4 m to elevate fluid.
