SKU: NSCS32-250/150

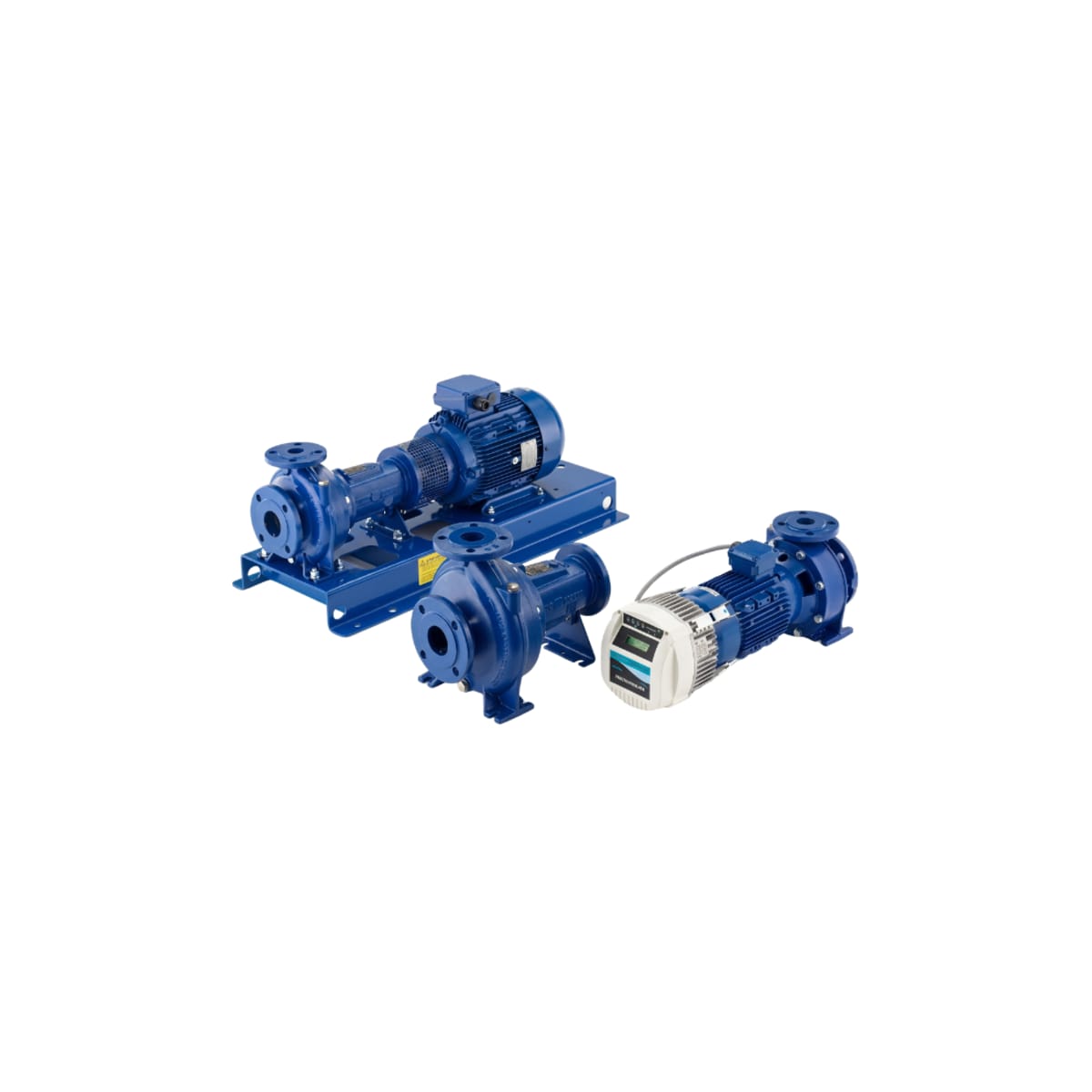

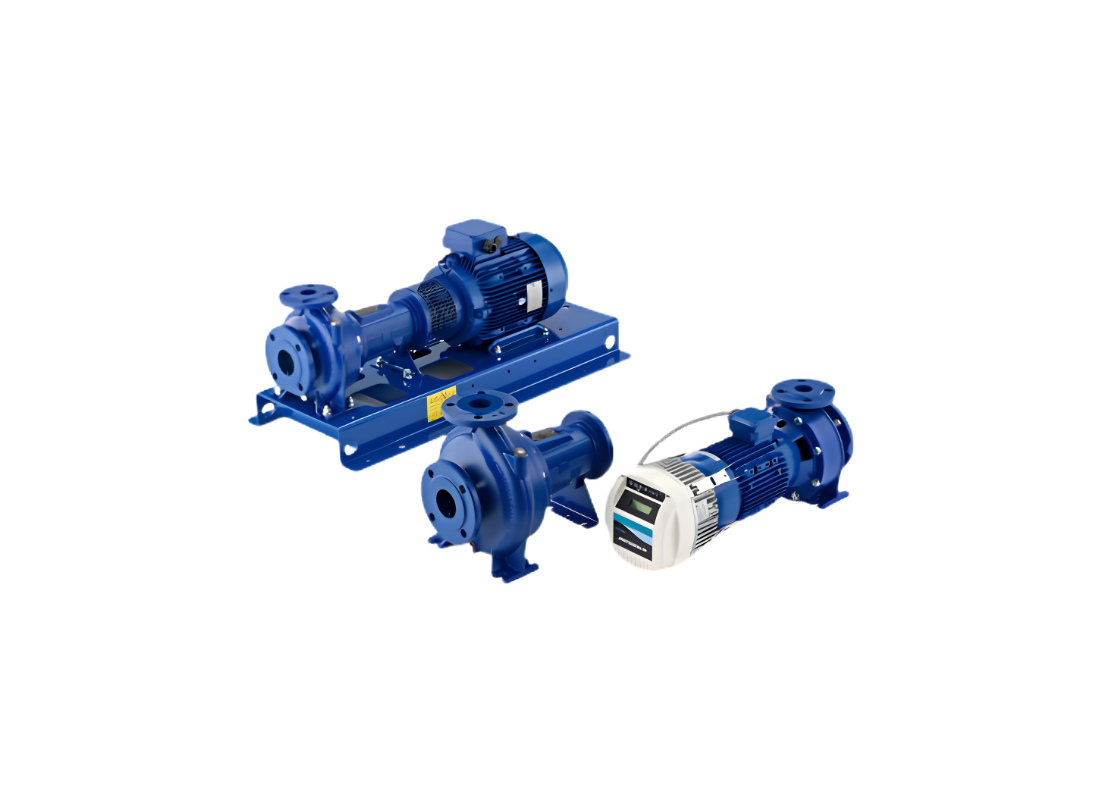

Lowara NSCS32 250/150 Stainless Steel Single Stage Centrifugal Pump for Transfer Circuits with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Functioning as a primary mover for demanding liquid handling networks, the Lowara NSCS32-250/150 excels in heavy duty transfer applications. Its rugged structural footprint ensures that massive fluid volumes are transported without encountering mechanical fatigue or operational downtime.
Drawing electrical power from a massive 15.0 kW / 415v three-phase motor, the system pushes a formidable maximum head of approximately 91 m alongside a maximum flow of approximately 630 L/Min. Integration is managed seamlessly via standard metric 50 mm inlet and 32 mm outlet connections.
Advanced fluid dynamics are tightly regulated by a precision-machined internal passageway that minimizes hydraulic friction during high-capacity operation. The closed impeller effectively mitigates flow separation, creating an exceptionally stable output characteristic under severe stress.
Mechanically secured with a highly rigid stub shaft mounting arrangement, the framework utilizes a tough Cast Iron structural body paired with a Fabricated Stainless Steel (AISI 316) impeller. Fully shielded by IP55 motor sealing, the pump is rated to easily process liquids up to +120 °C.
FEATURES
- Heavy-duty stub shaft motor adapter coupling
- Corrosion-resistant AISI 316 Stainless Steel internals
- Robust industrial Cast Iron pump housing exterior
- High-efficiency standardized three-phase motor setup
- IP55 moisture and dust ingress protection rating
- Designed for extreme +120 °C thermal fluid processing
- Simplified maintenance via back pull-out architecture
SPECIFICATIONS
| Max Flow | 630 L/Min |
| Max Head | 91 m |
| Power | 15 kW / 415v |
| Rated Current | 26.1 Amps |
| Suitable For | Industrial Process Handling |
| Body Material | AISI 316 Stainless Steel |
| Liquid Temperature | '-25°C to +120°C |
| Inlet Size | 50 mm |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Under prolonged delivery, what maximum flow volume and piping connection sizes are supported by this flanged end-suction centrifugal pump?
Transferring through system pipework runs, the NSCS32-250/150 maintains a maximum delivery flow volume of approximately 630 L/Min across DN 50 suction and DN 32 discharge flanged ports.
Regarding corrosion mitigation, what alloy materials and mechanical seal design protect this flanged end-suction centrifugal pump?
Manufactured for harsh corrosive applications, the NSCS32-250-150 incorporates alloy metallurgy of cast iron casing with stainless steel closed impellers and precision mechanical seals to guard against corrosion.
In commercial power installations, what electrical supply voltage and motor power rating energize this flanged end-suction centrifugal pump?
Driven from facility electrical circuits, the NSCS32 250 150 utilizes an electric motor rated at 15 kW (20.0 HP) operating on 380–415 V, 50 Hz, three-phase drawing 26.6 / 15.3 A.
What maximum working pressure limit in bar and allowable fluid temperature range are built into this flanged end-suction centrifugal pump?
Certified across facility pressure circuits, the NSCS32_250_150 accommodates a maximum working pressure limit of 16 bar (PN 16) with permissible fluid temperatures from -25°C to +120°C.
How high can fluid be elevated upward by this flanged end-suction centrifugal pump?
Delivering through plant water circuits, the NSCS32-250/150 achieves a peak dynamic head of approximately 91 m to propel liquid upward.
