SKU: NSCS40-160/75

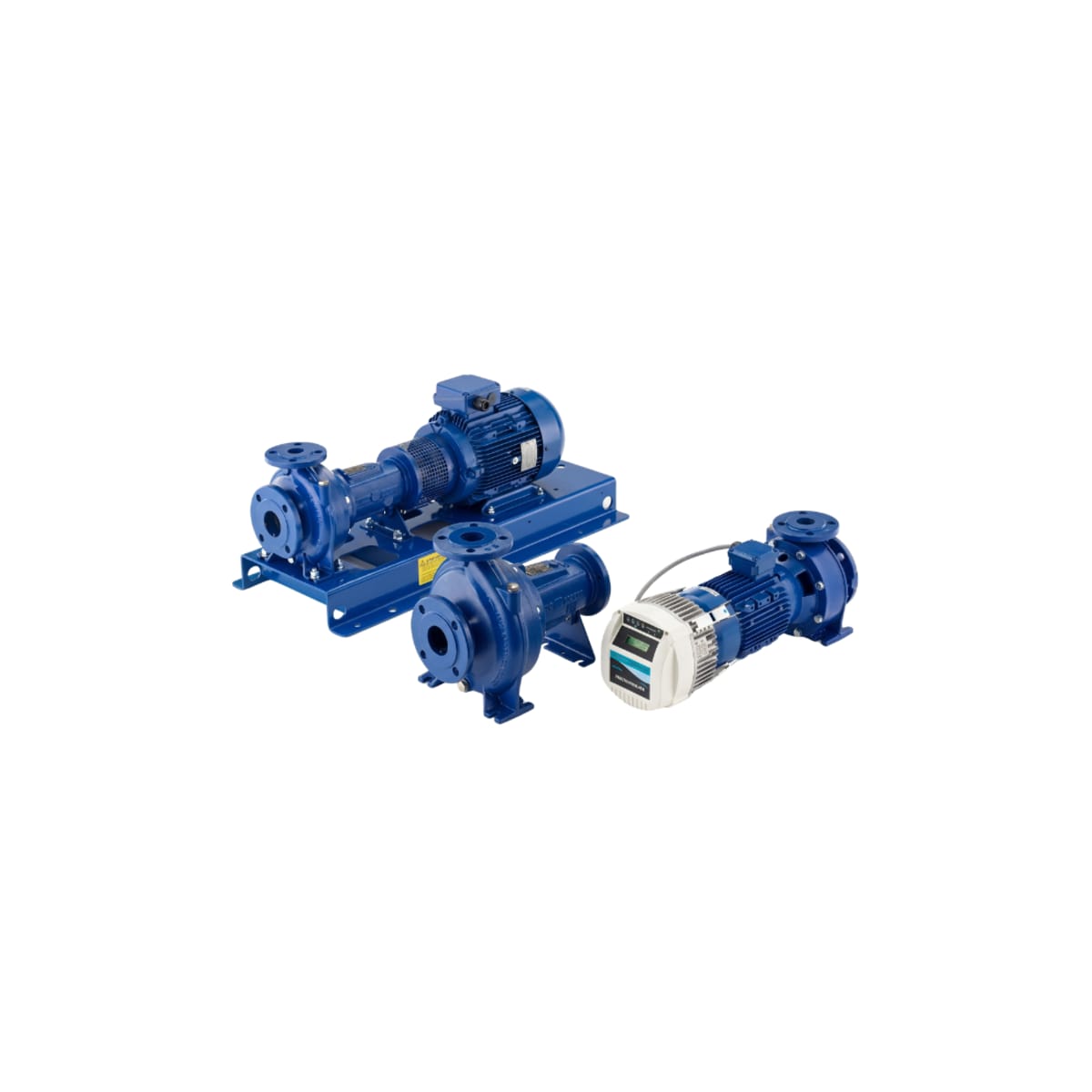

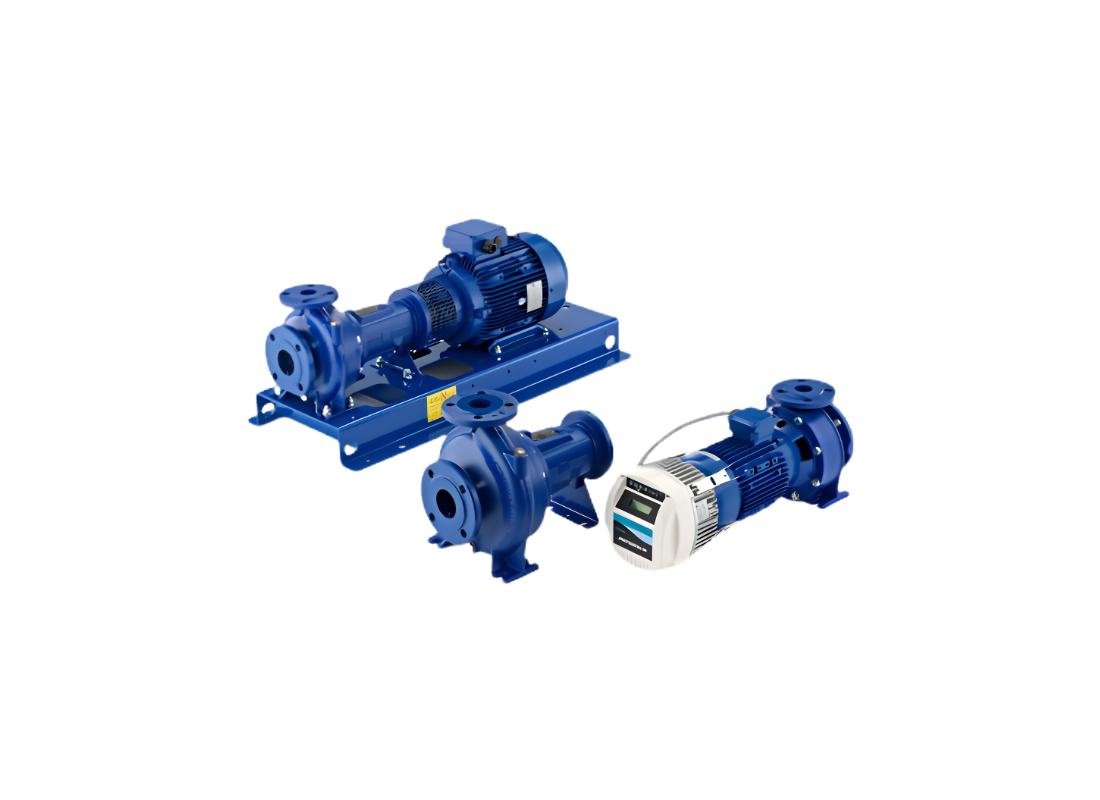

Lowara NSCS40 160/75 Stainless Steel High Capacity Centrifugal Pump for HVAC Networks with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Engineered to sustain high-pressure commercial networks, the Lowara NSCS40-160/75 supplies an uninterrupted volume of fluid for critical pressure boosting applications. Its heavy-duty framework guarantees consistent high-velocity output essential for complex distribution grids.
Driven by a potent 7.5 kW / 415v three-phase electrical motor, this system pushes a formidable maximum head of approximately 41.3 m and a maximum flow of approximately 1014 L/Min. System integration relies on standardized metric connections, using a 65 mm suction port and a 40 mm discharge port.
Fluid dynamics are tightly regulated by a precision-crafted internal passageway that maximizes volumetric output efficiency. The dynamically balanced closed impeller directly mitigates flow separation, ensuring a constant and reliable pressure curve even under significant systemic resistance.
Mechanically secured with a highly rigid stub shaft mounting arrangement, the unit relies on a resilient Cast Iron body and a Fabricated Stainless Steel (AISI 316) impeller. Protected by an IP55 enclosure, it is rated to safely accommodate thermal liquid extremes reaching +120 °C.
FEATURES
- Heavy-duty rigid stub shaft alignment
- Corrosion-resistant AISI 316 Stainless Steel impeller
- Robust industrial Cast Iron pump housing exterior
- Standardized high-efficiency three-phase motor setup
- IP55 moisture and dust ingress protection rating
- Rated for extreme +120 °C thermal fluid capabilities
- Simplified back pull-out maintenance configuration
SPECIFICATIONS
| Max Flow | 1014 L/Min |
| Max Head | 41.3 m |
| Power | 7.5 kW / 415v |
| Rated Current | 14.2 Amps |
| Suitable For | HVAC and Industrial Process |
| Body Material | AISI 316 Stainless Steel |
| Liquid Temperature | '-25°C to +120°C |
| Inlet Size | 65 mm |
| Outlet Size | 40 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Under elevated fluid temperatures, what operating pressure limit and temperature range are sustained by this flanged end-suction centrifugal pump?
Sustaining across facility pressure circuits, the NSCS40-160/75 delivers a maximum working pressure capability of 16 bar (PN 16) across fluid temperatures from -25°C to +120°C.
What maximum vertical elevation head can this flanged end-suction centrifugal pump produce under load?
Lifting through plant water circuits, the NSCS40-160-75 sustains a peak dynamic head of approximately 41.3 m to propel clean liquid upward.
What maximum flow capacity and discharge outlet pipe diameter are built into this flanged end-suction centrifugal pump?
Outputting through system pipework runs, the NSCS40 160 75 maintains a maximum discharge flow rate of approximately 1014 L/Min utilizing DN 65 suction and DN 40 discharge flanged ports.
What corrosion defense is provided by the alloy metallurgy and mechanical seal materials in this flanged end-suction centrifugal pump?
Machined for harsh corrosive applications, the NSCS40_160_75 ensures alloy metallurgy protection with cast iron casing with stainless steel closed impellers and precision mechanical face seals against corrosion.
In utility electrical panels, what motor power rating and operating voltage feed are specified for this flanged end-suction centrifugal pump?
Operated from facility electrical circuits, the NSCS40-160/75 runs on an electric motor rated at 7.5 kW (10.0 HP) supplied by 380–415 V, 50 Hz, three-phase at a current of 14.1 / 8.16 A.
