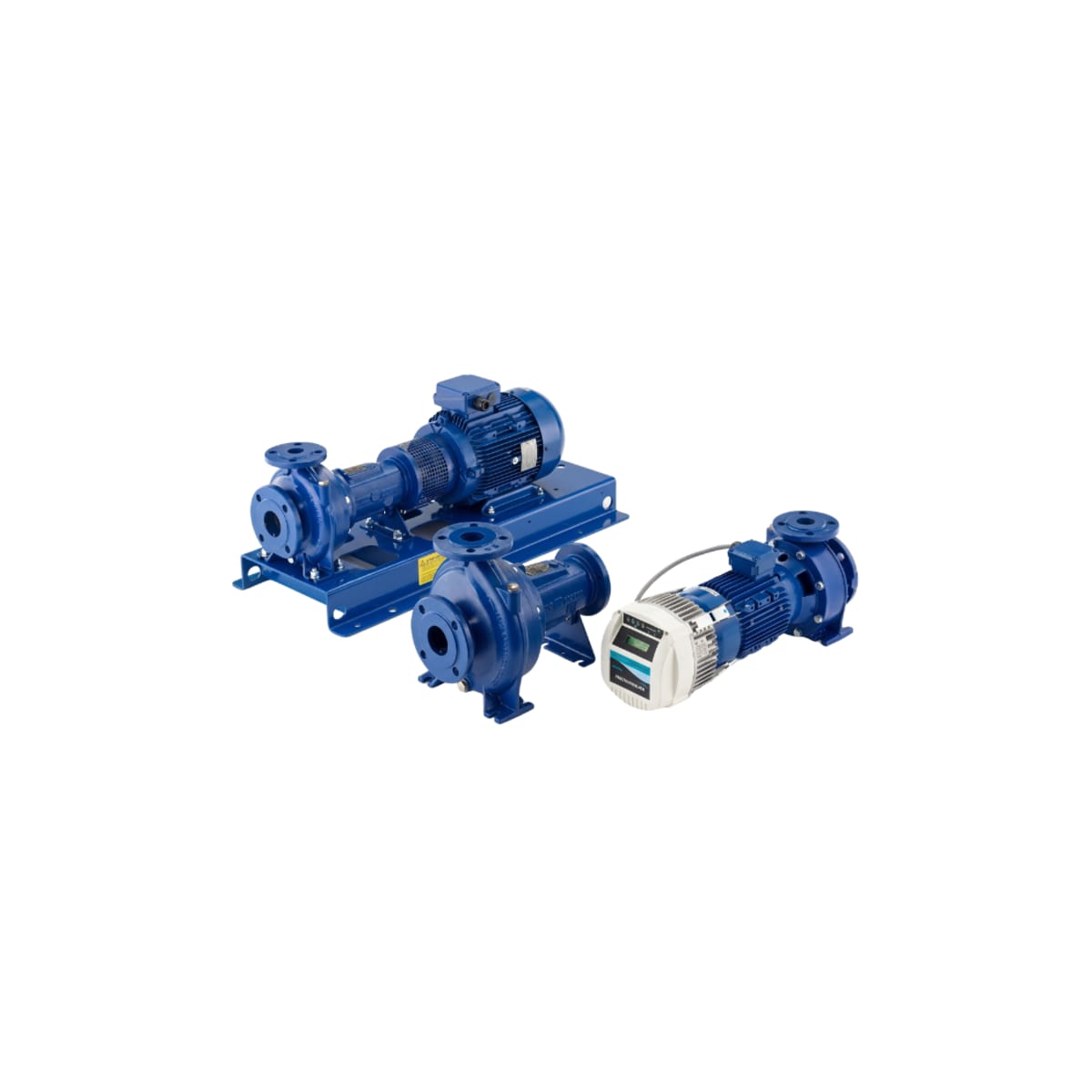

Lowara NSCS40 200/75 Stainless Steel Single Stage Centrifugal Pump for Facility Circulation with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Operating effectively within rigorous industrial circulation systems, the Lowara NSCS40-200/75 facilitates high-volume fluid transportation. This heavy-duty unit guarantees consistent liquid handling across expansive manufacturing facilities requiring absolute reliability and minimal mechanical fatigue.
Powered by a potent 7.5 kW / 415v three-phase motor, the pump establishes an impressive maximum flow of approximately 846 L/Min while reaching a maximum head of approximately 45.0 m. The unit is plumbed to manage commercial volumes efficiently, using a 65 mm inlet and a 40 mm discharge connection.
The sophisticated internal volute precisely controls high-velocity hydraulic transfer without introducing flow separation. By actively minimizing internal mechanical friction, the centrifugal mechanism sustains a balanced head pressure curve, preserving optimal efficiency throughout the entire duty cycle.
Constructed around a specialized stub shaft motor connection, the assembly pairs a thick Cast Iron volute with a high-grade Fabricated Stainless Steel (AISI 316) impeller. Complete with an IP55 protection rating and an engineered mechanical seal, the pump safely accommodates liquid temperatures up to +120 °C.
FEATURES
- Specialized rigid stub shaft coupling mechanics
- Highly resilient Cast Iron outer pumping volute
- Corrosion-resistant AISI 316 Stainless Steel impeller
- Powerful high-efficiency three-phase electric motor
- IP55 environmental protection rating against moisture
- Engineered to process harsh liquid temperatures up to +120 °C
- Accessible mechanical sealing chamber for maintenance
SPECIFICATIONS
| Max Flow | 846 L/Min |
| Max Head | 45.0 m |
| Power | 7.5 kW / 415v |
| Rated Current | 14.2 Amps |
| Suitable For | HVAC and Industrial Process |
| Body Material | AISI 316 Stainless Steel |
| Liquid Temperature | '-25°C to +120°C |
| Inlet Size | 65 mm |
| Outlet Size | 40 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
In facility water lines, what peak liquid flow rate and discharge pipe sizes does this flanged end-suction centrifugal pump provide?
Outputting into plant fluid networks, the NSCS40-200/75 maintains a maximum delivery flow volume of approximately 846 L/Min across DN 65 suction and DN 40 discharge flanged ports.
Which alloy construction materials and mechanical seal specifications prevent corrosion in this flanged end-suction centrifugal pump?
Machined against corrosive liquid exposure, the NSCS40-200-75 incorporates alloy metallurgy of cast iron casing with stainless steel closed impellers and precision mechanical seals to guard against corrosion.
For proper power installation, what line voltage current and motor kilowatt rating are required for this flanged end-suction centrifugal pump?
Operated under steady electrical current, the NSCS40 200 75 utilizes an electric motor rated at 7.5 kW (10.0 HP) operating on 380–415 V, 50 Hz, three-phase drawing 14.1 / 8.16 A.
Regarding pressure containment, what maximum working pressure rating and temperature limits apply to this flanged end-suction centrifugal pump?
Sustaining within certified pressure boundaries, the NSCS40_200_75 accommodates a maximum working pressure limit of 16 bar (PN 16) with permissible fluid temperatures from -25°C to +120°C.
Across distribution loops, what peak dynamic head does this flanged end-suction centrifugal pump achieve?
Lifting in commercial piping networks, the NSCS40-200/75 achieves a peak dynamic head of approximately 45 m to propel liquid upward.
