SKU: 1SC6/05CG20

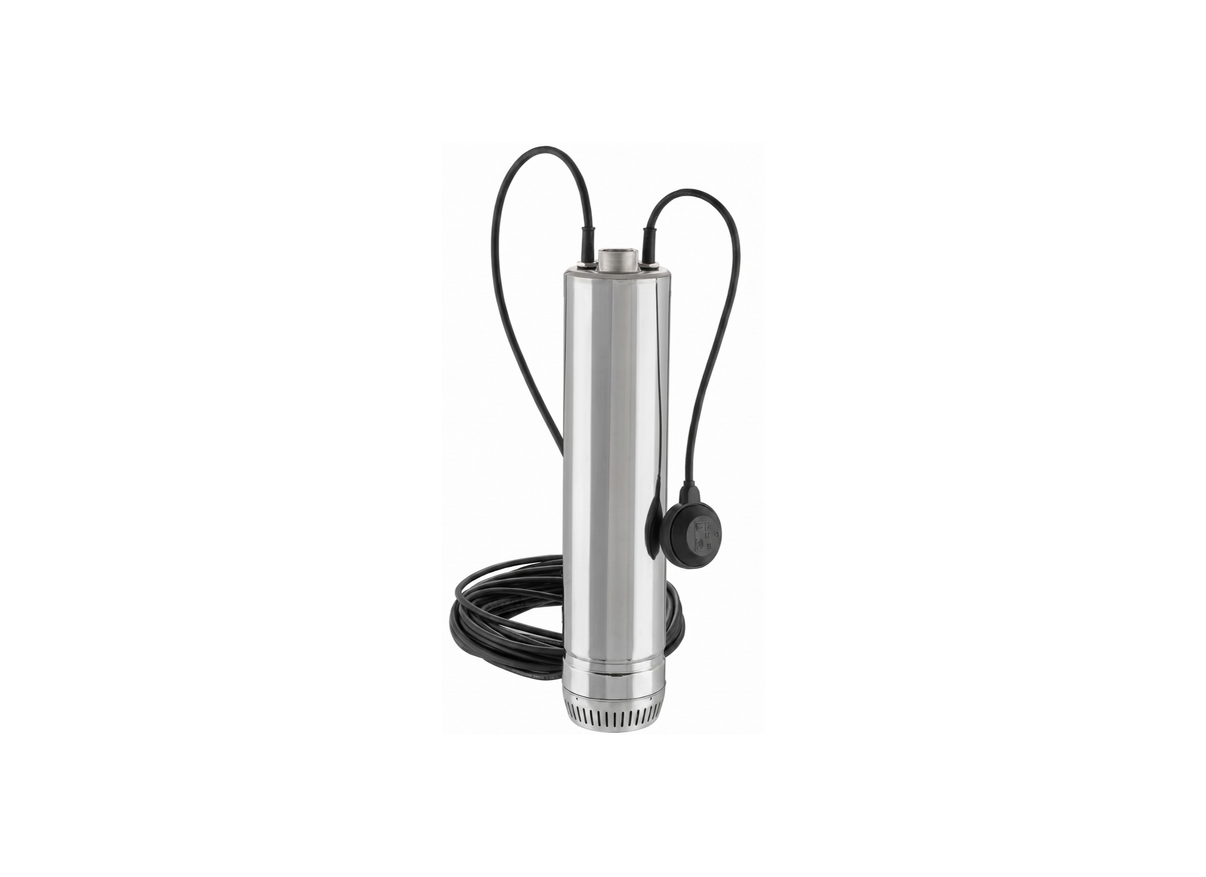

Lowara Scuba 1SC6/05CG20 Stainless Steel 6-Stage Submersible Pump with Tecnopolymer Impeller and Float Switch
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Unattended water supply systems benefit from the integrated float switch of the Lowara 1SC6/05CG20. This multi-stage submersible pump automatically operates from boreholes, tanks and reservoirs with its 6-inch design and 32 mm discharge connection.
A 0.55 kW 240V single-phase motor draws 4.26 Amps and delivers a maximum head of 55.6 metres and a flow of 40 L/min through a 32 mm outlet. The float switch provides automatic start and stop based on water level, eliminating the need for external control equipment.
Weighing 13.4 kg, the pump handles suspended sand up to 25 g/m³ and passes solids up to 1 mm. AISI 304 stainless steel construction with technopolymer impellers and stainless steel diffusers provides corrosion resistance and reliable hydraulic performance.
Class F insulation and a double mechanical seal with oil chamber protect the motor, with a silicon carbide external face resisting abrasion. The pump is rated for continuous operation at depths up to 17 metres. A 20 metre cable, capacitor and automatic reset thermal overload protection are included.
FEATURES
- Integrated float switch for automatic level control without external sensors
- Maximum head of 55.6 metres and flow of 40 L/min for residential water supply
- AISI 304 stainless steel construction for corrosion resistance in borehole environments
- Multi-stage hydraulic design with technopolymer impellers and stainless steel diffusers
- Handles suspended sand up to 25 g/m³ and solids up to 1 mm
- Double mechanical seal with silicon carbide external face for abrasion resistance
- Class F motor insulation and dry motor design with oil chamber protection
- Suitable for vertical or horizontal installation in 6-inch boreholes
- 20 metre H07RN8-F power cable with built-in capacitor and thermal overload protection
- Balanced lifting eye and decentered discharge manifold for easy installation
SPECIFICATIONS
| Max Flow | 40 L/Min |
| Max Head | 55.6 m |
| Power | 0.55 kW / 240v |
| Rated Current | 4.26 Amps |
| Suitable For | Deep Well Water Supply |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Does this multi-stage pump operate automatically based on water levels?
Yes, an integrated float switch on the 1SC6/05CG20 provides automatic start and stop level control without external sensors.
What are the head and flow ratings for this unattended supply pump?
The 1SC6-05CG20 delivers a maximum head of 55.6 metres and a flow rate of 40 L/Min.
How does the oil-chamber mechanical seal prevent motor damage from sand?
An external silicon carbide seal face with an oil chamber shields the 1SC6 05CG20 motor from abrasive suspended sand.
What are the running current and power specifications of this single-phase motor?
Powered by a 0.55 kW single-phase motor on 240 V, the 1SC6_05CG20 draws 4.26 Amps.
What accessories are built into the power cable for motor protection?
The 20-metre cable of the 1SC6/05CG20 includes an integrated capacitor and automatic reset thermal overload protection.
