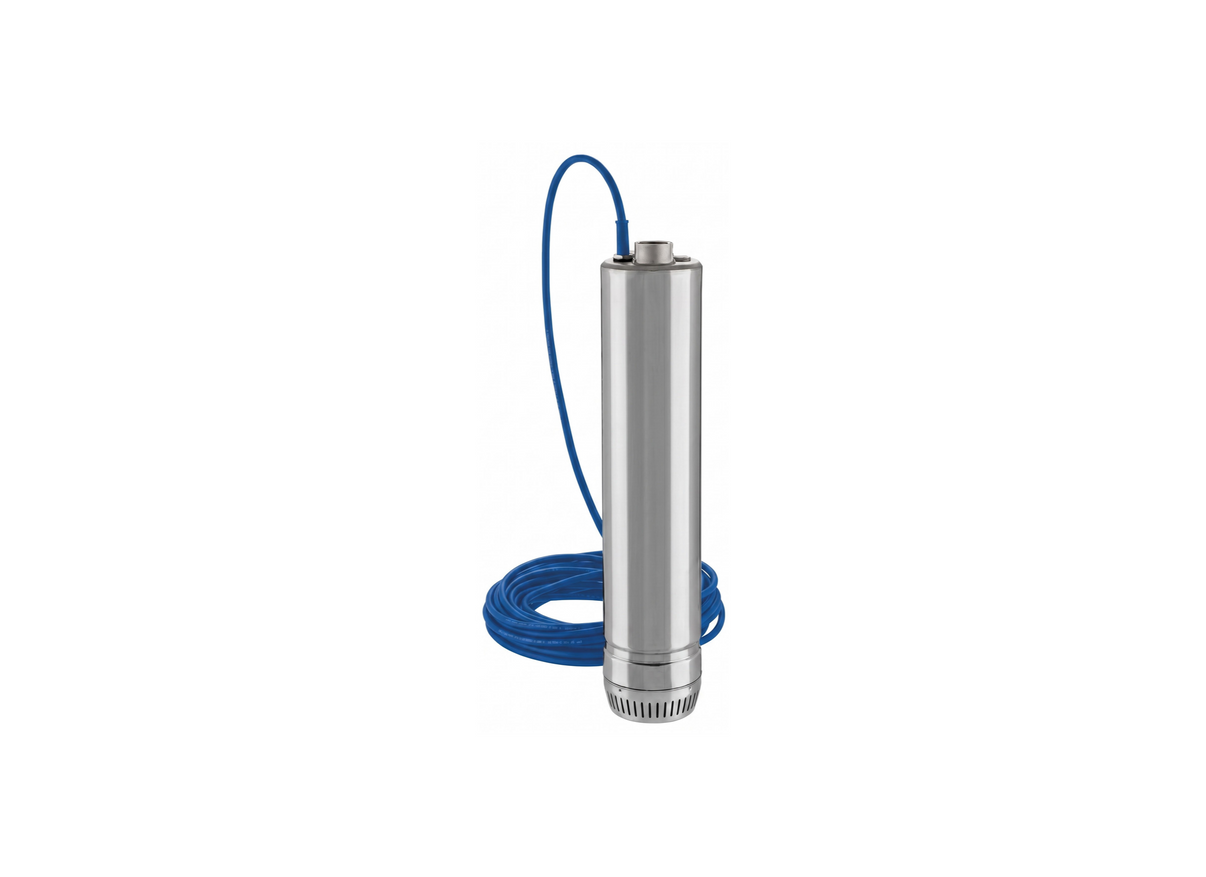

Lowara Scuba 1SC6/05TL20 Stainless Steel 6-Stage Three-Phase Submersible Pump with Tecnopolymer PPO Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Continuous-duty commercial and agricultural installations require the three-phase power of the Lowara 1SC6/05TL20. This multi-stage submersible pump handles clean water supply from boreholes, tanks and reservoirs with its 6-inch design and 32 mm discharge connection.
A 0.55 kW 415V three-phase motor draws 1.62 Amps and delivers a maximum head of 52 metres and a flow of 40 L/min through a 32 mm outlet. External overload protection is required.
Weighing 13.9 kg, the pump handles suspended sand up to 25 g/m³ and passes solids up to 1 mm. AISI 304 stainless steel construction with technopolymer impellers and stainless steel diffusers provides corrosion resistance and reliable hydraulic performance.
Class F insulation and a double mechanical seal with oil chamber protect the motor, with a silicon carbide external face resisting abrasion. The pump is rated for continuous operation at depths up to 17 metres. A 20 metre four-core cable is included for connection to an external control panel.
FEATURES
- Three-phase 415V motor for continuous-duty commercial and agricultural installations
- Maximum head of 52 metres and flow of 40 L/min for continuous-duty applications
- AISI 304 stainless steel construction for corrosion resistance in borehole environments
- Multi-stage hydraulic design with technopolymer impellers and stainless steel diffusers
- Handles suspended sand up to 25 g/m³ and solids up to 1 mm
- Double mechanical seal with silicon carbide external face for abrasion resistance
- Class F motor insulation and dry motor design with oil chamber protection
- Suitable for vertical or horizontal installation in 6-inch boreholes
- 20 metre H07RN8-F four-core cable for external control panel connection
- Balanced lifting eye and decentered discharge manifold for easy installation
SPECIFICATIONS
| Max Flow | 40 L/Min |
| Max Head | 52 m |
| Power | 0.55 kW / 415v |
| Rated Current | 1.62 Amps |
| Suitable For | Deep Well Water Supply |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What electrical supply is required for this continuous-duty multi-stage pump?
The 1SC6/05TL20 is driven by a 415 V three-phase motor rated at 0.55 kW that draws 1.62 Amps.
What type of cable is supplied for connecting to an external control panel?
A 20-metre H07RN8-F four-core cable is included with the 1SC6-05TL20 for connection to an external control panel.
What are the maximum pressure head and flow volume ratings?
Delivering reliable continuous duty, the 1SC6 05TL20 reaches a maximum head of 52 metres with a flow rate of 40 L/min.
What size solids and sand concentrations can pass through this pump?
The hydraulic stages of the 1SC6_05TL20 process suspended sand up to 25 g/m³ and pass solids up to 1 mm.
Does this three-phase motor require external overload protection?
Yes, the three-phase motor on the 1SC6/05TL20 requires external overload protection to ensure safe operation.
