SKU: 1SC7/07CG20

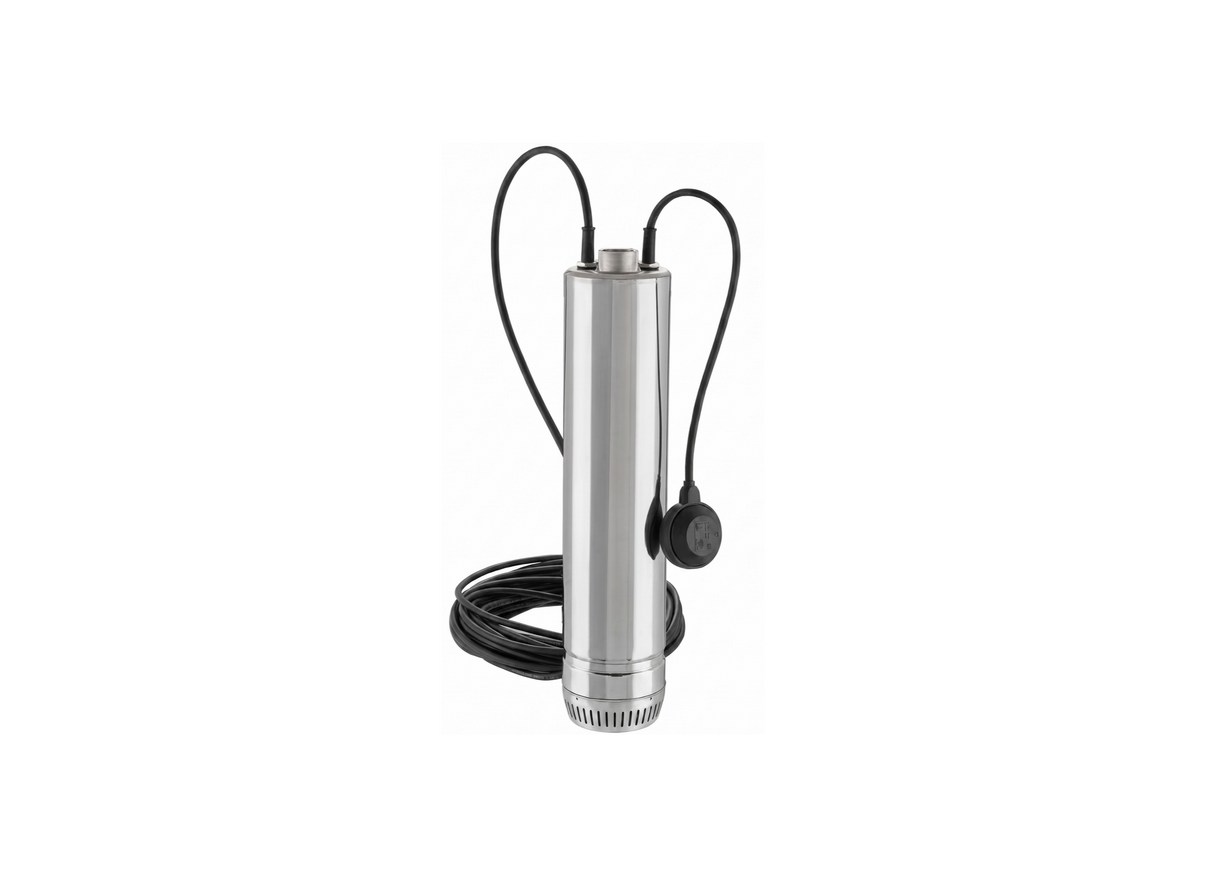

Lowara Scuba 1SC7/07CG20 Stainless Steel 7-Stage Submersible Pump with Tecnopolymer Impeller and Float Switch
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Rainwater systems and tank supply with unattended operation are ideal for the Lowara 1SC7/07CG20. This multi-stage submersible pump features an integrated float switch for automatic start and stop from boreholes, tanks and reservoirs with its 6-inch design.
Weighing 16 kg, the pump handles suspended sand up to 25 g/m³ and passes solids up to 1 mm. A 0.75 kW 240V single-phase motor draws 5.26 Amps and delivers a maximum head of 63.6 metres and a flow of 40 L/min through a 32 mm outlet.
AISI 304 stainless steel construction with technopolymer impellers and stainless steel diffusers provides corrosion resistance and reliable hydraulic performance. The integrated float switch automatically starts and stops the pump based on water level.
Class F insulation and a double mechanical seal with oil chamber protect the motor, with a silicon carbide external face resisting abrasion. The pump is rated for continuous operation at depths up to 17 metres. A 20 metre cable, capacitor and automatic reset thermal overload protection are included.
FEATURES
- Integrated float switch for automatic level control without external sensors
- Maximum head of 63.6 metres and flow of 40 L/min for residential pressure applications
- AISI 304 stainless steel construction for corrosion resistance in submerged installations
- Multi-stage hydraulic design with technopolymer impellers and stainless steel diffusers
- Handles suspended sand up to 25 g/m³ and solids up to 1 mm
- Double mechanical seal with silicon carbide external face for abrasion resistance
- Class F motor insulation and dry motor design with oil chamber protection
- Designed for 6-inch boreholes with vertical or horizontal installation options
- 20 metre H07RN8-F power cable with built-in capacitor and thermal overload protection
- Balanced lifting eye for safe installation and maintenance access
SPECIFICATIONS
| Max Flow | 40 L/Min |
| Max Head | 63.6 m |
| Power | 0.75 kW / 240v |
| Rated Current | 5.26 Amps |
| Suitable For | Domestic Water Pressure Boosting |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does this rainwater tank pump provide unattended operation?
An integrated float switch on the 1SC7/07CG20 automatically starts and stops the pump depending on the tank water level.
What is the maximum head capability of this automatic submersible pump?
The 1SC7-07CG20 achieves a maximum head of 63.6 metres with flow capability reaching 40 L/Min.
What is the total unit weight of this 6-inch pump?
Weighing 16 kg, the 1SC7 07CG20 is built with a 128 mm diameter casing to fit standard 6-inch wells and tanks.
How much electrical current does this 0.75 kW single-phase motor draw?
Connected to a 240 V single-phase supply, the 0.75 kW motor in the 1SC7_07CG20 draws 5.26 Amps.
What size solids and sand levels can this automatic pump handle?
The 1SC7/07CG20 safely handles suspended sand concentrations up to 25 g/m3 and passes solids up to 1 mm.
