SKU: 1SC7/07CL20

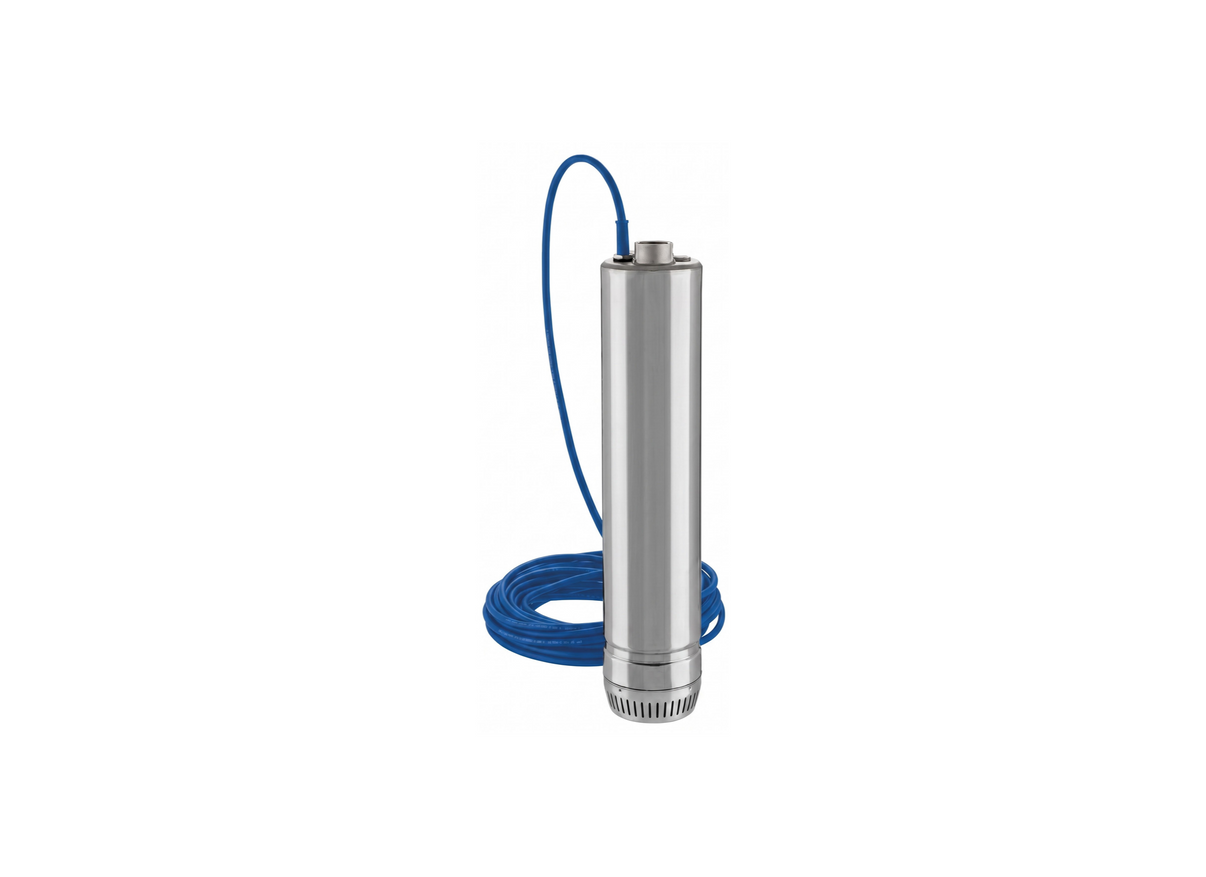

Lowara Scuba 1SC7/07CL20 Stainless Steel 7-Stage Submersible Pump with Tecnopolymer PPO Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Homes and irrigation systems benefit from the reliable water pressure delivered by the Lowara 1SC7/07CL20, a multi-stage submersible pump suited to boreholes, rainwater tanks and reservoirs. Its 128 mm diameter allows installation in standard 6-inch wells.
Weighing 16 kg, the pump handles sand concentrations up to 25 g/m³ and passes solids up to 1 mm. A 0.75 kW 240V single-phase motor draws 5.26 Amps and delivers a maximum head of 63.6 metres at 40 L/min through a 32 mm discharge connection.
AISI 304 stainless steel construction provides corrosion resistance for long-term submerged operation. The multi-stage hydraulic section with technopolymer impellers and stainless steel diffusers ensures reliable performance for high-pressure residential water delivery.
Class F insulation and a double mechanical seal with oil chamber protect the motor, with a silicon carbide external face resisting abrasion. The motor is cooled by the surrounding water, allowing continuous operation at depths up to 17 metres. A 20 metre cable with plug-in connection, capacitor and thermal overload protection are included.
FEATURES
- Maximum head of 63.6 metres at 40 L/min for residential pressure applications
- AISI 304 stainless steel construction for corrosion resistance in submerged installations
- Multi-stage hydraulic design with technopolymer impellers and stainless steel diffusers
- Handles suspended sand up to 25 g/m³ and solids up to 1 mm
- Double mechanical seal with silicon carbide external face for abrasion resistance
- Class F insulation and dry motor with oil chamber for reliable operation
- Designed for 6-inch boreholes with vertical or horizontal installation options
- 20 metre H07RN8-F power cable with built-in capacitor and thermal overload protection
- Balanced lifting eye for safe installation and maintenance access
- Quiet operation suitable for domestic and light commercial use
SPECIFICATIONS
| Max Flow | 40 L/Min |
| Max Head | 63.6 m |
| Power | 0.75 kW / 240v |
| Rated Current | 5.26 Amps |
| Suitable For | Domestic Water Pressure Boosting |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What is the maximum head produced by this multi-stage domestic pressure pump?
The 1SC7/07CL20 achieves a maximum head of 63.6 metres while delivering a steady flow of 40 L/Min.
What size suspended solids and sand concentration can this unit pass?
The hydraulic section of the 1SC7-07CL20 handles suspended sand up to 25 g/m3 and passes spherical solids up to 1 mm.
What is the total weight of this 6-inch submersible pump?
The 1SC7 07CL20 has an overall weight of 16 kg and features a 128 mm diameter to fit standard 6-inch boreholes.
How does this pump assist with safe lowering and retrieval during maintenance?
A balanced lifting eye on the 1SC7_07CL20 facilitates safe lifting, lowering, and maintenance access.
What electrical current does this 0.75 kW single-phase motor draw?
Operating on a 240 V single-phase line, the 0.75 kW motor in the 1SC7/07CL20 draws 5.26 Amps.
