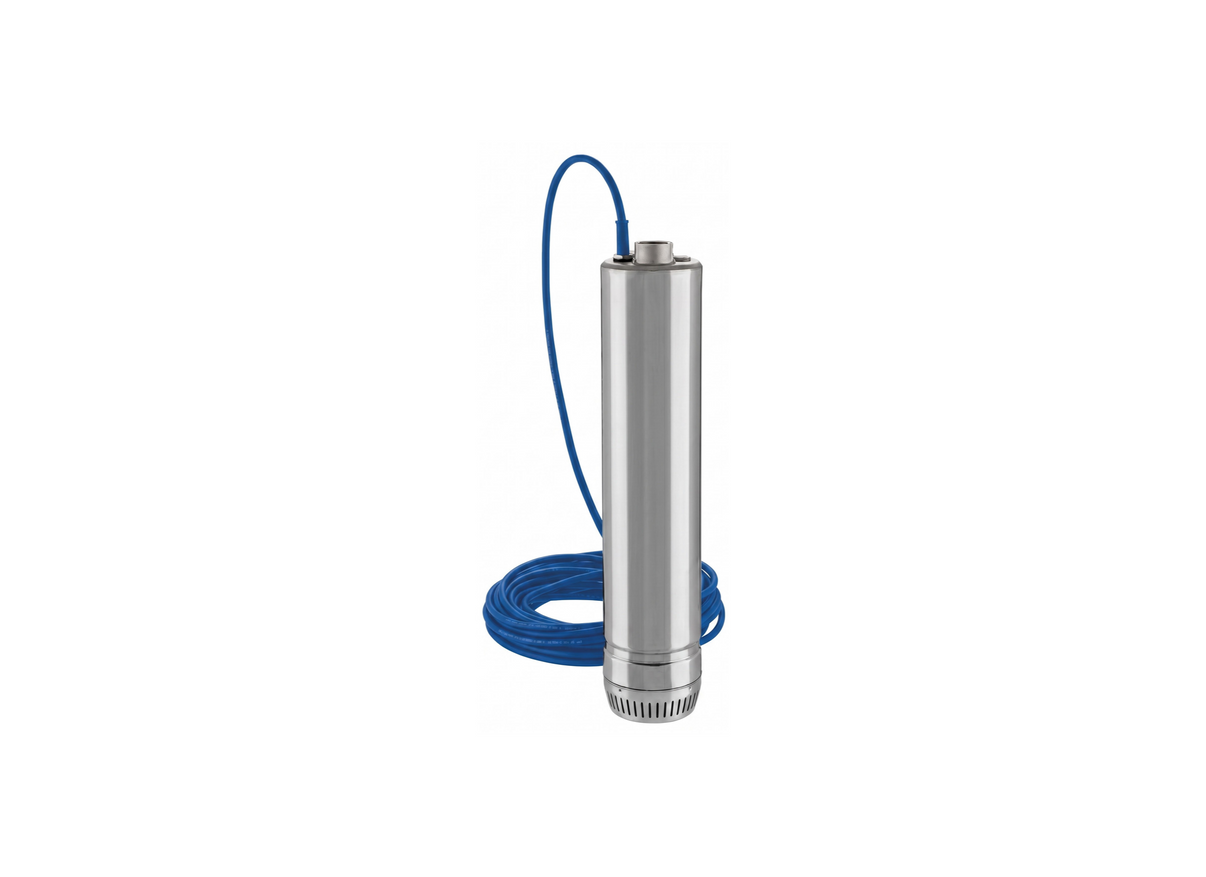

Lowara Scuba 1SC9/09CL20 Stainless Steel 9-Stage Submersible Pump with Tecnopolymer PPO Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
High discharge pressure applications such as domestic boosting, rainwater harvesting and irrigation are where the Lowara 1SC9/09CL20 multi-stage submersible pump excels. Its 6-inch design and 32 mm discharge connection provide reliable supply from boreholes, tanks and reservoirs.
Weighing 16.5 kg, the pump is rated for water temperatures up to 40°C. A 0.9 kW 240V single-phase motor draws 5.68 Amps and delivers a maximum head of 80.6 metres at 40 L/min through a 32 mm discharge outlet.
Class F insulation and a double mechanical seal with oil chamber protect the motor, with the external silicon carbide face resisting abrasion from sand. The pump is rated for continuous operation at depths up to 17 metres.
AISI 304 stainless steel construction and a dry motor design with oil chamber provide long-term corrosion resistance and protection against sand ingress. The hydraulic section with technopolymer impellers and stainless steel diffusers handles solids up to 1 mm and sand concentrations of 25 g/m³. A 20 metre cable, capacitor and automatic reset thermal overload protection are included.
FEATURES
- Maximum head of 80.6 metres for deep-well and high-pressure applications
- AISI 304 stainless steel construction for corrosion resistance in borehole environments
- Multi-stage hydraulic design with technopolymer impellers and stainless steel diffusers
- Handles suspended sand up to 25 g/m³ and solids up to 1 mm
- Double mechanical seal with silicon carbide external face for abrasion resistance
- Class F motor insulation and dry motor design with oil chamber protection
- Suitable for vertical or horizontal installation in 6-inch boreholes
- 20 metre H07RN8-F power cable with built-in capacitor and thermal overload protection
- Balanced lifting eye and decentered discharge manifold for easy installation
- Quiet operation ideal for residential and light commercial use
SPECIFICATIONS
| Max Flow | 40 L/Min |
| Max Head | 80.6 m |
| Power | 0.9 kW / 240v |
| Rated Current | 5.68 Amps |
| Suitable For | Rainwater Harvesting Systems |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What is the maximum discharge pressure head for this deep-well booster pump?
Delivering elevated discharge pressure, the 1SC9/09CL20 produces a maximum head of 80.6 metres at 40 L/Min.
What is the maximum liquid temperature this submersible pump can endure?
The 1SC9-09CL20 is rated to safely handle liquid temperatures up to 40°C in continuous operation.
How is the motor cooled during continuous submerged operation?
Surrounding water continuously cools the dry motor of the 1SC9 09CL20, allowing continuous duty down to 17 metres depth.
What discharge port size connects this pump to household plumbing?
A standard 32 mm discharge outlet on the 1SC9_09CL20 provides straightforward connection to household and irrigation pipes.
Does this unit include automatic thermal protection for the motor?
Yes, the 1SC9/09CL20 includes a built-in capacitor and automatic reset thermal overload protection within its 20-metre cable assembly.
