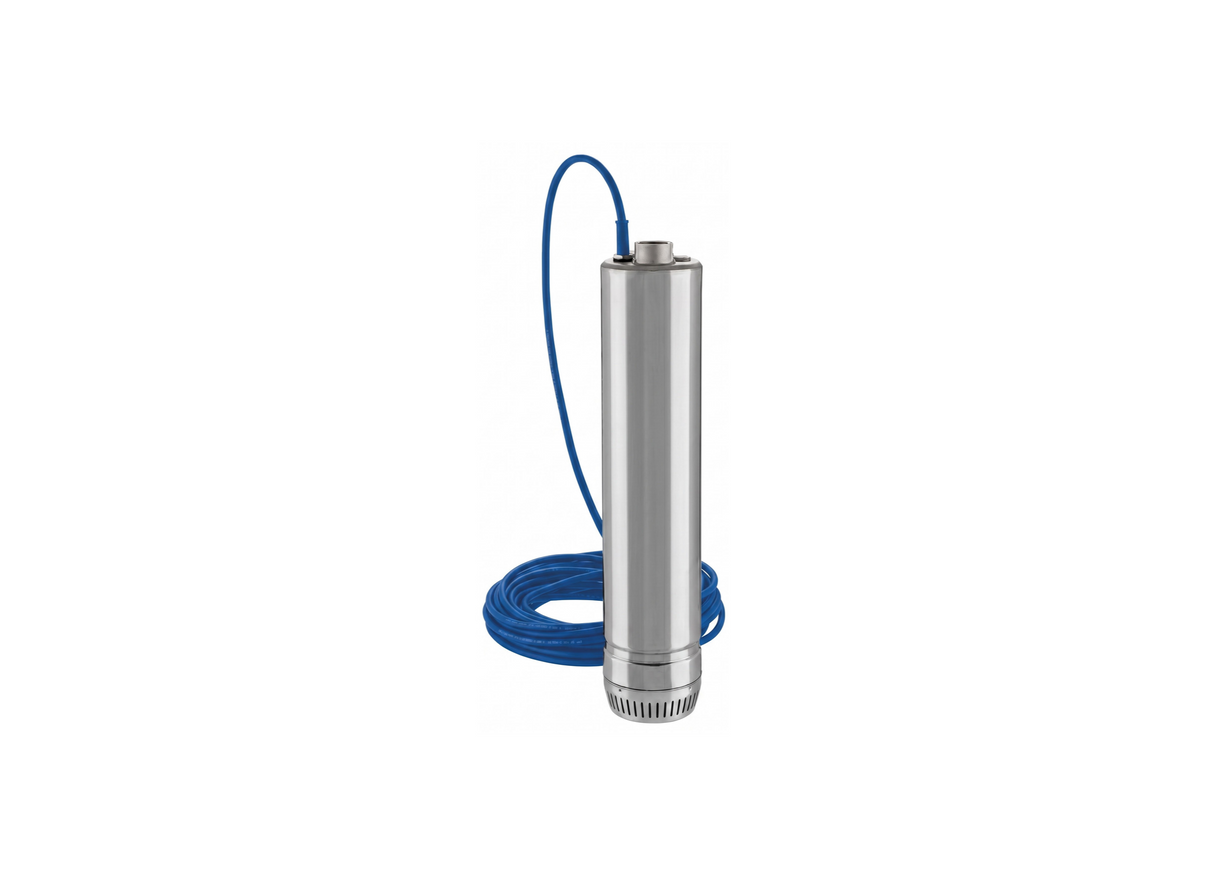

Lowara Scuba 3SC4/05TL20 Stainless Steel 4-Stage Three-Phase Submersible Pump with Tecnopolymer PPO Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Continuous-duty irrigation and water supply applications with three-phase power are handled by the Lowara 3SC4/05TL20. This multi-stage submersible pump is suitable for commercial and agricultural water transfer from boreholes, tanks and reservoirs with its 6-inch design.
Weighing 14 kg, the pump handles suspended sand up to 25 g/m³ and passes solids up to 2 mm. A 0.55 kW 415V three-phase motor draws 1.55 Amps and delivers a maximum head of 42.6 metres and a flow of 70 L/min through a 32 mm outlet.
AISI 304 stainless steel construction with technopolymer impellers and stainless steel diffusers provides corrosion resistance and reliable hydraulic performance. Three-phase power provides efficient operation for continuous-duty applications with external overload protection required.
Class F insulation and a double mechanical seal with oil chamber protect the motor, with a silicon carbide external face resisting abrasion. The pump is rated for continuous operation at depths up to 17 metres. A 20 metre four-core cable is included for connection to an external control panel.
FEATURES
- Three-phase 415V motor for continuous-duty commercial and agricultural installations
- Maximum head of 42.6 metres and flow of 70 L/min for irrigation applications
- AISI 304 stainless steel construction for corrosion resistance in borehole environments
- Multi-stage hydraulic design with technopolymer impellers and stainless steel diffusers
- Handles suspended sand up to 25 g/m³ and solids up to 2 mm
- Double mechanical seal with silicon carbide external face for abrasion resistance
- Class F motor insulation and dry motor design with oil chamber protection
- Suitable for vertical or horizontal installation in 6-inch boreholes
- 20 metre H07RN8-F four-core cable for external control panel connection
- Balanced lifting eye and decentered discharge manifold for easy installation
SPECIFICATIONS
| Max Flow | 70 L/Min |
| Max Head | 42.6 m |
| Power | 0.55 kW / 415v |
| Rated Current | 1.55 Amps |
| Suitable For | Sprinkler Irrigation Systems |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What are the flow and pressure head outputs of this irrigation pump?
The 3SC4/05TL20 delivers a maximum head of 42.6 metres with a delivery volume of 70 L/min.
What is the current draw of this 0.55 kW three-phase motor?
Connected to a 415 V three-phase line, the 0.55 kW motor of the 3SC4-05TL20 draws 1.55 Amps.
What size suspended particles can pass safely through the impellers?
Internal clearances in the 3SC4 05TL20 allow spherical solids up to 2 mm and sand concentrations up to 25 g/m³ to pass freely.
What discharge connection size connects this pump to distribution pipework?
A standard 32 mm discharge outlet on the 3SC4_05TL20 provides straightforward connection to distribution piping.
What cable is included for wiring to a three-phase control panel?
The 3SC4/05TL20 is supplied with a 20-metre H07RN8-F four-core cable for wiring into an external control panel.
