SKU: 3SC5/07CG20

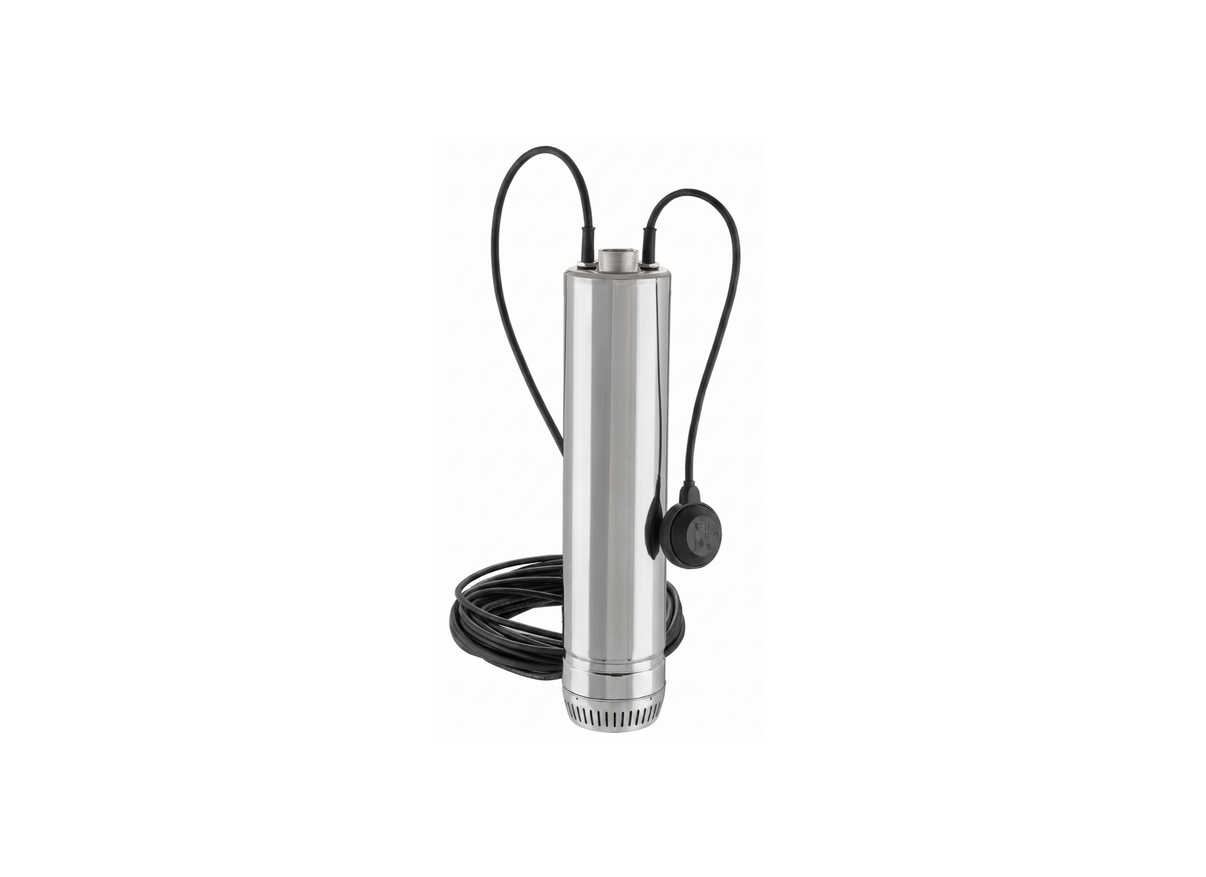

Lowara Scuba 3SC5/07CG20 Stainless Steel 5-Stage Submersible Pump with Tecnopolymer Impeller and Float Switch
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Automatic water supply from boreholes, tanks and reservoirs is delivered by the Lowara 3SC5/07CG20. This multi-stage submersible pump features an integrated float switch for residential pressure boosting, irrigation and rainwater harvesting where unattended operation is required.
A 0.75 kW 240V single-phase motor draws 4.80 Amps and delivers a maximum head of 51 metres and a flow of 70 L/min through a 32 mm outlet. The float switch provides automatic operation based on water level, eliminating the need for external control equipment.
Weighing 15 kg, the pump handles suspended sand up to 25 g/m³ and passes solids up to 2 mm. AISI 304 stainless steel construction with technopolymer impellers and stainless steel diffusers provides corrosion resistance and reliable hydraulic performance.
Class F insulation and a double mechanical seal with oil chamber protect the motor, with a silicon carbide external face resisting abrasion. The pump is rated for continuous operation at depths up to 17 metres. A 20 metre cable, capacitor and automatic reset thermal overload protection are included.
FEATURES
- Integrated float switch for automatic level control without external sensors
- Maximum head of 51 metres and flow of 70 L/min for residential and irrigation use
- AISI 304 stainless steel construction for corrosion resistance in submerged installations
- Multi-stage hydraulic design with technopolymer impellers and stainless steel diffusers
- Handles suspended sand up to 25 g/m³ and solids up to 2 mm
- Double mechanical seal with silicon carbide external face for abrasion resistance
- Class F motor insulation and dry motor design with oil chamber protection
- Designed for 6-inch boreholes with vertical or horizontal installation options
- 20 metre H07RN8-F power cable with built-in capacitor and thermal overload protection
- Balanced lifting eye for safe installation and maintenance access
SPECIFICATIONS
| Max Flow | 70 L/Min |
| Max Head | 51 m |
| Power | 0.75 kW / 240v |
| Rated Current | 4.80 Amps |
| Suitable For | Clean Water Transfer |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What maximum head does this automatic pressure-boosting pump achieve?
The 3SC5/07CG20 produces a maximum head of 51 metres with a flow rate reaching up to 70 L/Min.
Does this pump require separate control panels to start and stop automatically?
The built-in float switch of the 3SC5-07CG20 provides automatic level-based control without external control panels.
What is the weight and casing diameter of this multi-stage unit?
Weighing 15 kg, the 3SC5 07CG20 features a 128 mm diameter casing designed for standard 6-inch boreholes.
What are the electrical power consumption and current specifications?
Powered by a 0.75 kW single-phase motor on 240 V, the 3SC5_07CG20 draws 4.80 Amps.
What length of waterproof cable comes standard with this pump?
A 20-metre H07RN8-F power cable with built-in thermal overload protection is supplied standard with the 3SC5/07CG20.
