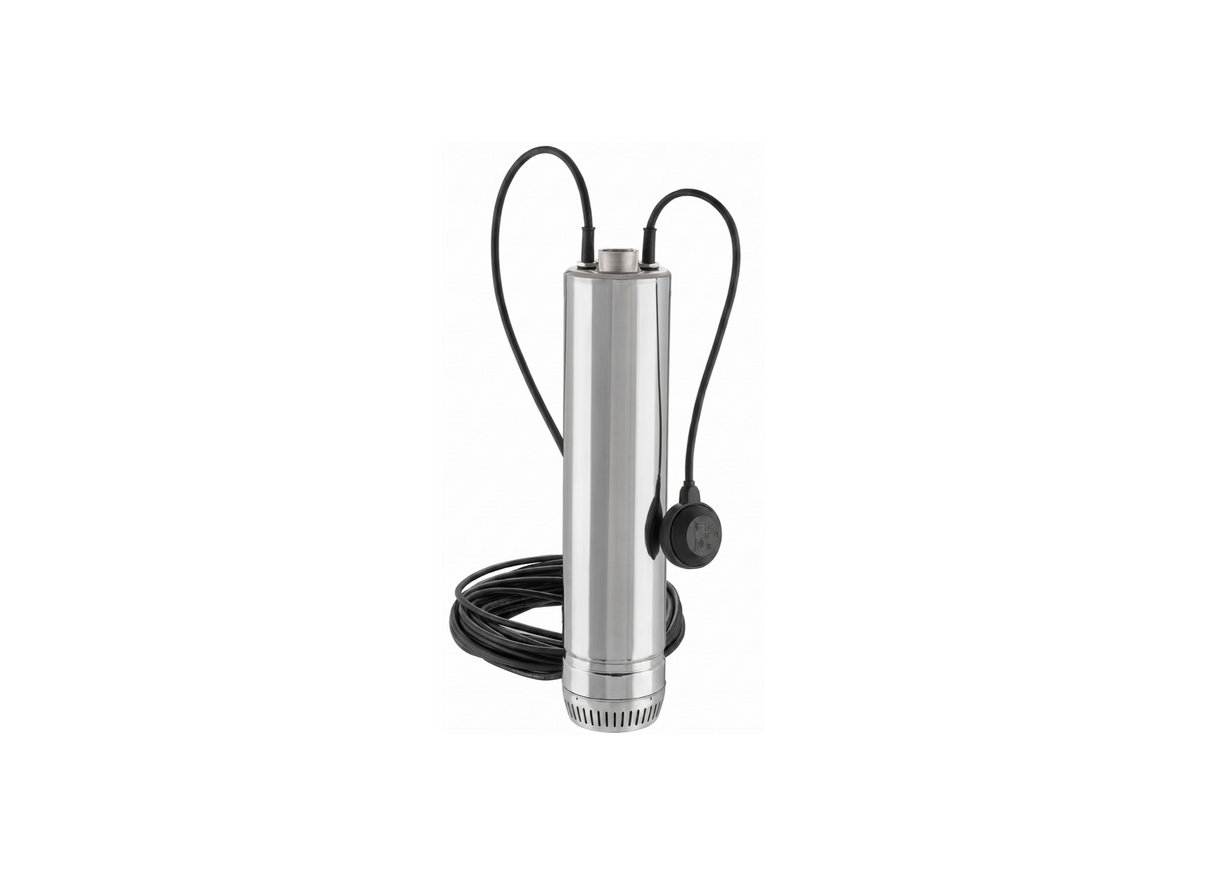

Lowara Scuba 3SC7/09CG20 Stainless Steel 7-Stage Submersible Pump with Tecnopolymer Impeller and Float Switch
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Automated water storage tank supply and pressure boosting are provided by the Lowara 3SC7/09CG20. This multi-stage submersible pump features an integrated float switch for level-based operation from boreholes, tanks and reservoirs for residential and light commercial applications.
Weighing 17 kg, the pump handles suspended sand up to 25 g/m³ and passes solids up to 2 mm. A 0.9 kW 240V single-phase motor draws 5.88 Amps and delivers a maximum head of 68.6 metres and a flow of 70 L/min through a 32 mm outlet.
AISI 304 stainless steel construction with technopolymer impellers and stainless steel diffusers provides corrosion resistance and reliable hydraulic performance. The float switch automatically starts and stops the pump based on water level.
Class F insulation and a double mechanical seal with oil chamber protect the motor, with a silicon carbide external face resisting abrasion. The pump is rated for continuous operation at depths up to 17 metres. A 20 metre cable, capacitor and automatic reset thermal overload protection are included.
FEATURES
- Integrated float switch for automatic level control without external sensors
- Maximum head of 68.6 metres and flow of 70 L/min for pressure boosting applications
- AISI 304 stainless steel construction for corrosion resistance in borehole environments
- Multi-stage hydraulic design with technopolymer impellers and stainless steel diffusers
- Handles suspended sand up to 25 g/m³ and solids up to 2 mm
- Double mechanical seal with silicon carbide external face for abrasion resistance
- Class F motor insulation and dry motor design with oil chamber protection
- Suitable for vertical or horizontal installation in 6-inch boreholes
- 20 metre H07RN8-F power cable with built-in capacitor and thermal overload protection
- Balanced lifting eye and decentered discharge manifold for easy installation
SPECIFICATIONS
| Max Flow | 70 L/Min |
| Max Head | 68.6 m |
| Power | 0.9 kW / 240v |
| Rated Current | 5.88 Amps |
| Suitable For | Water Storage Tank Supply |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What flow volume and lift height does this automated tank supply pump provide?
The 3SC7/09CG20 delivers a maximum head of 68.6 metres with flow rates reaching up to 70 L/Min.
How does the float switch assist in unattended residential pressure boosting?
The integrated float switch on the 3SC7-09CG20 automatically starts and stops the pump based on water level, preventing dry running.
What is the running current for this 0.9 kW single-phase motor?
Operating on a 240 V single-phase supply, the 0.9 kW motor of the 3SC7 09CG20 draws 5.88 Amps.
How does the mechanical seal prevent motor damage from abrasive sand?
A double mechanical seal with an oil chamber and silicon carbide face protects the 3SC7_09CG20 motor from abrasive wear.
What discharge port size connects this pump to distribution pipework?
The 3SC7/09CG20 incorporates a standard 32 mm discharge outlet for straightforward connection to water distribution systems.
