SKU: 5SC5/09CL20

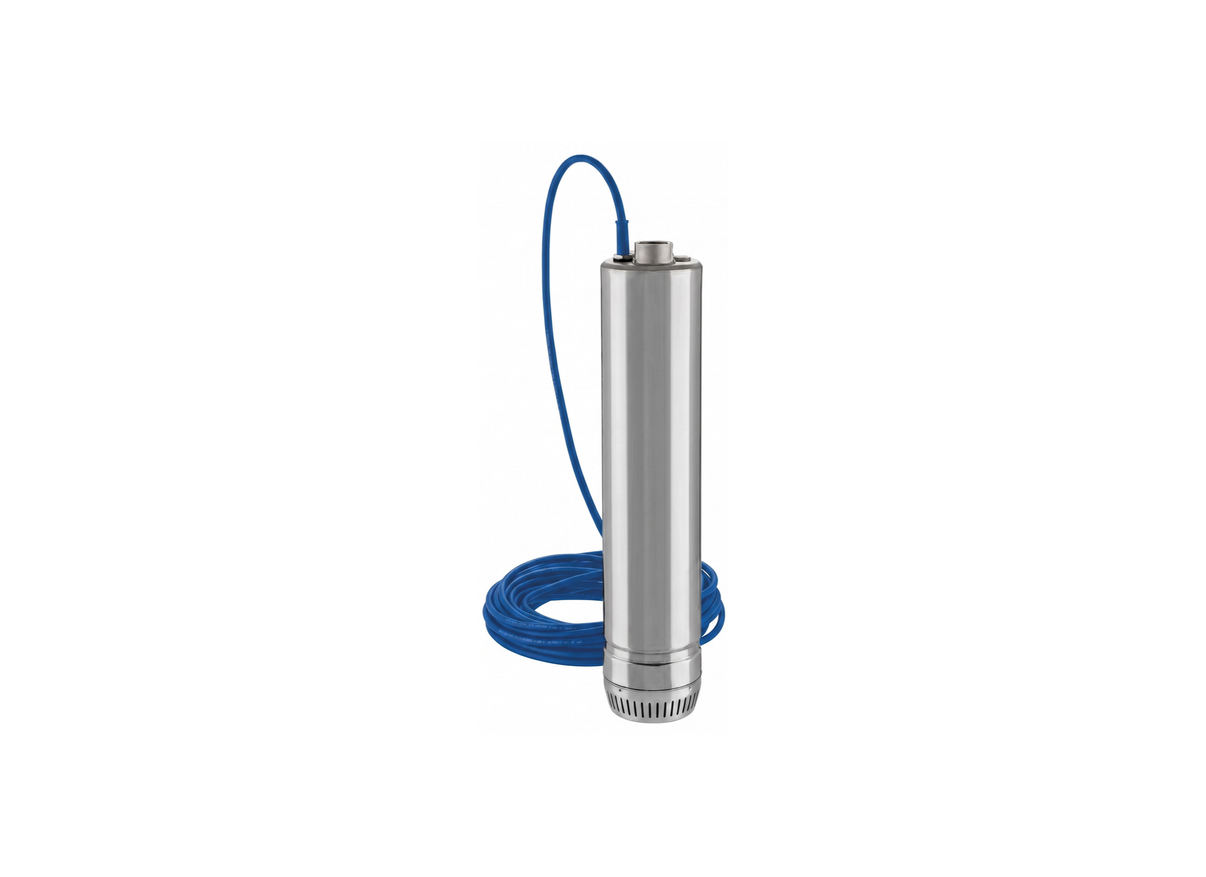

Lowara Scuba 5SC5/09CL20 Stainless Steel 5-Stage Submersible Pump with Tecnopolymer PPO Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
High-volume residential and commercial water supply from boreholes, tanks and reservoirs is the domain of the Lowara 5SC5/09CL20. Its 6-inch design and 32 mm discharge connection make it suitable for pressure boosting, irrigation and water transfer duties.
Weighing 16 kg, the pump handles suspended sand up to 25 g/m³ and passes solids up to 2 mm. A 0.9 kW 240V single-phase motor draws 5.72 Amps and delivers a maximum head of 48.9 metres and a flow of 120 L/min through a 32 mm outlet.
Class F insulation and a double mechanical seal with oil chamber protect the motor, with a silicon carbide external face resisting abrasion. The pump is rated for continuous operation at depths up to 17 metres.
Hydraulic reliability comes from technopolymer impellers and stainless steel diffusers housed in an AISI 304 stainless steel outer sleeve. The compact design and decentered discharge manifold make it suitable for restricted installation spaces. A 20 metre cable, capacitor and automatic reset thermal overload protection are included.
FEATURES
- Maximum head of 48.9 metres and flow of 120 L/min for high-volume applications
- AISI 304 stainless steel construction for corrosion resistance in borehole environments
- Multi-stage hydraulic design with technopolymer impellers and stainless steel diffusers
- Handles suspended sand up to 25 g/m³ and solids up to 2 mm
- Double mechanical seal with silicon carbide external face for abrasion resistance
- Class F motor insulation and dry motor design with oil chamber protection
- Suitable for vertical or horizontal installation in 6-inch boreholes
- 20 metre H07RN8-F power cable with built-in capacitor and thermal overload protection
- Balanced lifting eye and decentered discharge manifold for easy installation
- Quiet operation suitable for residential and commercial use
SPECIFICATIONS
| Max Flow | 120 L/Min |
| Max Head | 48.9 m |
| Power | 0.9 kW / 240v |
| Rated Current | 5.72 Amps |
| Suitable For | Residential Water Supply |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What are the flow and pressure head capacities of this commercial supply pump?
The 5SC5/09CL20 provides a maximum head of 48.9 metres with high-capacity flow reaching 120 L/Min.
How does the decentered discharge manifold assist during well installation?
A decentered discharge manifold on the 5SC5-09CL20 optimizes clearance and simplifies pipe connections in restricted spaces.
What is the total weight of this multi-stage borehole unit?
The 5SC5 09CL20 has an overall weight of 16 kg and features a corrosion-resistant AISI 304 stainless steel outer casing.
How much current does this 0.9 kW single-phase motor draw?
Running on a 240 V single-phase connection, the 0.9 kW motor of the 5SC5_09CL20 draws 5.72 Amps.
What power cable length is supplied with this pump?
The 5SC5/09CL20 comes complete with a 20-metre H07RN8-F power cable and integrated capacitor.
