SKU: 5SC6/11CG20

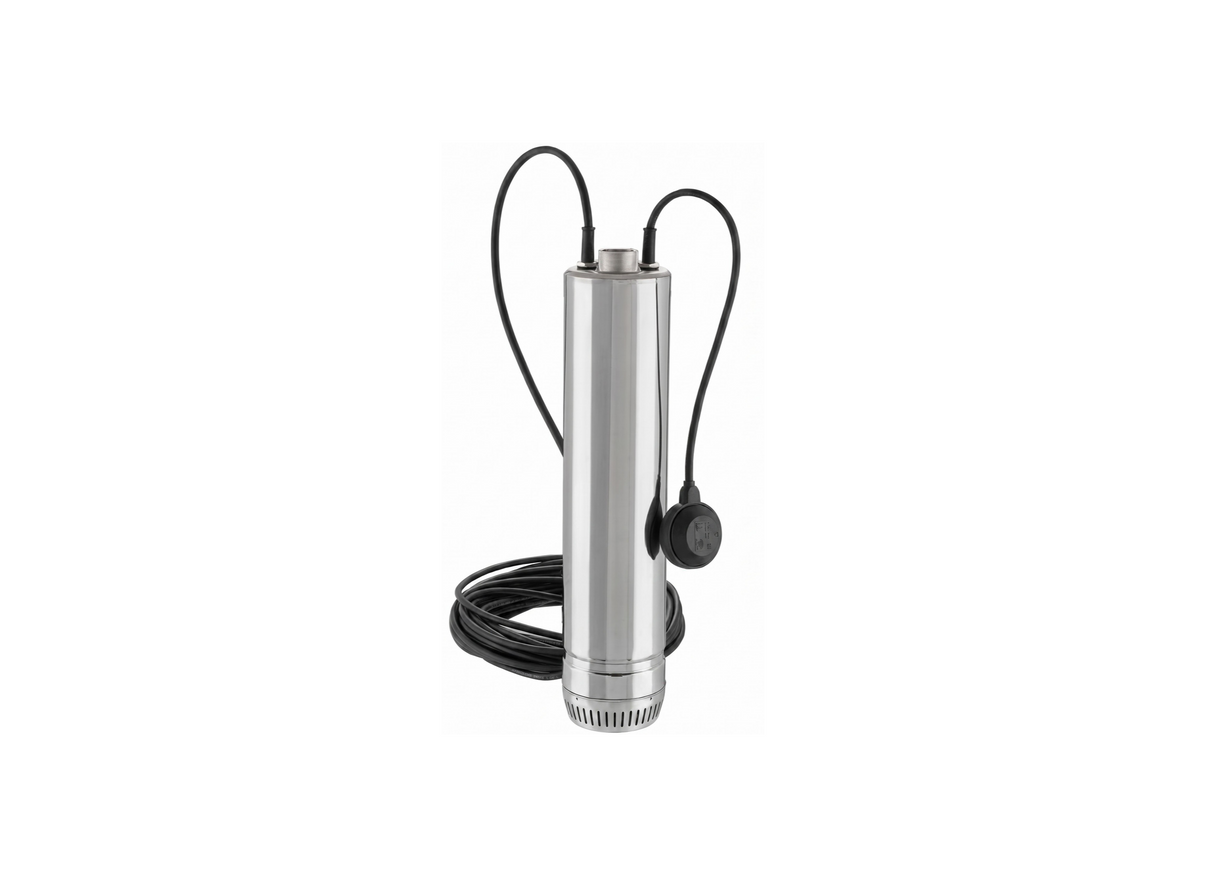

Lowara Scuba 5SC6/11CG20 Stainless Steel 6-Stage Submersible Pump with Tecnopolymer Impeller and Float Switch
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Automatic pressure boosting and irrigation with high-volume capacity are provided by the Lowara 5SC6/11CG20. This multi-stage submersible pump features an integrated float switch for residential, agricultural and light commercial water transfer from boreholes, tanks and reservoirs.
A 1.1 kW 240V single-phase motor draws 6.90 Amps and delivers a maximum head of 58.3 metres and a flow of 120 L/min through a 32 mm outlet. The float switch automatically starts and stops the pump based on water level.
Weighing 17.7 kg, the pump handles suspended sand up to 25 g/m³ and passes solids up to 2 mm. AISI 304 stainless steel construction with technopolymer impellers and stainless steel diffusers provides corrosion resistance and reliable hydraulic performance.
Class F insulation and a double mechanical seal with oil chamber protect the motor, with a silicon carbide external face resisting abrasion. The pump is rated for continuous operation at depths up to 17 metres. A 20 metre cable, capacitor and automatic reset thermal overload protection are included.
FEATURES
- Integrated float switch for automatic level control without external sensors
- Maximum head of 58.3 metres and flow of 120 L/min for high-volume applications
- AISI 304 stainless steel construction for corrosion resistance in borehole environments
- Multi-stage hydraulic design with technopolymer impellers and stainless steel diffusers
- Handles suspended sand up to 25 g/m³ and solids up to 2 mm
- Double mechanical seal with silicon carbide external face for abrasion resistance
- Class F motor insulation and dry motor design with oil chamber protection
- Suitable for vertical or horizontal installation in 6-inch boreholes
- 20 metre H07RN8-F power cable with built-in capacitor and thermal overload protection
- Balanced lifting eye and decentered discharge manifold for easy installation
SPECIFICATIONS
| Max Flow | 120 L/Min |
| Max Head | 58.3 m |
| Power | 1.1 kW / 240v |
| Rated Current | 6.90 Amps |
| Suitable For | Domestic Pressure Boosting |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What are the maximum pressure and delivery volume outputs of this unit?
The 5SC6/11CG20 achieves a maximum head of 58.3 metres with a high delivery capacity of 120 L/min.
What concentration of suspended sand can this multi-stage pump process?
The hydraulic stages of the 5SC6-11CG20 process suspended sand up to 25 g/m³ and pass solids up to 2 mm.
What is the total assembled weight of this 1.1 kW submersible pump?
The 5SC6 11CG20 has an overall weight of 17.7 kg and is constructed from corrosion-resistant AISI 304 stainless steel.
Does this automatic pump include built-in motor overload protection?
Yes, an automatic reset thermal overload protector is built directly into the 20-metre cable assembly of the 5SC6_11CG20.
How does the float switch operate during automated water transfer?
The float switch on the 5SC6/11CG20 automatically activates and deactivates the pump based on rising and falling water levels.
