SKU: 5SC6/11TL20

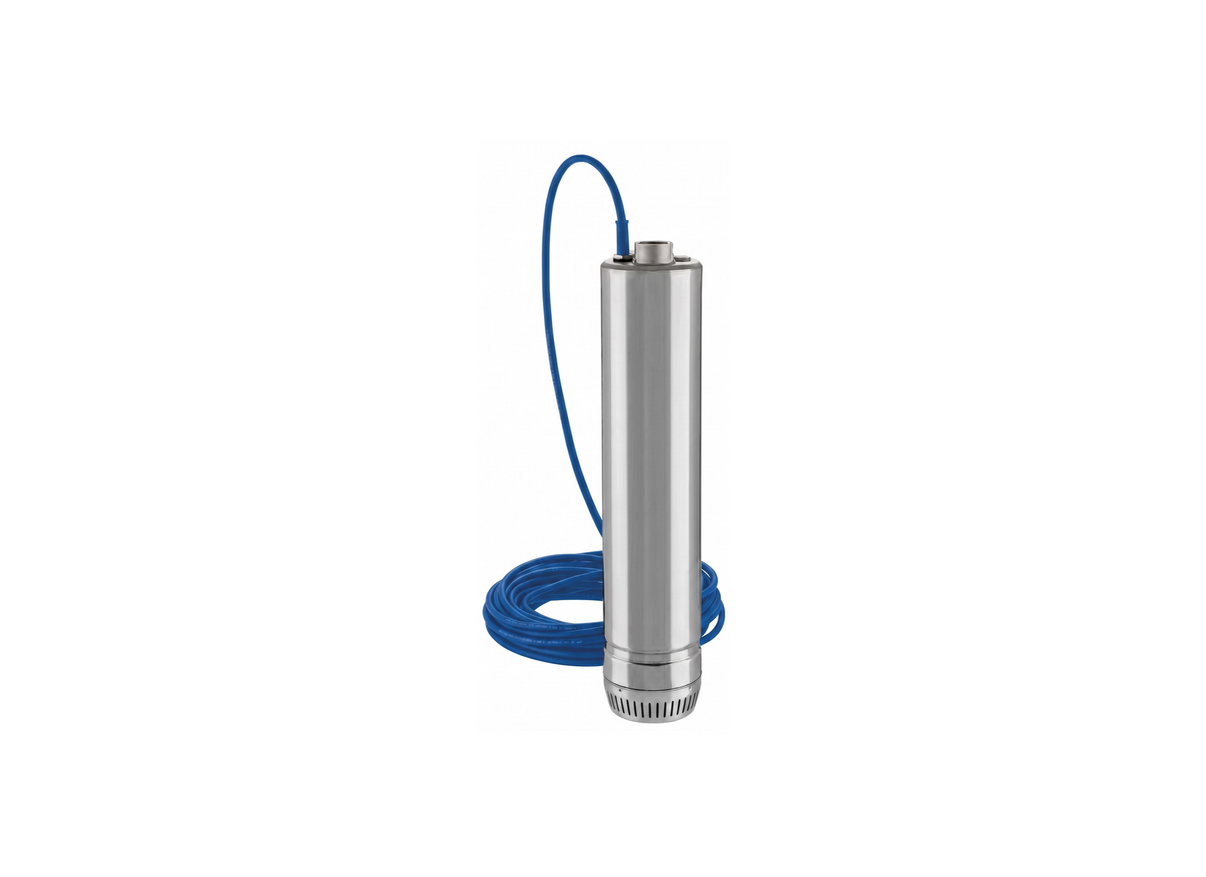

Lowara Scuba 5SC6/11TL20 Stainless Steel 6-Stage Three-Phase Submersible Pump with Tecnopolymer PPO Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Continuous-duty high-volume water supply with three-phase power is delivered by the Lowara 5SC6/11TL20. This multi-stage submersible pump handles commercial irrigation, pressure boosting and water transfer from boreholes, tanks and reservoirs with its 6-inch design.
A 1.1 kW 415V three-phase motor draws 2.72 Amps and delivers a maximum head of 58.8 metres and a flow of 120 L/min through a 32 mm outlet. External overload protection is required.
Weighing 18 kg, the pump handles suspended sand up to 25 g/m³ and passes solids up to 2 mm. AISI 304 stainless steel construction with technopolymer impellers and stainless steel diffusers provides corrosion resistance and reliable hydraulic performance.
Class F insulation and a double mechanical seal with oil chamber protect the motor, with a silicon carbide external face resisting abrasion. The pump is rated for continuous operation at depths up to 17 metres. A 20 metre four-core cable is included for connection to an external control panel.
FEATURES
- Three-phase 415V motor for continuous-duty commercial installations
- Maximum head of 58.8 metres and flow of 120 L/min for high-volume applications
- AISI 304 stainless steel construction for corrosion resistance in borehole environments
- Multi-stage hydraulic design with technopolymer impellers and stainless steel diffusers
- Handles suspended sand up to 25 g/m³ and solids up to 2 mm
- Double mechanical seal with silicon carbide external face for abrasion resistance
- Class F motor insulation and dry motor design with oil chamber protection
- Suitable for vertical or horizontal installation in 6-inch boreholes
- 20 metre H07RN8-F four-core cable for external control panel connection
- Balanced lifting eye and decentered discharge manifold for easy installation
SPECIFICATIONS
| Max Flow | 120 L/Min |
| Max Head | 58.8 m |
| Power | 1.1 kW / 415v |
| Rated Current | 2.72 Amps |
| Suitable For | Garden Sprinkler Irrigation |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What discharge pressure and flow volume does this three-phase transfer pump deliver?
The 5SC6/11TL20 provides a maximum head of 58.8 metres with a delivery flow rate of 120 L/min.
How much current does this 1.1 kW motor draw on 415 V three-phase power?
Operating on a 415 V three-phase supply, the 1.1 kW motor of the 5SC6-11TL20 draws 2.72 Amps.
What is the total operating weight of this 6-inch borehole pump?
The 5SC6 11TL20 has an overall weight of 18 kg and features a 128 mm diameter casing for 6-inch wells.
How does the manifold design assist in confined well casings?
A decentered discharge manifold on the 5SC6_11TL20 improves pipe clearance and installation in tight boreholes.
Does this pump require an external motor starter with overload protection?
Yes, external overload protection is required when installing the 5SC6/11TL20 using its 20-metre four-core cable.
