SKU: 8SC3/09TL20

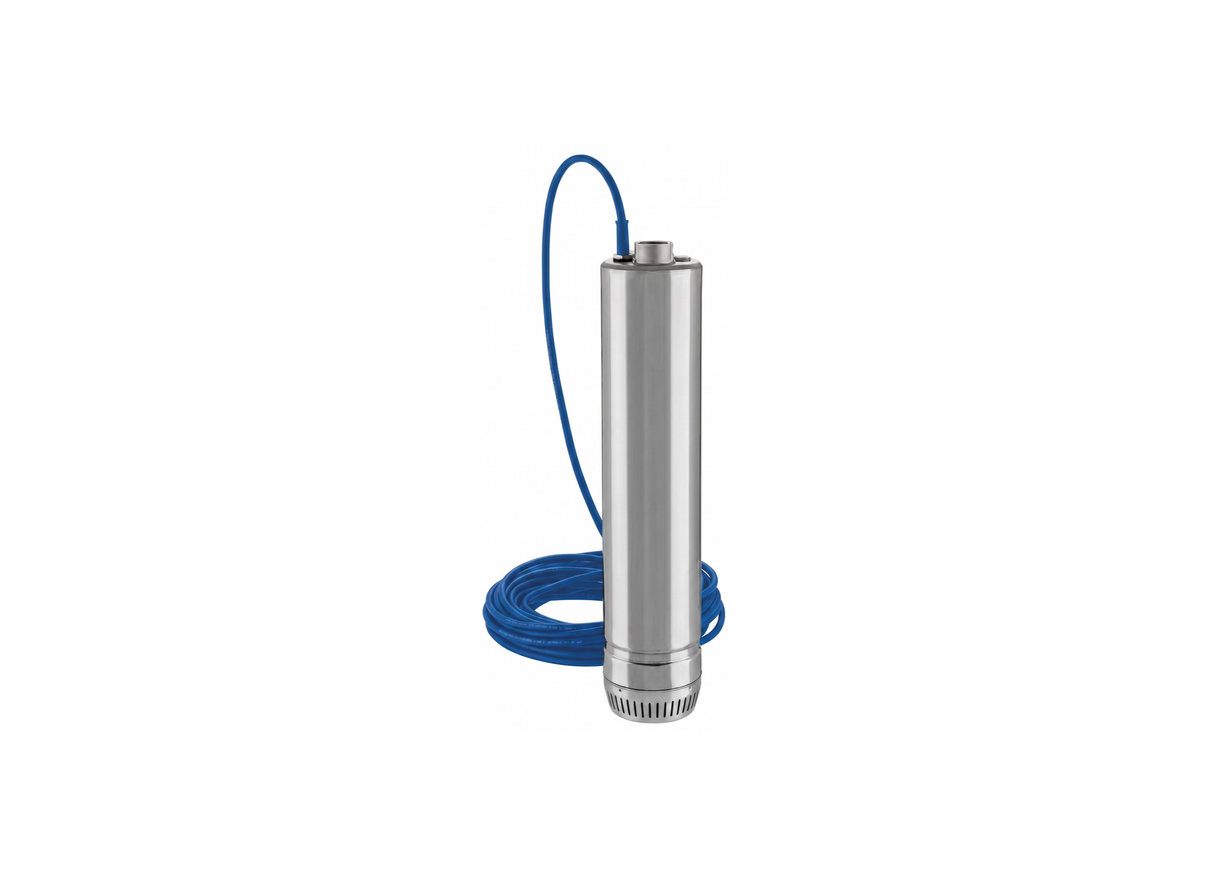

Lowara Scuba 8SC3/09TL20 Stainless Steel 3-Stage Three-Phase Submersible Pump with Tecnopolymer PPO Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
High-volume commercial irrigation, recycling and water supply with three-phase power are handled by the Lowara 8SC3/09TL20. This multi-stage submersible pump is suitable for continuous-duty operation from boreholes, tanks and reservoirs with its 6-inch design.
A 0.9 kW 415V three-phase motor draws 2.53 Amps and delivers a maximum head of 28.7 metres and a flow of 180 L/min through a 32 mm outlet. External overload protection is required.
Weighing 16 kg, the pump handles suspended sand up to 25 g/m³ and passes solids up to 2 mm. AISI 304 stainless steel construction with technopolymer impellers and stainless steel diffusers provides corrosion resistance and reliable hydraulic performance.
Class F insulation and a double mechanical seal with oil chamber protect the motor, with a silicon carbide external face resisting abrasion. The pump is rated for continuous operation at depths up to 17 metres. A 20 metre four-core cable is included for connection to an external control panel.
FEATURES
- Three-phase 415V motor for continuous-duty commercial installations
- Maximum head of 28.7 metres and flow of 180 L/min for high-volume applications
- AISI 304 stainless steel construction for corrosion resistance in borehole environments
- Multi-stage hydraulic design with technopolymer impellers and stainless steel diffusers
- Handles suspended sand up to 25 g/m³ and solids up to 2 mm
- Double mechanical seal with silicon carbide external face for abrasion resistance
- Class F motor insulation and dry motor design with oil chamber protection
- Suitable for vertical or horizontal installation in 6-inch boreholes
- 20 metre H07RN8-F four-core cable for external control panel connection
- Balanced lifting eye and decentered discharge manifold for easy installation
SPECIFICATIONS
| Max Flow | 180 L/Min |
| Max Head | 28.7 m |
| Power | 0.9 kW / 415v |
| Rated Current | 2.53 Amps |
| Suitable For | Commercial Car Wash Systems |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What head and flow outputs are produced by this commercial recycling pump?
The 8SC3/09TL20 generates a maximum head of 28.7 metres while delivering high-volume output up to 180 L/min.
What is the operating current of this 0.9 kW three-phase motor?
Connected to a 415 V three-phase supply, the 0.9 kW motor of the 8SC3-09TL20 draws 2.53 Amps.
What size solid particulates can pass through the hydraulic stages?
Internal clearances in the 8SC3 09TL20 permit spherical solids up to 2 mm and sand concentrations up to 25 g/m³ to pass.
What pipe connection size is used on the discharge head?
The 8SC3_09TL20 incorporates a standard 32 mm discharge outlet for connection to distribution piping.
What lifting provision is included to assist with well installation?
A balanced lifting eye and decentered discharge manifold on the 8SC3/09TL20 ensure safe, level lowering into wells.
