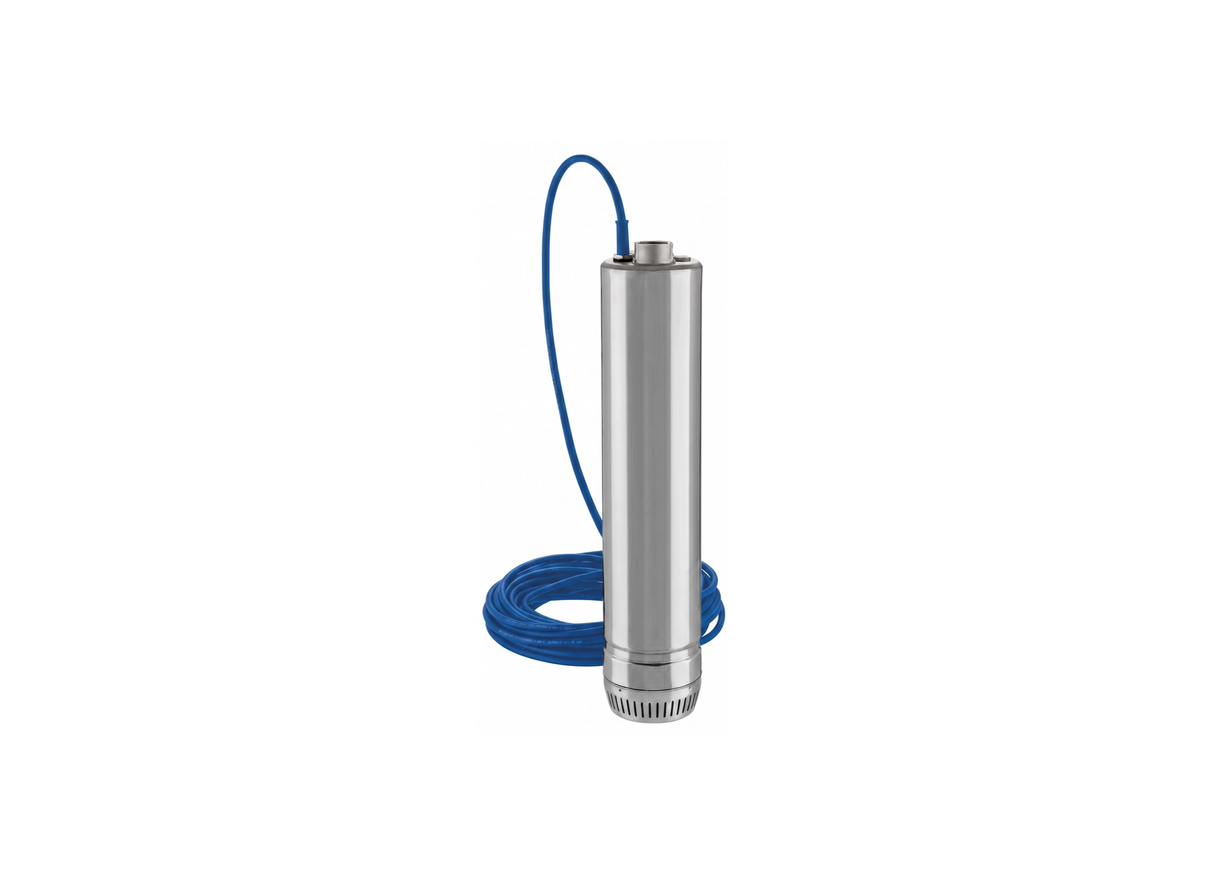

Lowara Scuba 8SC6/15CL20 Stainless Steel 6-Stage Submersible Pump with Tecnopolymer PPO Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Industrial water supply, commercial irrigation and large-scale water transfer are the intended applications for the Lowara 8SC6/15CL20. This high-capacity multi-stage submersible pump delivers reliable performance for demanding continuous-duty installations from 6-inch boreholes.
Weighing 19 kg, the pump handles suspended sand up to 25 g/m³ and passes solids up to 2 mm. A 1.5 kW 240V single-phase motor draws 10.36 Amps and delivers a maximum head of 56.1 metres and a flow of 180 L/min through a 32 mm outlet.
AISI 304 stainless steel construction with technopolymer impellers and stainless steel diffusers provides corrosion resistance and reliable hydraulic performance. The compact design and decentered discharge manifold make it suitable for restricted installation spaces.
Class F insulation and a double mechanical seal with oil chamber protect the motor, with a silicon carbide external face resisting abrasion. The pump is rated for continuous operation at depths up to 17 metres. A 20 metre cable, capacitor and automatic reset thermal overload protection are included.
FEATURES
- Maximum head of 56.1 metres and flow of 180 L/min for high-volume applications
- AISI 304 stainless steel construction for corrosion resistance in borehole environments
- Multi-stage hydraulic design with technopolymer impellers and stainless steel diffusers
- Handles suspended sand up to 25 g/m³ and solids up to 2 mm
- Double mechanical seal with silicon carbide external face for abrasion resistance
- Class F motor insulation and dry motor design with oil chamber protection
- Suitable for vertical or horizontal installation in 6-inch boreholes
- 20 metre H07RN8-F power cable with built-in capacitor and thermal overload protection
- Balanced lifting eye and decentered discharge manifold for easy installation
- Quiet operation suitable for commercial and industrial use
SPECIFICATIONS
| Max Flow | 180 L/Min |
| Max Head | 56.1 m |
| Power | 1.5 kW / 240v |
| Rated Current | 10.36 Amps |
| Suitable For | Industrial Water Supply |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What maximum head does this continuous-duty industrial pump generate?
The 8SC6/15CL20 generates a maximum head of 56.1 metres while delivering high-volume output up to 180 L/Min.
What is the running current for this 1.5 kW single-phase motor?
Operating on a 240 V single-phase supply, the 1.5 kW motor of the 8SC6-15CL20 draws 10.36 Amps under load.
What is the total weight of this heavy-duty multi-stage pump?
The 8SC6 15CL20 has an overall weight of 19 kg and features rugged AISI 304 stainless steel construction.
How does the double mechanical seal design protect the internal motor?
A double mechanical seal with an intermediate oil chamber shields the motor of the 8SC6_15CL20 from fluid ingress.
What cable length is provided for submersible electrical connection?
A 20-metre H07RN8-F submersible power cable with an integrated capacitor is supplied standard with the 8SC6/15CL20.
