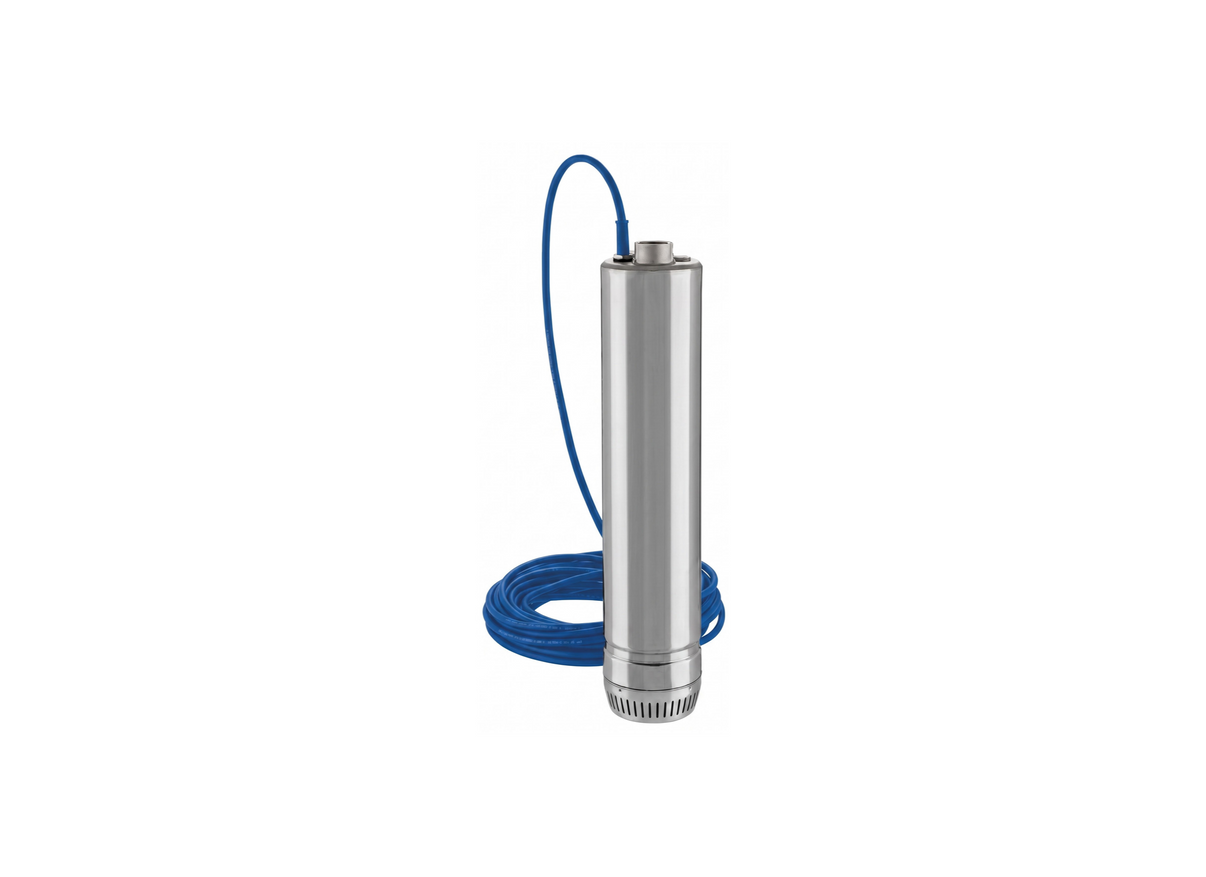

Lowara Scuba 8SC6/22TL20 Stainless Steel 6-Stage Three-Phase Submersible Pump with Tecnopolymer PPO Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Industrial water supply, large-scale commercial irrigation and high-volume water transfer with high-power three-phase are the domain of the Lowara 8SC6/22TL20. This multi-stage submersible pump handles continuous-duty operation from boreholes, tanks and reservoirs with its 6-inch design.
Weighing 20.6 kg, the pump handles suspended sand up to 25 g/m³ and passes solids up to 2 mm. A 2.2 kW 415V three-phase motor draws 4.28 Amps and delivers a maximum head of 57.9 metres and a flow of 180 L/min through a 32 mm outlet.
AISI 304 stainless steel construction with technopolymer impellers and stainless steel diffusers provides corrosion resistance and reliable hydraulic performance. Three-phase power provides efficient operation for continuous-duty applications with external overload protection required.
Class F insulation and a double mechanical seal with oil chamber protect the motor, with a silicon carbide external face resisting abrasion. The pump is rated for continuous operation at depths up to 17 metres. A 20 metre four-core cable is included for connection to an external control panel.
FEATURES
- Three-phase 415V motor for continuous-duty industrial installations
- Maximum head of 57.9 metres and flow of 180 L/min for high-volume applications
- AISI 304 stainless steel construction for corrosion resistance in borehole environments
- Multi-stage hydraulic design with technopolymer impellers and stainless steel diffusers
- Handles suspended sand up to 25 g/m³ and solids up to 2 mm
- Double mechanical seal with silicon carbide external face for abrasion resistance
- Class F motor insulation and dry motor design with oil chamber protection
- Suitable for vertical or horizontal installation in 6-inch boreholes
- 20 metre H07RN8-F four-core cable for external control panel connection
- Balanced lifting eye and decentered discharge manifold for easy installation
SPECIFICATIONS
| Max Flow | 180 L/Min |
| Max Head | 57.9 m |
| Power | 2.2 kW / 415v |
| Rated Current | 4.28 Amps |
| Suitable For | Irrigation Water Supply |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What maximum discharge head can this continuous-duty industrial pump achieve?
The 8SC6/22TL20 achieves a maximum head of 57.9 metres while providing flow rates up to 180 L/min.
How much electrical current does this 2.2 kW three-phase motor draw?
Operating on a 415 V three-phase supply, the 2.2 kW motor of the 8SC6-22TL20 draws 4.28 Amps under load.
What is the total operating weight of this heavy-duty unit?
Weighing 20.6 kg, the 8SC6 22TL20 is built with a 128 mm diameter casing designed for standard 6-inch boreholes.
What maximum submersion depth is supported for continuous running?
The 8SC6_22TL20 is fully rated for continuous submerged operation at depths down to 17 metres.
What materials protect the pump casing and diffusers from corrosion?
Constructed with an AISI 304 stainless steel casing and diffusers, the 8SC6/22TL20 delivers superior corrosion resistance.
