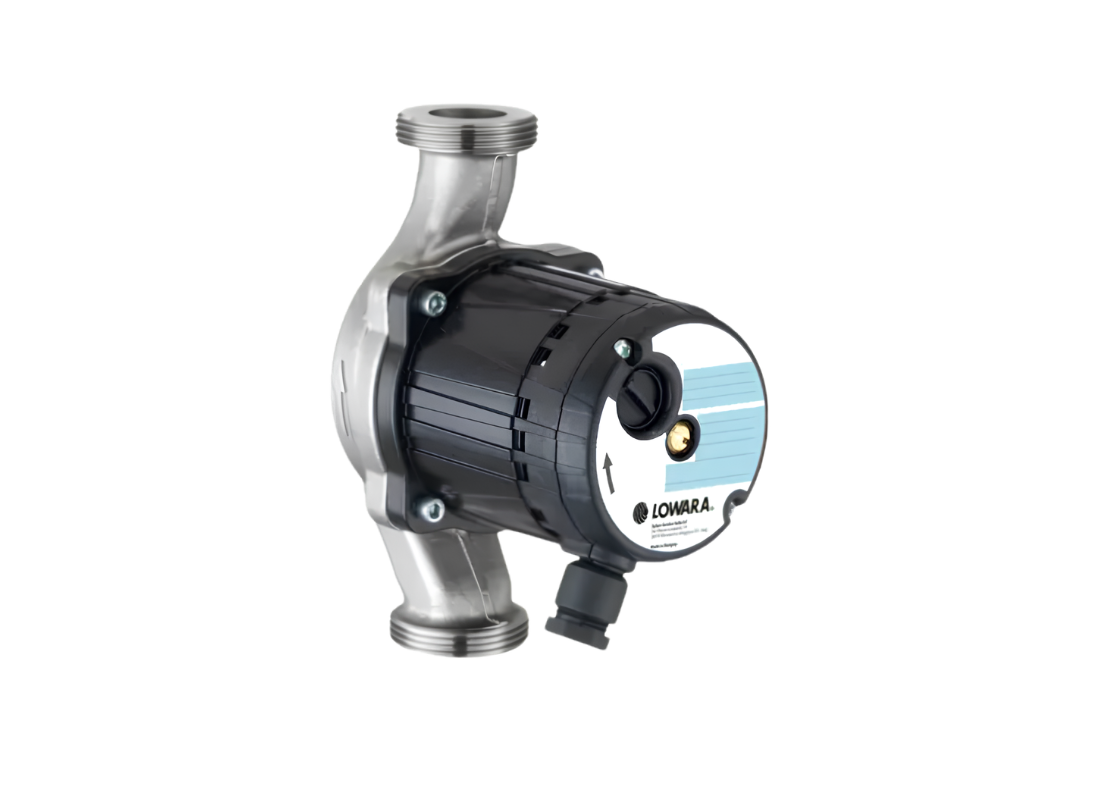

Residential sanitary hot water circulation with 180 mm port-to-port installation dimensions is addressed by the Lowara TLCN 25-6L. This wet rotor circulator pump is specifically designed for higher volume installations and specialised retrofit applications where extended connection spacing is required.
Three speed manual selector enables performance matching to system requirements. On 240 V single-phase supply at Speed 3, the pump consumes 80 W drawing 0.34 A. Maximum head is approximately 6.2 m with flow reaching 70 L/Min at the rated operating point.
The pump body is manufactured from stainless steel with composite material impeller. Ceramic axial and radial bearings are lubricated by the pumped liquid, while the ceramic wear ring provides wear resistance. The extended 180 mm port-to-port configuration accommodates installations with specific dimensional requirements.
Installation is suitable for horizontal or vertical piping with motor axis horizontal. Threaded connections are available in multiple sizes. Liquid temperature capability ranges from +2°C to +110°C with recommended maximum of 65°C for sanitary water. Maximum operating pressure is 10 bar PN10 with IP44 protection class.
FEATURES
- Extended 180 mm port-to-port design for retrofit installations
- Stainless steel pump body for potable water compatibility
- Three speed manual selector for operational flexibility
- Ceramic bearings and wear ring for extended service life
- Composite impeller for hydraulic efficiency
- Wet rotor design with pumped liquid lubrication
- Integrated terminal box for simplified electrical connection
