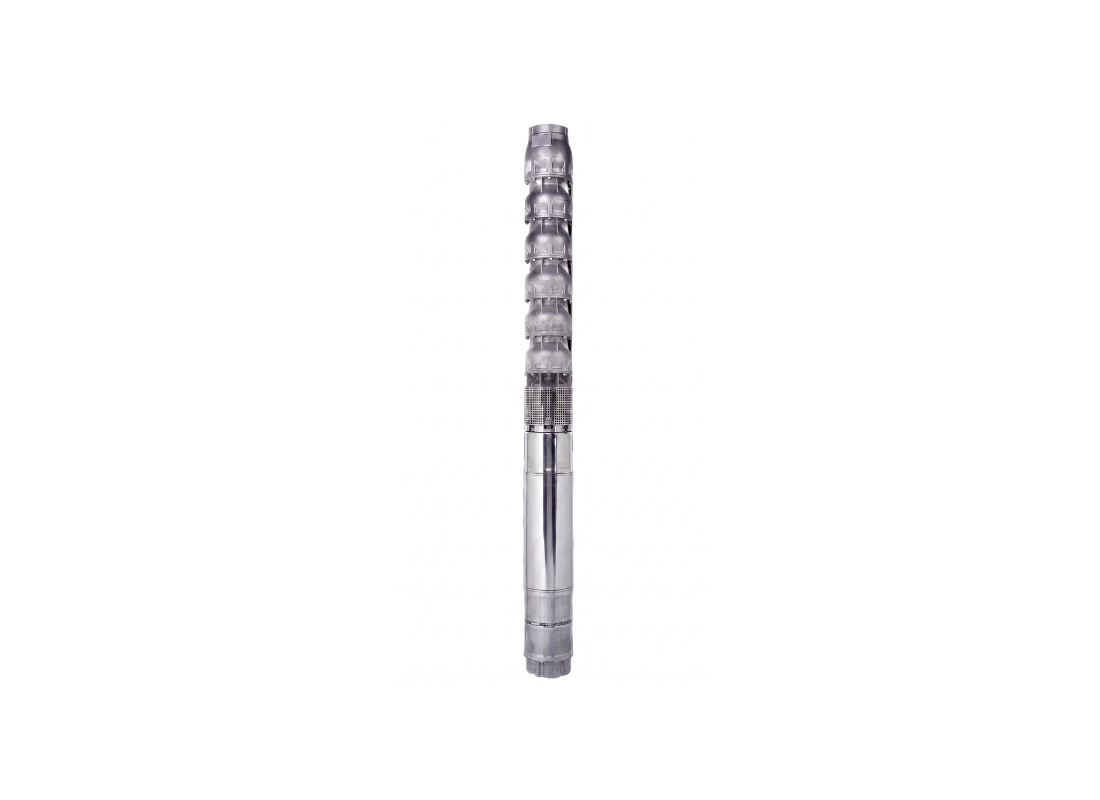

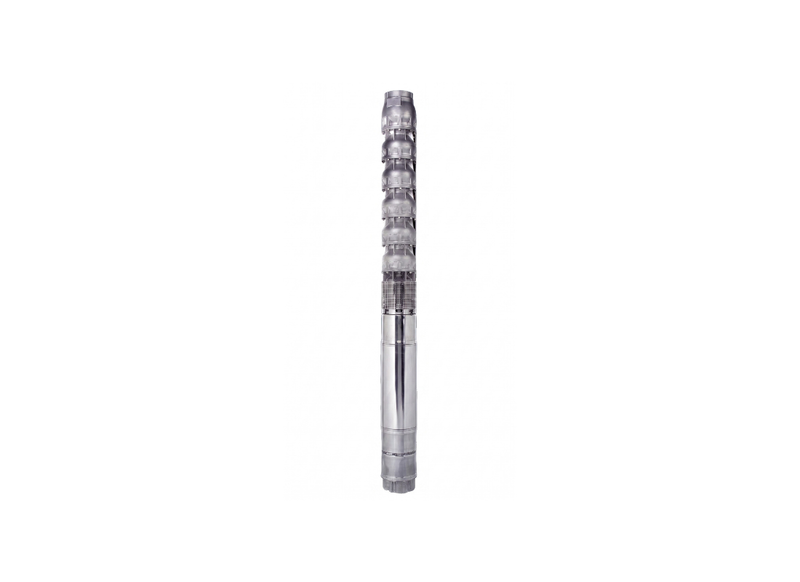

Lowara Z855-03-3 Stainless Steel 15kW Deep Well 8" Submersible Bore Pump with Semi-Axial Flow Impeller

Warranty & Returns

All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.

• Products must be installed correctly and in accordance with the manufacturer’s instructions.
• Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
• Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
• The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
• Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
• Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
• Customers are responsible for return freight costs for change-of-mind returns.
• Restocking fees may apply to special-order, bulky or non-stocked products.
• Used, installed or specially ordered products may not be eligible for change-of-mind returns.
• If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.

Your rights under Australian Consumer Law are not affected.

What impeller setup is incorporated into this standard 3-stage model?

The Z855-03-3 features three full-diameter stainless steel impellers for maximum hydraulic output.

What maximum head and flow capacity are achieved by this 15 kW unit?

Discharging up to 1333 L/Min, the Z855-03-3 achieves a maximum head of 80.9 metres.

What electrical supply and amperage are needed to operate the motor?

The 15 kW water-filled L6W motor in the Z855 03 3 draws 32.1 Amps from a 415V three-phase supply.

What material is used for the thrust bearing to absorb axial forces?

Axial load management in the Z855_03_3 is provided by a carbon-filled PTFE internal thrust bearing.

What feature prevents water column reverse flow and surges?

A cast stainless steel delivery casing with a spring-loaded non-return valve protects the Z855-03-3 against backflow.
