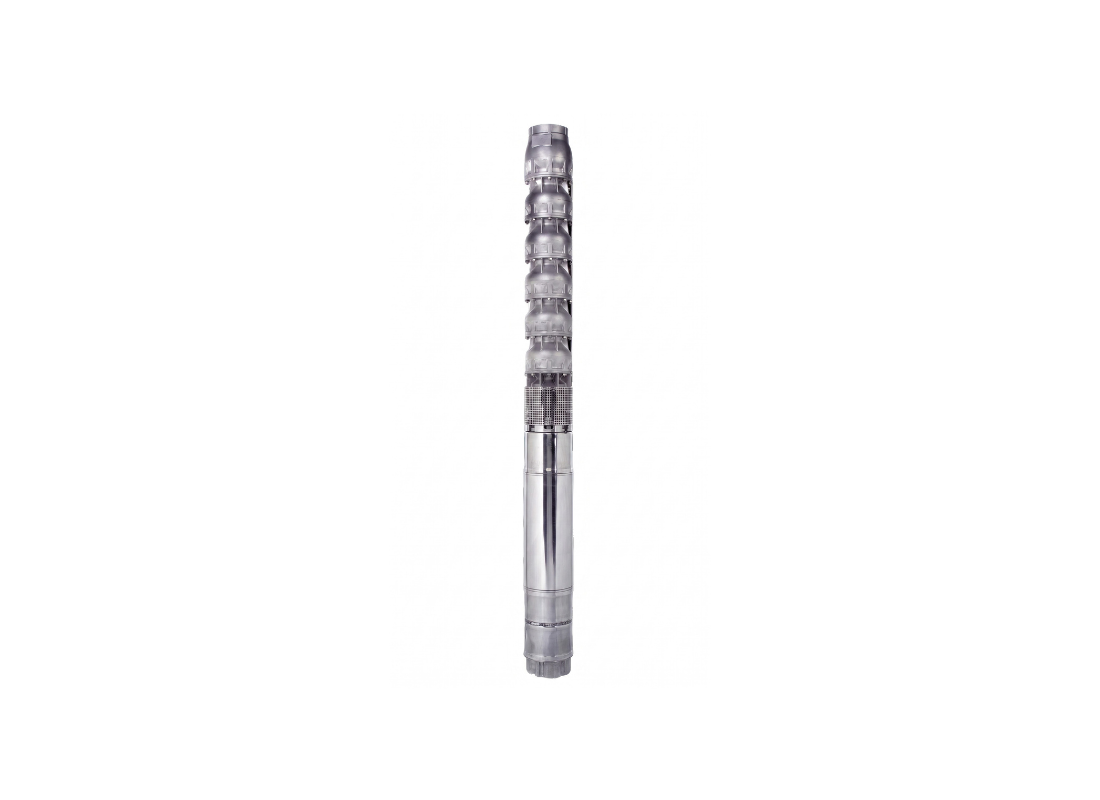

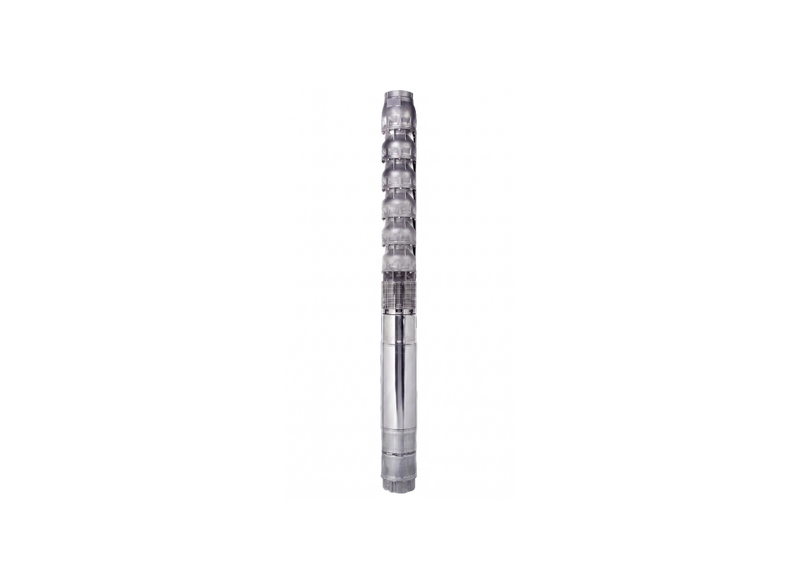

Lowara Z855-05-3S Stainless Steel 22kW Deep Well 8" Submersible Bore Pump with Semi-Axial Flow Impeller

Warranty & Returns

All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.

• Products must be installed correctly and in accordance with the manufacturer’s instructions.
• Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
• Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
• The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
• Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
• Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
• Customers are responsible for return freight costs for change-of-mind returns.
• Restocking fees may apply to special-order, bulky or non-stocked products.
• Used, installed or specially ordered products may not be eligible for change-of-mind returns.
• If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.

Your rights under Australian Consumer Law are not affected.

What metallurgy combination is featured on this corrosion-resistant 5-stage unit?

The Z855-05-3S pairs a 304 stainless steel pump end with a 316 stainless steel motor housing for aggressive water handling.

What maximum delivery head does this 22 kW pump develop?

The Z855-05-3S generates a maximum head of 134.8 metres alongside a flow rate of 1333 L/Min.

What components support the rotating assembly and manage mechanical wear?

Mechanical integrity in the Z855 05 3S is provided by EPDM bearing bushes and a duplex stainless steel taperlock.

What electrical current does the motor draw under continuous full load?

Running on a 415V three-phase supply, the 22 kW motor of the Z855_05_3S draws 47.3 Amps.

How does this model prevent backflow during motor shutdown?

Backflow is eliminated on the Z855-05-3S by an integrated spring-loaded non-return valve in the delivery casing.
