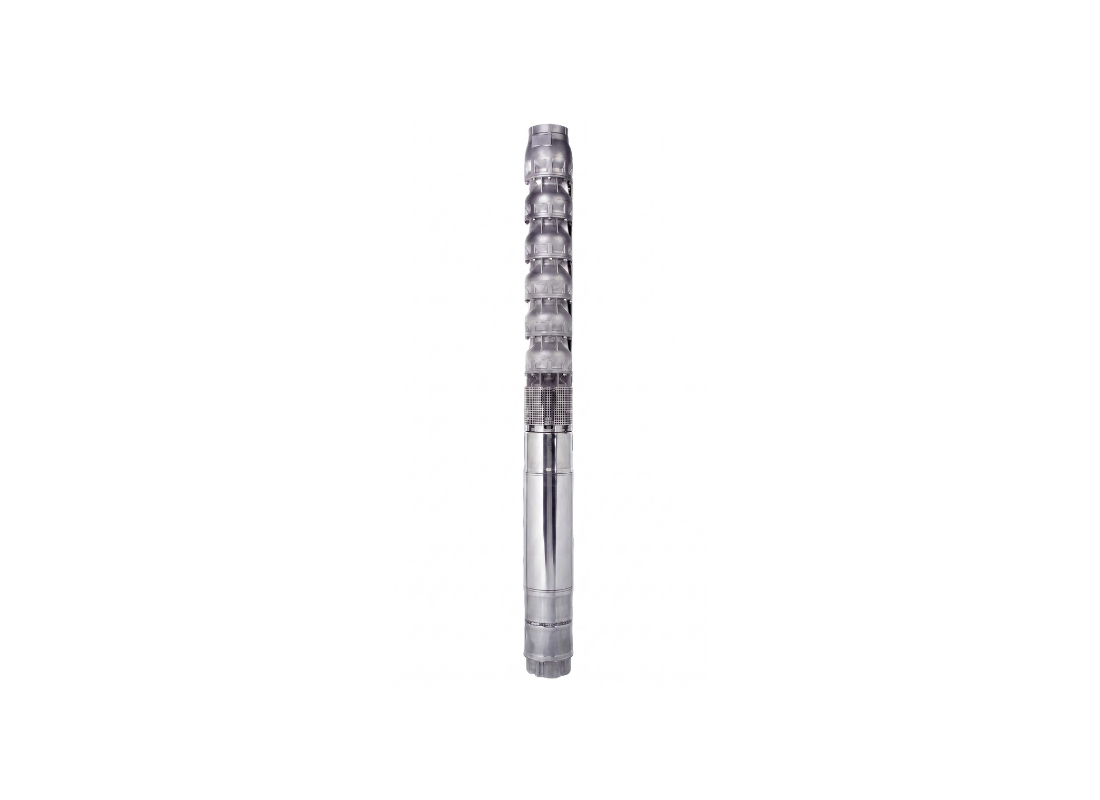

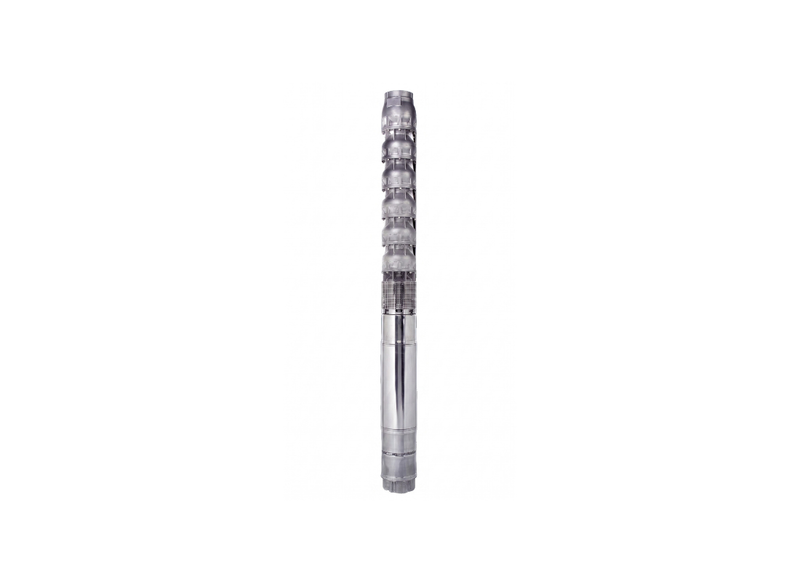

Lowara Z875-07-3 Stainless Steel 45 kW Deep Well 8" Submersible Bore Pump with Semi-Axial Flow Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Pressure boosting in high-rise buildings and municipal water supply systems rely on the Lowara Z875-07-3. Agricultural sprinkler irrigation and industrial water distribution also benefit from its performance. The pump supports vertical and horizontal mounting configurations.
A 45 kW motor drawing 95.9 Amps at 415V three-phase develops 185.2 m of head and a maximum flow of 1833.3 L/Min. The 125 mm discharge port includes an integrated non-return valve. Hydraulic performance is presented according to ISO 9906:2012 Grade 3B standards.
Constructed from AISI 304 stainless steel, the casing encloses a semi-axial flow impeller trimmed to 143 mm. The assembly weighs 258.5 kg and handles sand up to 100 g/m³ at 25°C. Heat dissipation occurs through the surrounding water during operation.
Class F insulation and IP68 protection allow immersion to 350 m depth. The L8W450 motor incorporates water-lubricated thrust bearings. NEMA flange mounting and dual cable covers maintain the 198 mm diameter for 8-inch well compatibility.
FEATURES
- Stainless steel impeller construction provides durable hydraulic performance for high-pressure operation
- POM-C wear rings and EPDM guide bearings provide wear-resistant hydraulic components
- NEMA-standard mounting interfaces simplify motor alignment and installation
- Suction strainer helps protect internal stages from debris damage
- Integrated check valve reduces the need for a separate external check valve
- Dual cable covers maintain 198 mm diameter for standard borehole compatibility
- Water-lubricated thrust bearings support axial load management during continuous operation
* Motor and pump supplied separately - requires assembly
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What maximum delivery head does this heavy-duty 45 kW borehole pump achieve?
The Z875-07-3 develops a maximum head of 185.2 metres using 143 mm trimmed impellers.
What maximum water flow can this 45 kW pump deliver for municipal distribution?
Peak delivery flow on the Z875-07-3 reaches 1833.3 L/Min.
What electrical running current is drawn by the 45 kW motor?
The 45 kW motor of the Z875 07 3 draws 95.9 Amps on a 415V three-phase supply.
What is the total dry weight of this 45 kW pump and motor assembly?
The complete Z875_07_3 assembly has an operational weight of 258.5 kg.
What motor model powers this high-capacity 7-stage pump?
The Z875-07-3 incorporates an L8W450 motor with water-lubricated thrust bearings.
