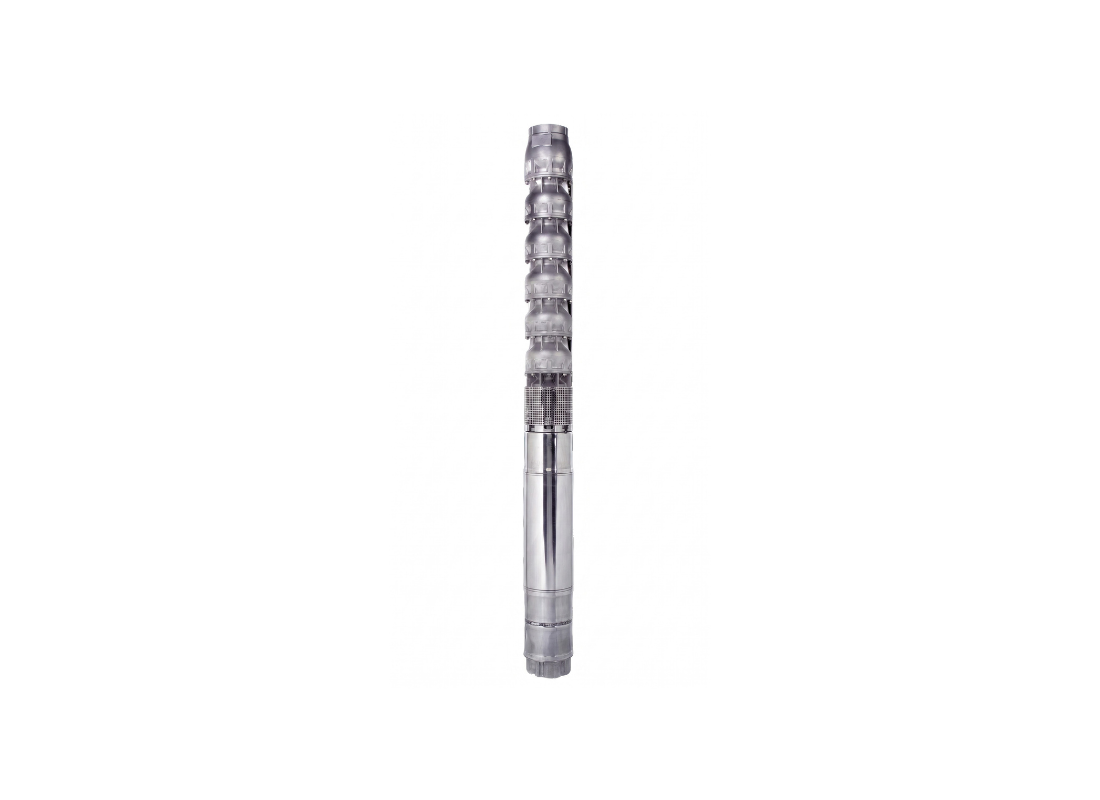

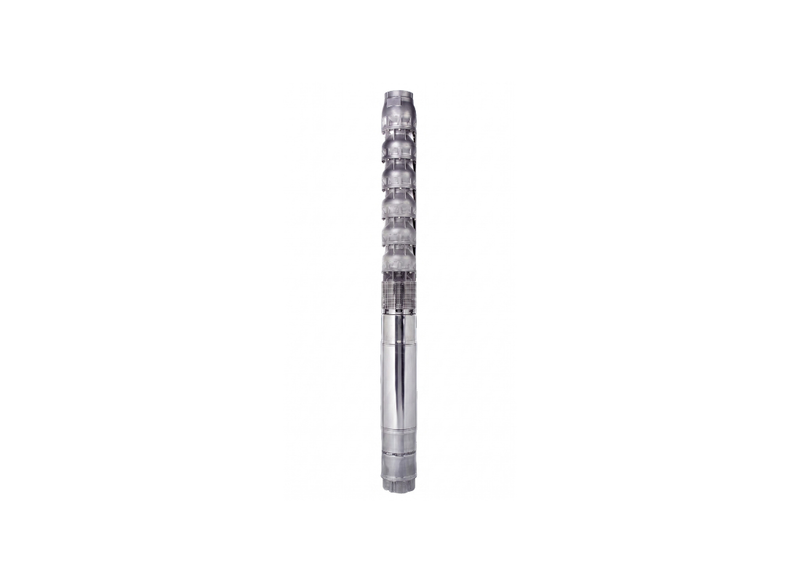

Aquifer extraction tasks for municipal water supply and irrigation sectors are facilitated by the Z895-02/2A-3S submersible pump. This model features a 316 Stainless Steel motor and is part of the Lowara Z895 series, offering high-volume lifting for distribution. It is suitable for vertical borehole installation or horizontal deployment in reservoirs provided the motor is situated at the lowest point.
Manufactured from cast 304 Stainless Steel, the suction support and diffusers handle aggressive groundwater environments. The two reduced diameter impellers are designed to process liquids containing suspended sand up to 100 g/m³ without structural degradation. The unit weighs 94.2 kg and operates in liquids reaching a maximum temperature of 25°C.
The 15 kW motor operates on a 415v supply with a rated current of 32.1 Amps for deep-well duty. It achieves a maximum total head of 45.6 m and a maximum flow rate of 1966.7 L/Min through a semi-axial hydraulic arrangement. These specifications enable dedicated groundwater management for recreational complexes and industrial cooling tower supply systems.
Thermal protection is provided by Class F insulation with an IP68 rating for submerged borehole service. The pump supports installation depths up to 350 meters and features double mechanical shaft seals for containment. Internal technopolymer POM-C wear rings and EPDM 70 bearing bushes provide hydraulic stability and support the duplex stainless steel shaft during rotation.
Features
- Mechanical connection of the 8-inch motor follows NEMA standards to allow for compatibility with industrial systems.
- The integrated non-return valve features a stainless steel spring to prevent liquid backflow and water hammer.
- A stainless steel suction strainer is fitted to exclude large solid particles from entering the hydraulic stages.
- EPDM 70 bearing bushes support the pump shaft assembly and handle the mechanical loads during rotation.
- Stainless steel cable covers provide mechanical protection for the power leads along the pump casing.
- Internal technopolymer POM-C wear rings maintain hydraulic clearances and reduce internal friction.
- A duplex stainless steel taperlock system secures the semi-axial impellers to the shaft for torque transfer.
FAQs
General Product FAQs
1. How do I choose the right pump for my setup?
Selecting the correct pump depends on your required flow (L/min), total head (vertical lift + friction loss), and power source. If you're unsure, contact our team and we’ll size the right system for you.
2. Do you offer support with system design or setup?
Yes — we provide expert advice to help you choose, install, and optimise your pump system. Whether it's a simple setup or a custom solution, we’re here to help.
3. Do you offer complete pump solutions or just products?
We don’t just sell pumps — we provide complete solutions. From accessories and control systems to full packaged setups, we can supply everything required to get your system running efficiently.
Shipping & Availability
1. Do you offer Australia-wide shipping?
Yes — we ship across Australia. Bulk or oversized orders may incur additional freight charges otherwise we offer free shipping over $100*
2. How long does delivery take?
Orders are typically shipped within 1–2 business days, with delivery taking approximately 2–7 days depending on your location.
3. What courier or freight companies do you use?
We work with a range of trusted carriers including Australia Post, StarTrack, TNT, and other national freight providers depending on the size and location of your order. This allows us to ensure fast, reliable delivery across Australia, including regional and remote areas.
Warranty & Support
1. Do your pumps come with a warranty?
Yes — all products are backed by manufacturer warranties. Warranty periods vary depending on the brand and product type.
2. What support do you offer after purchase?
We provide ongoing support including:
- Installation advice
- Troubleshooting
- Spare parts supply
- System upgrades
3. What is the warranty process if something goes wrong?
If you experience an issue, simply contact our team with your order details and a description of the problem. We’ll guide you through troubleshooting and, if required, arrange repair, replacement, or manufacturer assessment in line with warranty terms.
Why choose Foundation Pumps?
1. Why choose Foundation Pumps over other suppliers?
We focus on supplying proven, high-quality pump solutions backed by real industry knowledge. Unlike general resellers, we understand how these systems perform in the field and provide honest, practical advice to ensure you get the right solution the first time.
2. Do you offer expert advice before and after purchase?
Yes — we support you at every stage, from selecting the right pump through to installation and ongoing use. Our team is available to assist with sizing, troubleshooting, and system optimisation whenever you need it.
3. Do you stock trusted brands and quality products?
We carefully select and supply pumps from reputable manufacturers known for reliability and performance. Our range includes both industry-leading brands and high-value alternatives that meet Australian standards and conditions.
