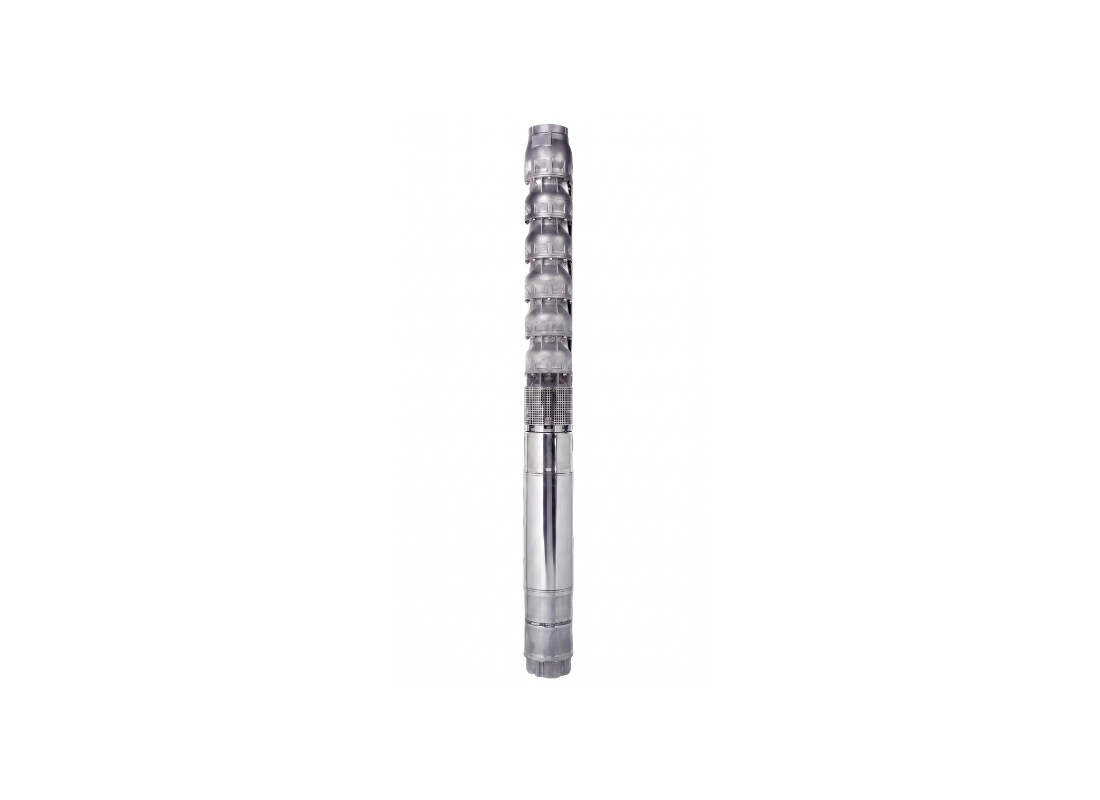

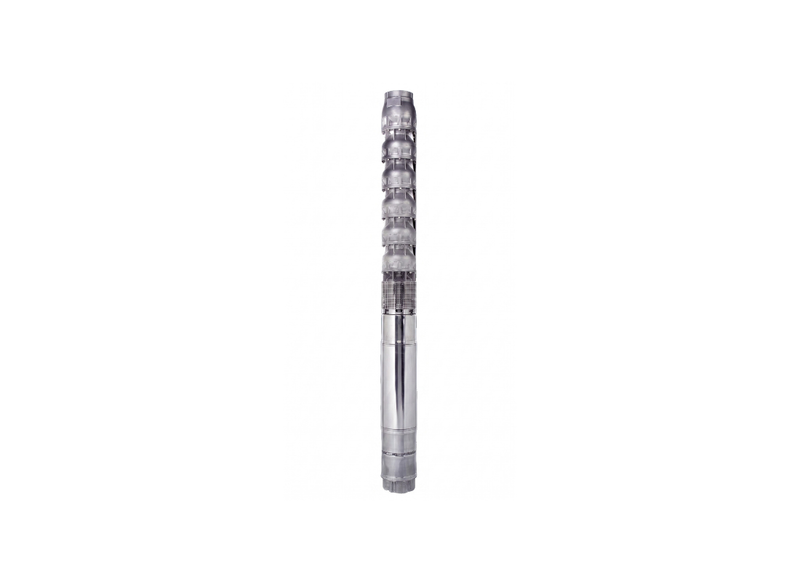

Large-scale agricultural irrigation and municipal distribution projects utilize the Z895-02-3 multistage submersible pump. Part of the Lowara Z895 range, this model provides high-volume lifting for groundwater distribution and pressure maintenance loops. The unit supports vertical installation in deep borehole wells or horizontal mounting in reservoirs provided the motor remains at the lowest position.
Constructed from cast 304 Stainless Steel, the hydraulic housing and suction support provide rigidity for industrial duty. The two full-diameter semi-axial impellers process clean water containing suspended sand content reaching 100 g/m³. The assembly weighs 102.2 kg and is specified for liquids with a maximum temperature of 25°C to support operational service life.
A 15 kW motor powers the unit on a 415v supply with a rated current of 32.1 Amps for borehole service. It achieves a maximum total head of 53.8 m and a maximum flow rate of 2300 L/Min while rotating at 2900 rpm. These performance parameters facilitate intensive clean water distribution and dedicated fluid optimization in hydrotherapy and industrial cooling systems.
Safety containment includes Class F motor insulation and an IP68 enclosure rating for submerged duty in aquifers. The pump allows for installation depths reaching 350 meters and features double mechanical seals for shaft containment. Internal wear rings manufactured from technopolymer POM-C and EPDM bearing bushes support the duplex shaft assembly and maintain clearances.
Features
- A duplex stainless steel taperlock system secures the semi-axial impellers to the shaft for torque transfer.
- EPDM 70 bearing bushes support the pump shaft assembly and handle the mechanical loads during rotation.
- Internal technopolymer POM-C wear rings maintain hydraulic clearances and reduce internal friction.
- Mechanical connection of the 8-inch motor follows NEMA standards to allow for compatibility with industrial systems.
- The integrated non-return valve features a stainless steel spring to prevent liquid backflow and water hammer.
- A stainless steel suction strainer is fitted to exclude large solid particles from entering the hydraulic stages.
- Stainless steel cable covers provide mechanical protection for the power leads along the pump casing.
