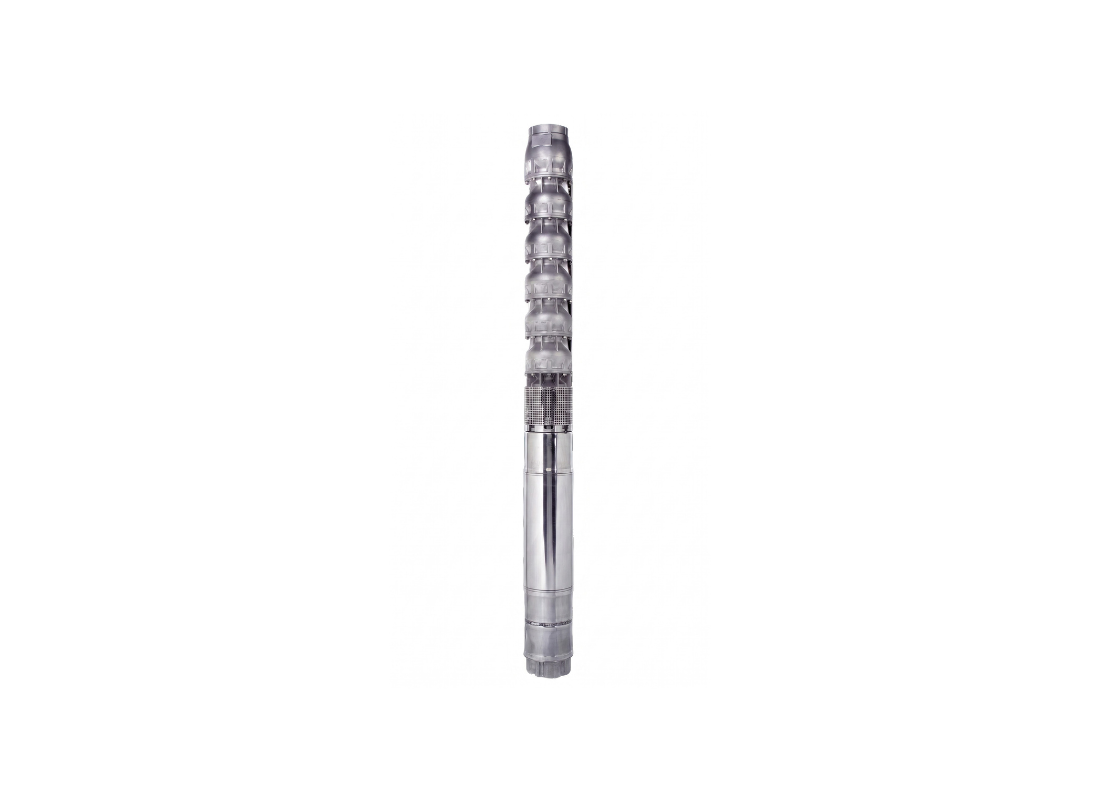

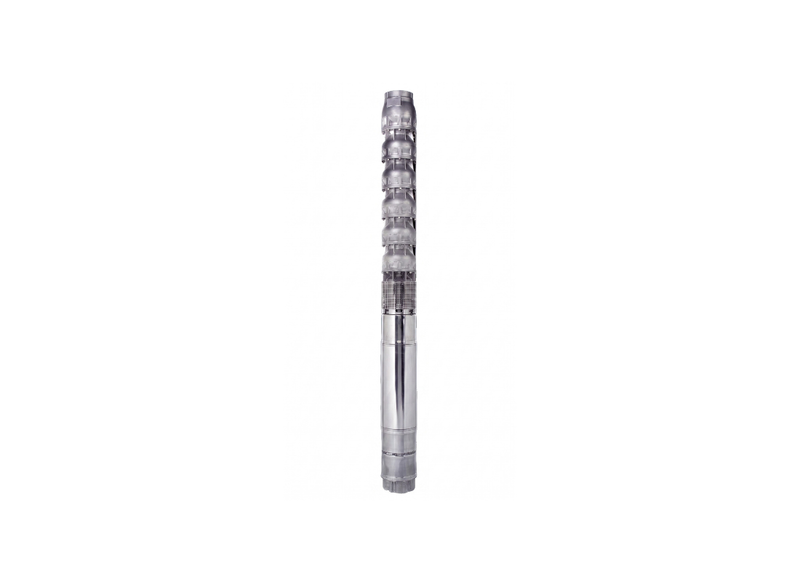

Lowara Z895-04/2B-3 Stainless Steel 30kW Deep Well 8" Submersible Pump with Semi-Axial Flow Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Borehole lifting for municipal distribution and consistent fluid optimization utilizes the Z895-04/2B-3 multistage submersible electric pump. Part of the Z895 range, this model provides high-volume lifting for dedicated hydrotherapy distribution and irrigation loops. It is suitable for vertical installation in wells or horizontal deployment in tanks where the motor is situated at the lowest point.
Constructed from cast 304 Stainless Steel, the delivery head and suction support handle the mechanical stress of borehole extraction. The four-stage hydraulic configuration includes two reduced diameter impellers to process water containing suspended sand content reaching 100 g/m³. The pump unit weighs 140.6 kg and is specified for liquids up to a maximum temperature of 25°C.
A 30 kW motor powers the hydraulic assembly on a 415v supply with a rated current of 63.8 Amps. The unit achieves a maximum total head of 92.1 m and a maximum flow rate of 1966.7 L/Min through a semi-axial flow arrangement. These performance values support intensive water lifting and pressure maintenance infrastructure in large residential or industrial complexes.
Motor protection features Class F insulation with an IP68 enclosure rating for deep-well submerged duty. The pump supports installation depths reaching 350 meters and incorporates double mechanical seals for shaft containment. Internal technopolymer POM-C wear rings and EPDM bearing bushes maintain hydraulic clearances and support the duplex stainless steel shaft assembly.
FEATURES
- A stainless steel suction strainer is fitted to exclude large solid particles from entering the hydraulic stages.
- Mechanical connection of the 8-inch motor follows NEMA standards for compatibility with industrial systems.
- EPDM 70 bearing bushes support the pump shaft assembly and handle the mechanical loads during rotation.
- Internal technopolymer POM-C wear rings maintain hydraulic clearances and reduce internal friction.
- The integrated non-return valve features a stainless steel spring to prevent liquid backflow and water hammer.
- Stainless steel cable covers provide mechanical protection for the power leads along the pump casing.
- A duplex stainless steel taperlock system secures the semi-axial impellers to the shaft for torque transfer.
SPECIFICATIONS
| Max Flow | 1966 L/Min |
| Max Head | 92.1 m |
| Power | 30 kW / 415v |
| Rated Current | 63.8 Amps |
| Suitable For | Agricultural Water Transfer |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 25°C |
| Outlet Size | 125 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How deep can the Lowara Z895-04/2B-3 push water from underground?
With a maximum head of 92.1 m, it easily lifts water from deep bore shafts and pushes it across long pipe runs without losing pressure.
Can the Lowara Z895 04 2B 3 handle dirty or gritty bore water?
The pump is designed for the documented sand/particle conditions; do not exceed the manufacturer's stated limits. The impellers are built from heavy-duty materials designed to resist abrasion and sediment wear.
Can I run the Lowara Z895-04-2B-3 off a farm generator or solar inverter?
Yes, as long as your generator matches its 30 kW / 415v requirement. It's built for continuous duty on 415V three-phase or standard rural power setups.
Is the Lowara Z895_04_2B_3 safe to use in mineral-heavy or salty groundwater?
The pump uses stainless-steel wetted components; suitability for saline or aggressive water should be confirmed against the manufacturer's liquid-compatibility limits.
