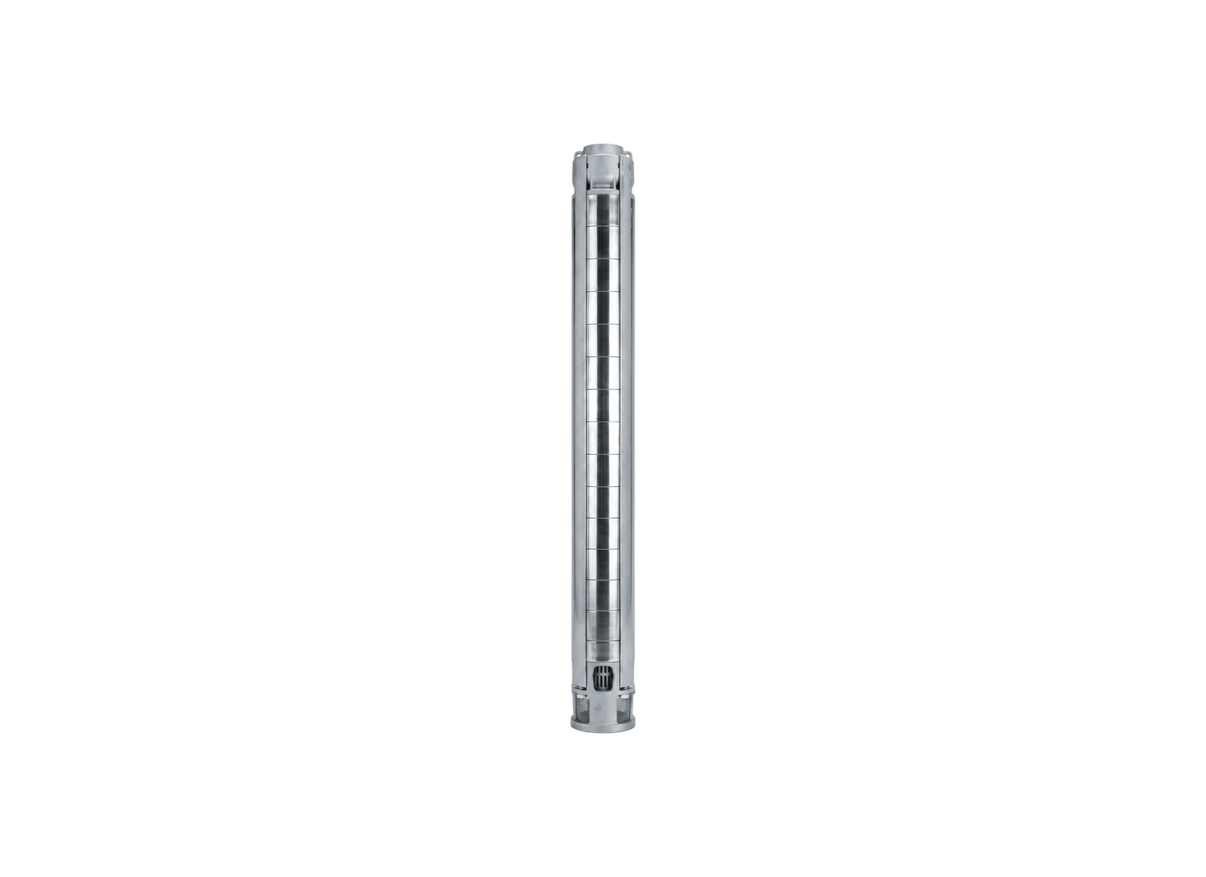

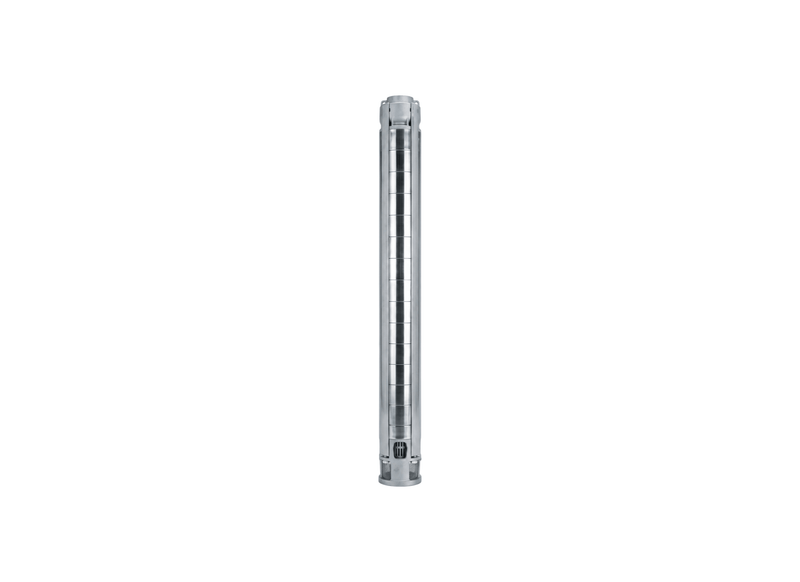

For deep-well extraction and dewatering systems requiring very high hydraulic lift, the ZN612/28 provides a twenty-eight-stage radial flow pump end for six-inch borehole installations. Its large number of hydraulic stages is intended for demanding deep-well applications and provides a maximum flow of 275 L/Min.
The ZN6 construction uses AISI 316 stainless steel, with AISI 316L stainless steel impellers and diffusers incorporating removable wear rings. The rotating shaft is Duplex stainless steel UNS S 31803 and the replaceable coupling is Duplex stainless steel UNS S 32304. With the standard L6W motor, operating water temperature is limited to 35°C and suspended sand up to 100 g/m³ is permitted.
The ZN612/28 reaches a maximum head of 318 metres, with hydraulic performance specified to EN ISO 9906 Grade 3B. Water is delivered through the standard Rp 2 1/2” (65 mm) threaded connection. A standard 6-inch NEMA motor connection permits coupling with an L6W submersible motor, and maximum immersion depth is 350 metres with L6W motors.
At the discharge end, the microcast ASTM CF-8M (AISI 316 cast) head and lower support incorporate the integrated stainless steel non-return valve. Safety-hook holes are provided for attachment during deep-well installation, supporting the controlled lowering and securing of the pump end.
FEATURES- The twenty-eight-stage radial layout provides the high hydraulic lift required for deep-well groundwater extraction.
- Removable wear rings allow the hydraulic clearances to be serviced when required.
- AISI 316L radial impellers and diffusers provide the specified stainless-steel hydraulic construction.
- The Duplex UNS S 31803 shaft provides the specified material for the rotating assembly.
- The replaceable Duplex UNS S 32304 coupling forms part of the motor coupling arrangement.
- AISI 316L tie rods and cable guard maintain the specified stainless-steel external construction.
- The microcast discharge head integrates the lower support and stainless steel non-return valve.
* Submersible motor sold separately - requires coupling and assembly
