Roll over image to zoom
SKU: ZN616/19

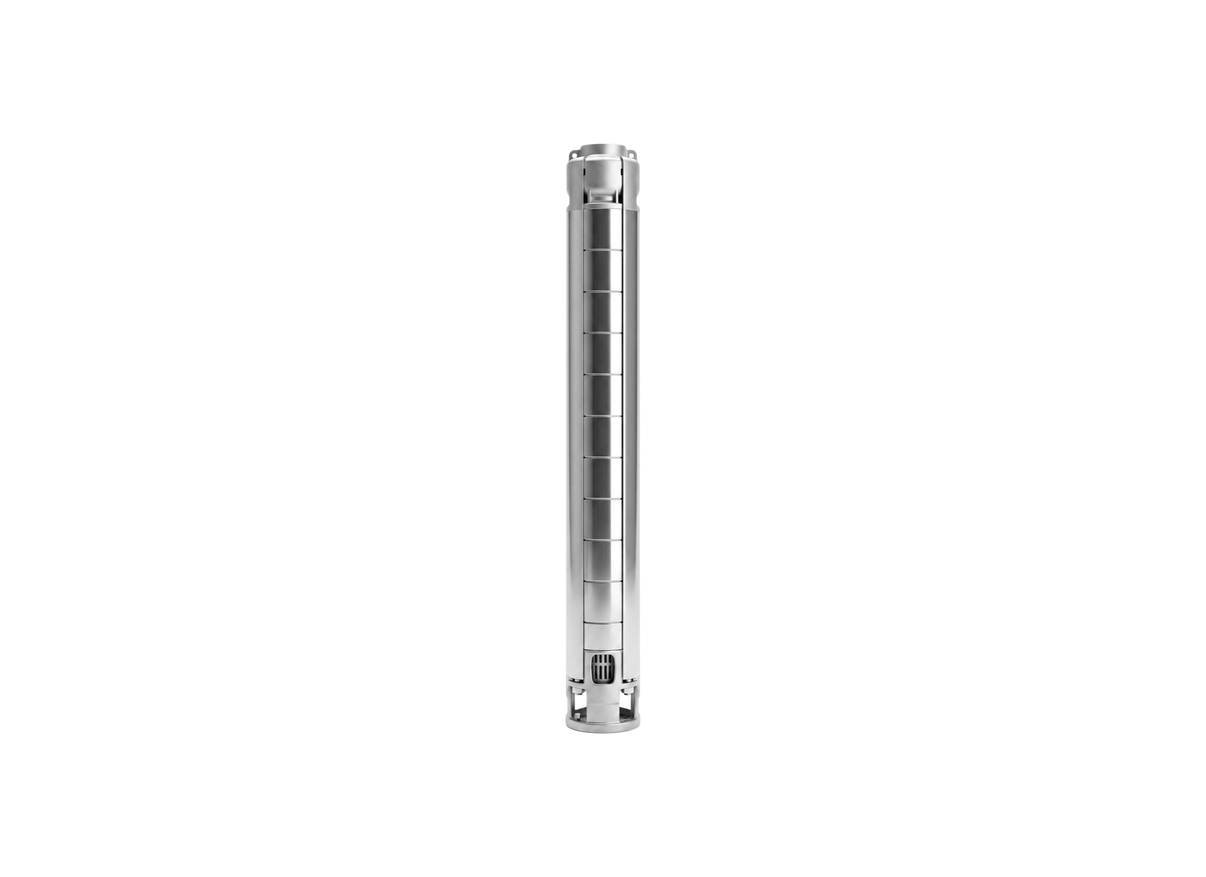

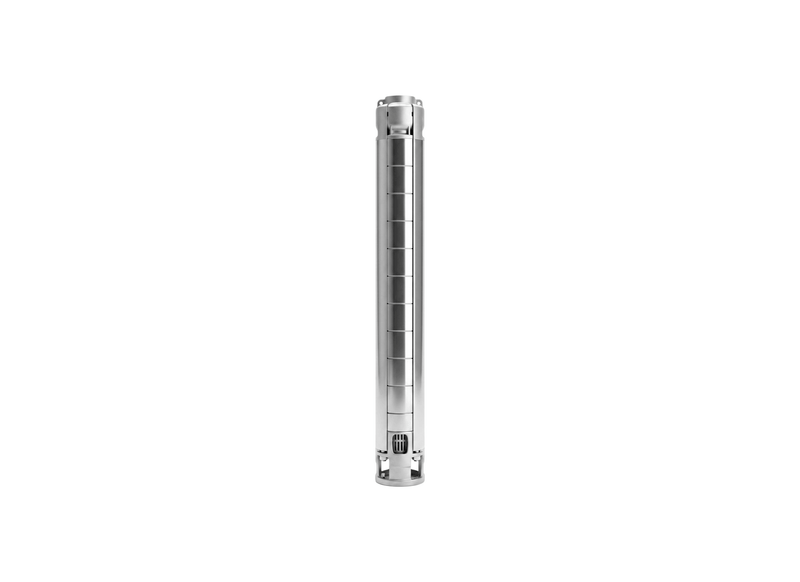

Lowara ZN616/19 Stainless Steel Deep Well 6" Submersible Bore Pump (Wet End Only) with Radial Flow Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
With nineteen radial stages, the ZN616/19 is configured for high-volume water supply where the borehole installation demands substantial hydraulic lift. The wet end provides a maximum flow of 367 L/Min and a maximum head of 234 metres.
AISI 316 stainless steel forms the pump-end body, while the impellers and diffusers are AISI 316L stainless steel and fitted with removable wear rings. The rotating shaft is Duplex stainless steel UNS S 31803 and the replaceable coupling is Duplex stainless steel UNS S 32304. Suspended sand up to 100 g/m³ is permitted.
The standard L6W motor limits operating water temperature to 35°C. Hydraulic performance is specified to EN ISO 9906 Grade 3B. The Rp 2 1/2– (65 mm) threaded connection provides the outlet, with a standard 6-inch NEMA motor connection and maximum immersion of 350 metres.
The microcast ASTM CF-8M (AISI 316 cast) discharge head and lower support incorporate an integrated stainless steel non-return valve. Safety-hook holes provide the attachment points needed for installation.
FEATURES
- Nineteen radial stages provide substantial lift for high-volume borehole supply.
- Removable wear rings make the hydraulic stages serviceable.
- AISI 316L impellers and diffusers provide the specified stainless-steel hydraulic construction.
- The Duplex UNS S 31803 shaft provides the rotating assembly.
- The replaceable Duplex UNS S 32304 coupling supports the motor connection.
- AISI 316L tie rods and cable guard extend the external stainless-steel construction.
- The microcast discharge head integrates the lower support and non-return valve.
* Submersible motor sold separately - requires coupling and assembly
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Is the Lowara ZN616_19 safe to use in mineral-heavy or salty groundwater?
The pump uses stainless-steel wetted components; suitability for saline or aggressive water should be confirmed against the manufacturer's liquid-compatibility limits.
What pipe size connects to the Lowara ZN616/19 discharge port?
It fits a standard 65 mm outlet connection. Using the right pipe diameter ensures you get the full 367 L/Min discharge flow.
Can I install the Lowara ZN616 19 horizontally inside a water tank?
Horizontal installation may be permitted where the manufacturer's installation requirements are met, including the required inclination and adequate motor cooling.
How many sprinklers can the Lowara ZN616-19 run at the same time?
With a peak flow of 367 L/Min, it delivers plenty of volume to run large farm irrigators or multiple garden sprinkler lines simultaneously.
