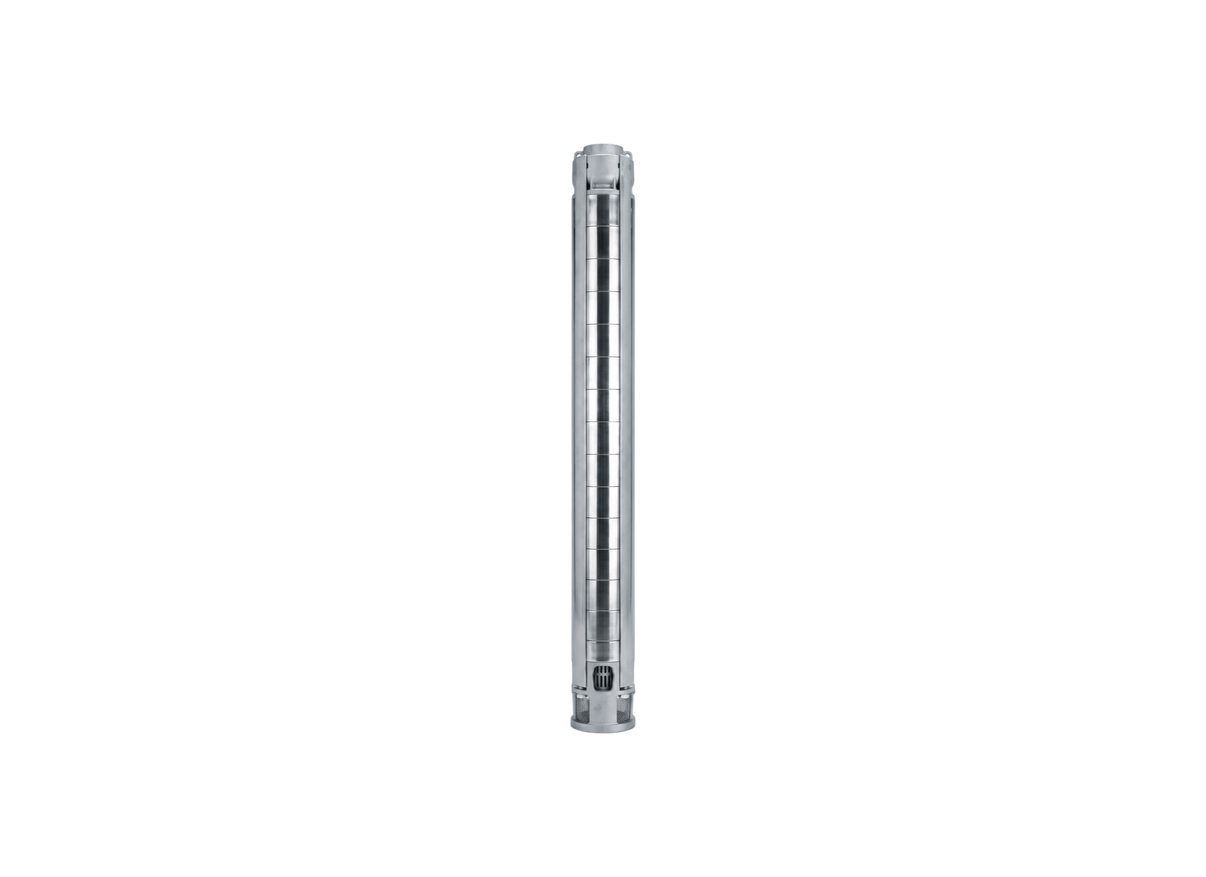

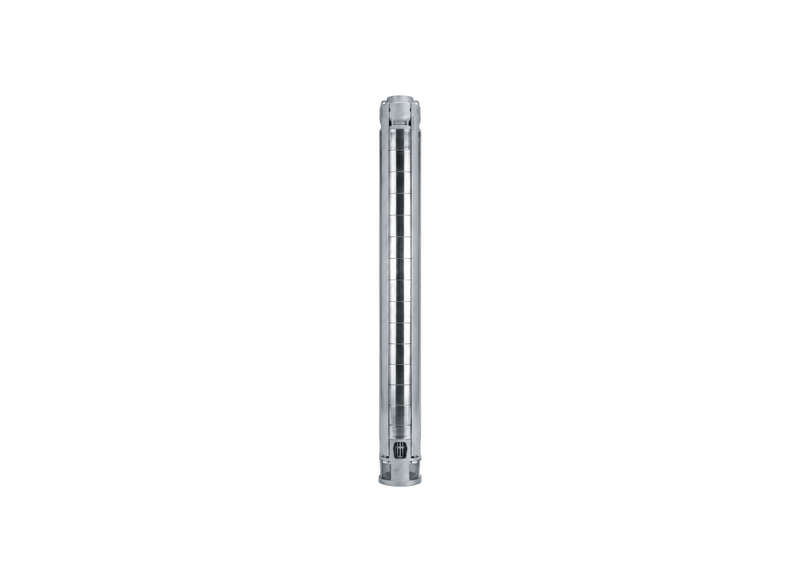

The ZN616/24 provides twenty-four radial stages for industrial pressure boosting installations requiring very high hydraulic lift from a six-inch borehole. Its maximum head reaches 294 metres, with a maximum flow of 367 L/Min.
AISI 316 stainless steel is used for the pump-end construction, while AISI 316L stainless steel forms the impellers and diffusers. Removable wear rings are incorporated into the hydraulic stages. The shaft is Duplex stainless steel UNS S 31803 and the replaceable coupling is Duplex stainless steel UNS S 32304. Suspended sand up to 100 g/m³ is permitted.
With the standard L6W motor, operating water temperature is limited to 35°C. Hydraulic performance is specified to EN ISO 9906 Grade 3B. The Rp 2 1/2” (65 mm) threaded connection provides the discharge, with a standard 6-inch NEMA motor connection and maximum immersion of 350 metres.
The discharge assembly comprises a microcast ASTM CF-8M (AISI 316 cast) head and lower support with an integrated stainless steel non-return valve. Safety-hook holes assist with lowering and securing the pump end.
FEATURES- Twenty-four radial stages provide the very high lift required for pressure boosting.
- Removable wear rings provide a maintainable hydraulic configuration.
- AISI 316L impellers and diffusers provide the specified stainless-steel hydraulic construction.
- The Duplex UNS S 31803 shaft supports the rotating assembly.
- The replaceable Duplex UNS S 32304 coupling forms part of the motor connection.
- AISI 316L tie rods and cable guard maintain the external stainless-steel construction.
- The microcast discharge assembly incorporates the integrated stainless steel non-return valve.
* Submersible motor sold separately - requires coupling and assembly
