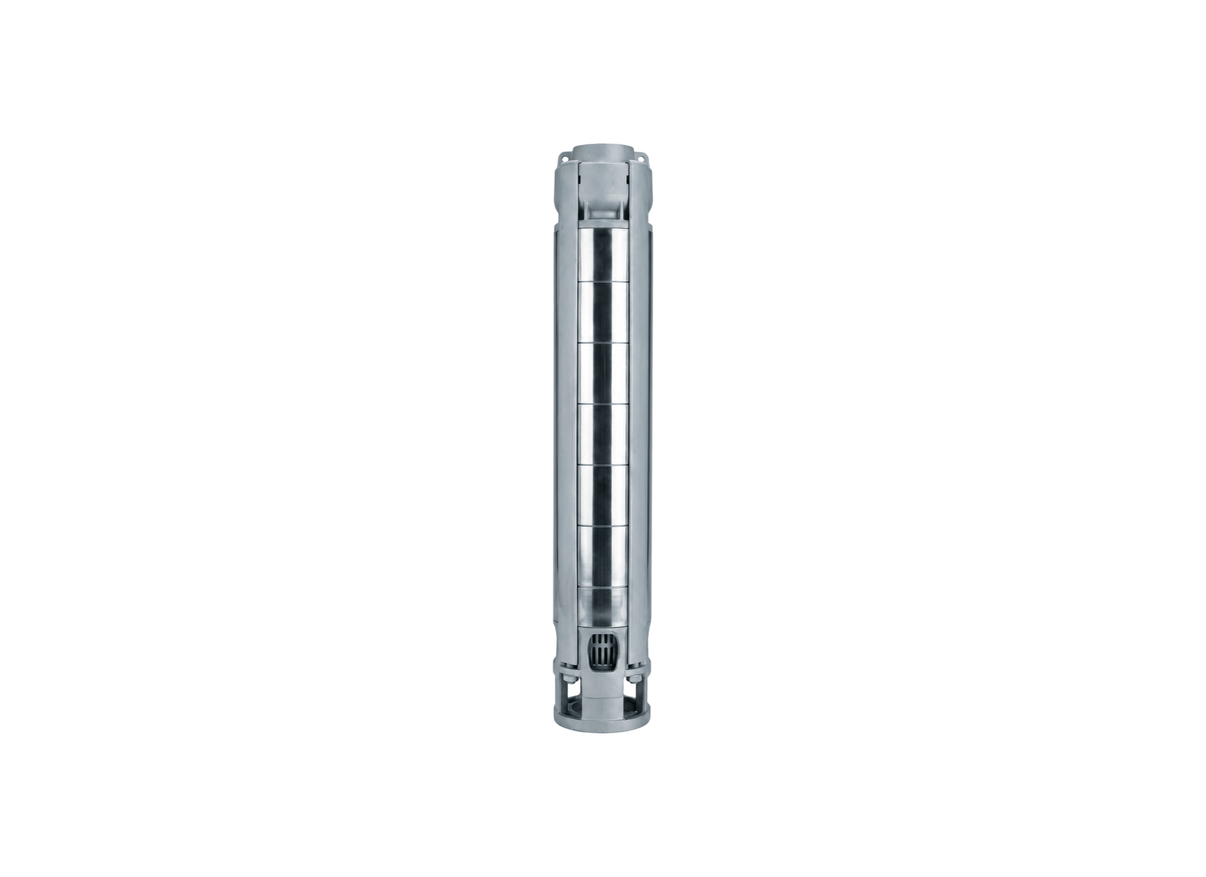

Lowara ZN616/6 Stainless Steel Deep Well 6" Submersible Bore Pump (Wet End Only) with Radial Flow Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
For high-volume irrigation from six-inch boreholes, the ZN616/6 provides a six-stage radial flow wet end with a maximum flow of 367 L/Min and a maximum head of 73 metres. Its configuration is intended for installations where substantial water volume and moderate hydraulic lift are required.
The pump end is manufactured from AISI 316 stainless steel. Its AISI 316L impellers and diffusers incorporate removable wear rings, while the rotating shaft is Duplex stainless steel UNS S 31803 and the replaceable coupling is Duplex stainless steel UNS S 32304. Suspended sand up to 100 g/m³ is permitted.
The standard L6W motor configuration limits operating water temperature to 35°C. Hydraulic performance is specified to EN ISO 9906 Grade 3B. Water exits through the Rp 2 1/2– (65 mm) threaded connection, with a standard 6-inch NEMA motor connection. Maximum immersion depth is 350 metres when used with an L6W motor.
The microcast ASTM CF-8M (AISI 316 cast) discharge head and lower support incorporate an integrated stainless steel non-return valve. Safety-hook holes provide the necessary attachment points for borehole installation.
FEATURES
- Six radial stages provide the hydraulic capacity required for high-volume irrigation.
- AISI 316L impellers and diffusers provide the specified stainless-steel hydraulic construction.
- Removable wear rings allow service access to hydraulic clearances.
- The Duplex UNS S 31803 shaft supports the rotating assembly.
- The replaceable Duplex UNS S 32304 coupling provides the specified connection.
- AISI 316L tie rods and cable guard form part of the external assembly.
- The microcast discharge head incorporates the lower support and non-return valve.
* Submersible motor sold separately - requires coupling and assembly
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Can I install the Lowara ZN616 6 horizontally inside a water tank?
Horizontal installation may be permitted where the manufacturer's installation requirements are met, including the required inclination and adequate motor cooling.
How many sprinklers can the Lowara ZN616-6 run at the same time?
With a peak flow of 367 L/Min, it delivers plenty of volume to run large farm irrigators or multiple garden sprinkler lines simultaneously.
What happens if my bore water level drops below the Lowara ZN616_6?
This is a wet-end assembly and does not include a motor. Pair it with a compatible motor and use the motor/controller manufacturer's recommended overload and dry-run protection.
How much maintenance does the Lowara ZN616/6 need?
Virtually none. The sealed bearings and shaft seals are lubricated for life, giving you years of trouble-free daily pumping.
