SKU: ZN631/20

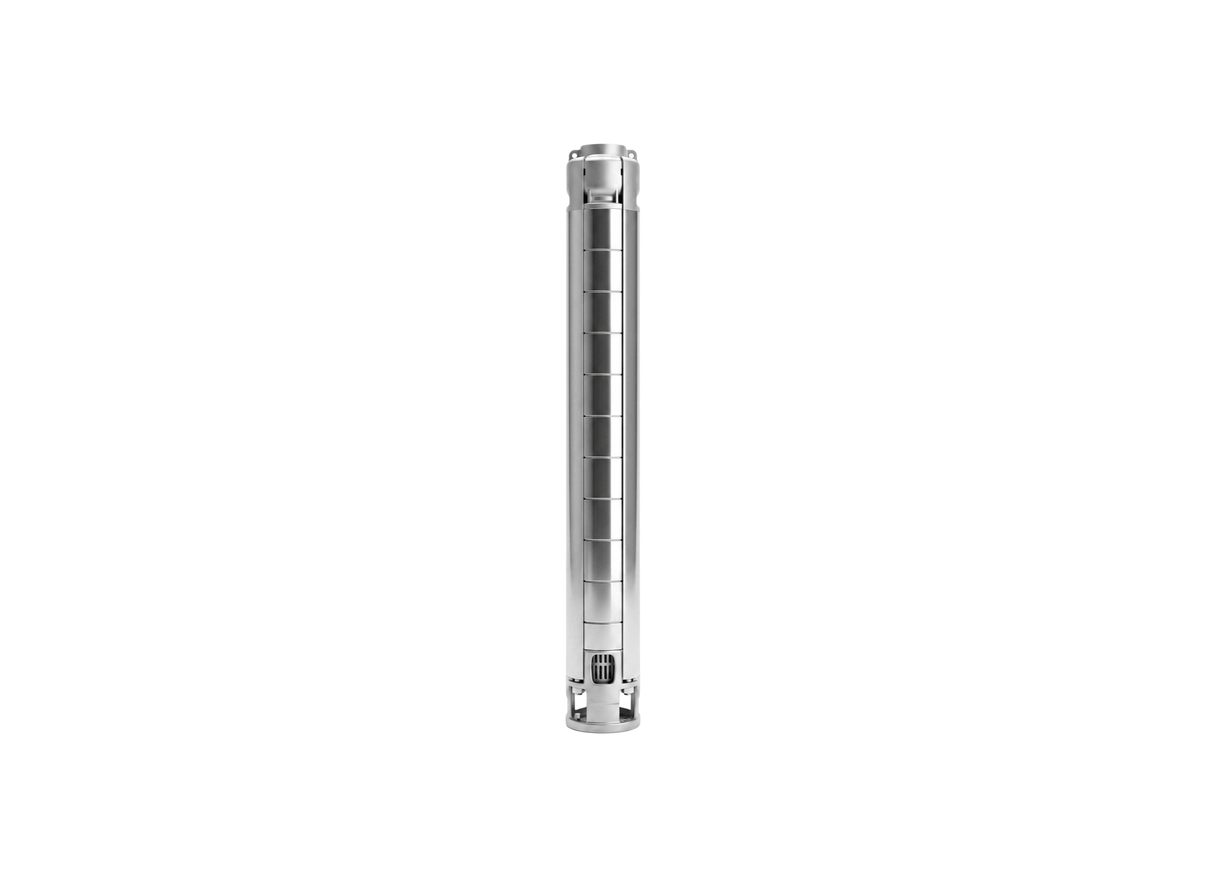

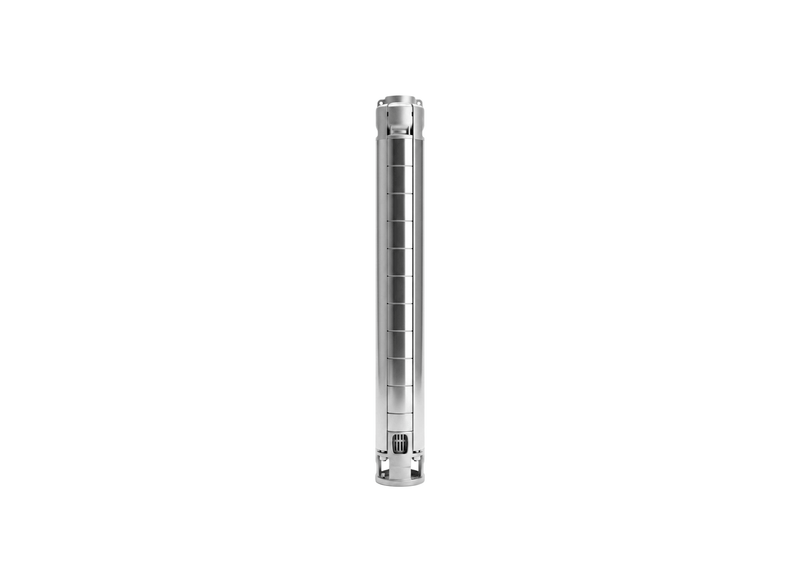

Lowara ZN631/20 Stainless Steel Deep Well 6" Submersible Bore Pump (Wet End Only) with Radial Flow Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
As a standalone component within the Z6 Series, the Lowara ZN631/20 represents a borehole wet end built for deep well supply. It is essential to pair this standalone pump end with a compatible 26 kW electric motor for deep-well water supply. The physical structure is designed for standard vertical placement inside standard 6-inch casings. It is suitable for pressure boosting and industrial networks and water distribution setups.
To support long-term physical stability during operation, the structural sleeve and discharge head are engineered from cast AISI 316 Stainless Steel. The multi-stage centrifugal hydraulic assembly consists of 20 stages, each incorporating an AISI 316L stainless steel radial impeller. The integrated radial impellers are designed to limit abrasive wear from sand particles, supporting water containing up to 100 g/m³ of suspended sand.
Once paired with its designated 26 kW electric motor (nominal current rating of 54.2 Amps), the coupled assembly achieves up to 287.6 m maximum head. This multi-stage hydraulic wet end generates a maximum flow of 667 L/Min through its Rp 80 mm threaded connection. All performance parameters are in accordance with manufacturer technical specifications.
The pump has a maximum external diameter of 142 mm for installation inside standard 6-inch borehole wells. Maximum pump immersion depth is 300 m when used with C4S motors and 350 m when used with L6W motors. The lower support bracket incorporates a standard 6" NEMA-compliant mount for simple mechanical motor integration. Safe coupling requires correct mechanical alignment of the pump shaft and the motor shaft during mechanical coupling.
FEATURES
- Constructed entirely from AISI 316 Stainless Steel for corrosion protection and structural durability.
- Equipped with 20 multi-stage radial centrifugal impellers manufactured from AISI 316L stainless steel.
- Includes an integrated spring-loaded AISI 316 non-return valve in the discharge head to prevent backflow and maintain system pressure.
- Features a high-strength Duplex Stainless Steel pump shaft and sleeves.
- Equipped with a standard 6" NEMA-compliant motor support bracket and coupling for easy motor integration.
- ErP/Ecodesign compliant with a Minimum Efficiency Index (MEI) of 0.40 or higher, optimizing energy performance.
- Designed with a compact 142 mm maximum external diameter for secure installation inside 6-inch deep well boreholes.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Can the Lowara ZN631 20 handle dirty or gritty bore water?
The pump is designed for the documented sand/particle conditions; do not exceed the manufacturer's stated limits. The impellers are built from heavy-duty materials designed to resist abrasion and sediment wear.
Can I run the Lowara ZN631-20 off a farm generator or solar inverter?
Yes, as long as your generator matches its 26 kW requirement. It's built for continuous duty on 415V three-phase or standard rural power setups.
Is the Lowara ZN631_20 safe to use in mineral-heavy or salty groundwater?
The pump uses stainless-steel wetted components; suitability for saline or aggressive water should be confirmed against the manufacturer's liquid-compatibility limits.
What pipe size connects to the Lowara ZN631/20 discharge port?
It fits a standard 80 mm outlet connection. Using the right pipe diameter ensures you get the full 667 L/Min discharge flow.
