SKU: ZN660/17-3

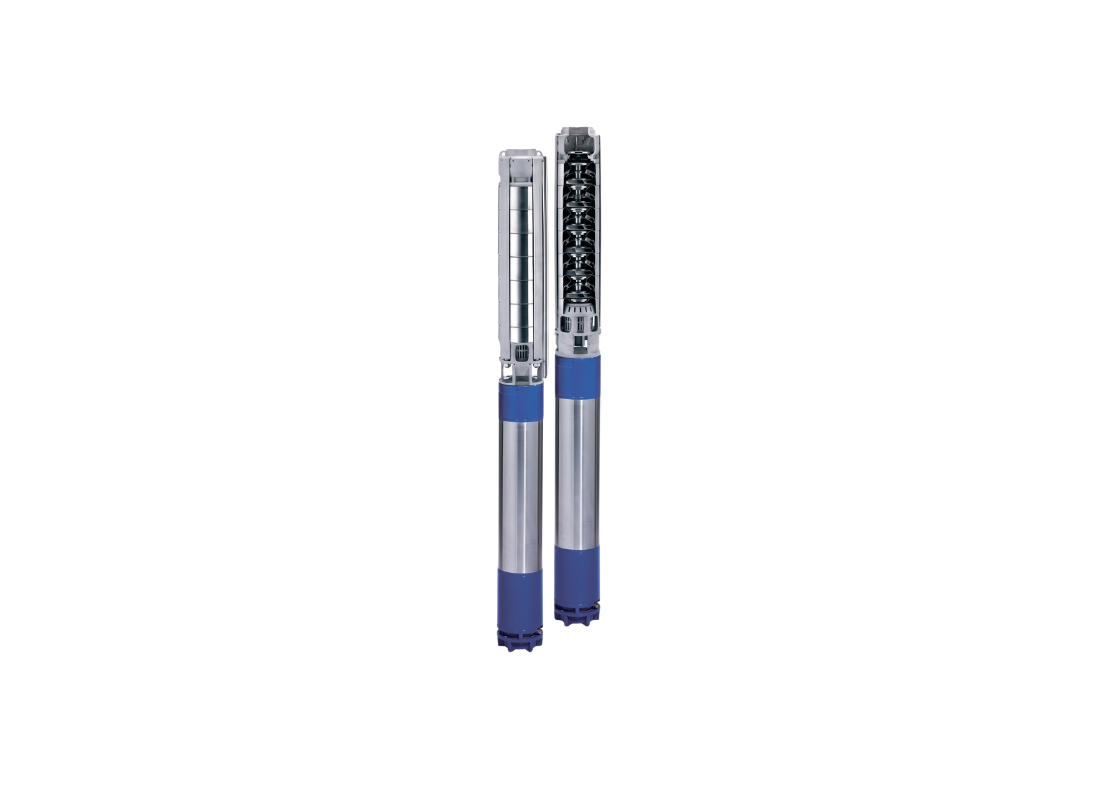

Lowara ZN660/17-3 Stainless Steel 26kW Deep Well 6" Submersible Pump with Radial Flow Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Aquatic facility water transfer and large-scale irrigation systems need pumps that combine high flow capacity with corrosion resistance. The Lowara ZN660/17-3 delivers 1300 L/Min from its 6-inch wet end with 6-inch motor, providing reliable water movement for water features, fountains, and extensive farm irrigation networks. The multi-stage hydraulic assembly provides stable performance across varying duty cycles.
AISI 316 stainless steel throughout the wet end offers excellent resistance to the corrosive effects of groundwater and suspended abrasives. The impeller incorporates a removable wear ring for maintenance convenience, while the integrated non-return valve prevents reverse flow. The suction strainer limits sand ingress to 100 grams per cubic metre, protecting internal clearances. The microcast stainless steel housing provides structural integrity.
Operating on a 415V three-phase supply, the 26 kW motor draws 56.5 Amps and achieves 181.8 metres of shut-off head. Flow capacity is 1300 L/Min through the 80 mm discharge outlet. Hydraulic performance conforms to EN ISO 9906 Grade 3B tolerances for reliable operation.
Immersion depths to 350 metres are supported with Class F insulation and IP68 rating. The Duplex stainless steel shaft and AISI 316L tie rods provide mechanical durability. NEMA motor compatibility simplifies assembly, and safety hook holes facilitate installation.
Z = 6" wet end with 6" Lowara L6C motor
FEATURES
- Discharge head features pre-drilled holes for safety hook attachment
- Shaft utilizes Duplex stainless steel UNS S 31803 metallurgy
- Bracing tie rods are built from AISI 316L stainless steel
- Mechanical coupling component is replaceable for standard servicing
- Suction strainer uses AISI 316L stainless steel mesh
- Flange assembly conforms to standard NEMA motor connections
- Maximum immersion depth of 350 metres with L6W motors
* Motor and pump supplied separately - requires assembly
SPECIFICATIONS
| Max Flow | 1300 L/Min |
| Max Head | 181 m |
| Power | 26 kW / 415v |
| Rated Current | 56.5 Amps |
| Suitable For | High-Pressure Boosting |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 80 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What maximum shut-off head does this 17-stage irrigation unit generate?
Achieving a maximum shut-off head of 181.8 metres, the ZN660/17-3 delivers up to 1300 L/Min.
What is the electrical current draw of the 26 kW motor?
The 26 kW three-phase motor of the ZN660-17-3 operates on 415V, drawing 56.5 Amps.
What maximum concentration of suspended sand can the pump handle?
Suspended sand concentrations up to 100 grams per cubic metre are managed by the ZN660 17 3 suction strainer.
What material is used for the structural tie rods?
Structural rigidity in the ZN660_17_3 is provided by AISI 316L stainless steel bracing tie rods.
What is the maximum borehole immersion depth supported?
Submersion down to 350 metres is supported by the IP68-rated ZN660/17-3 when paired with an L6W motor.
