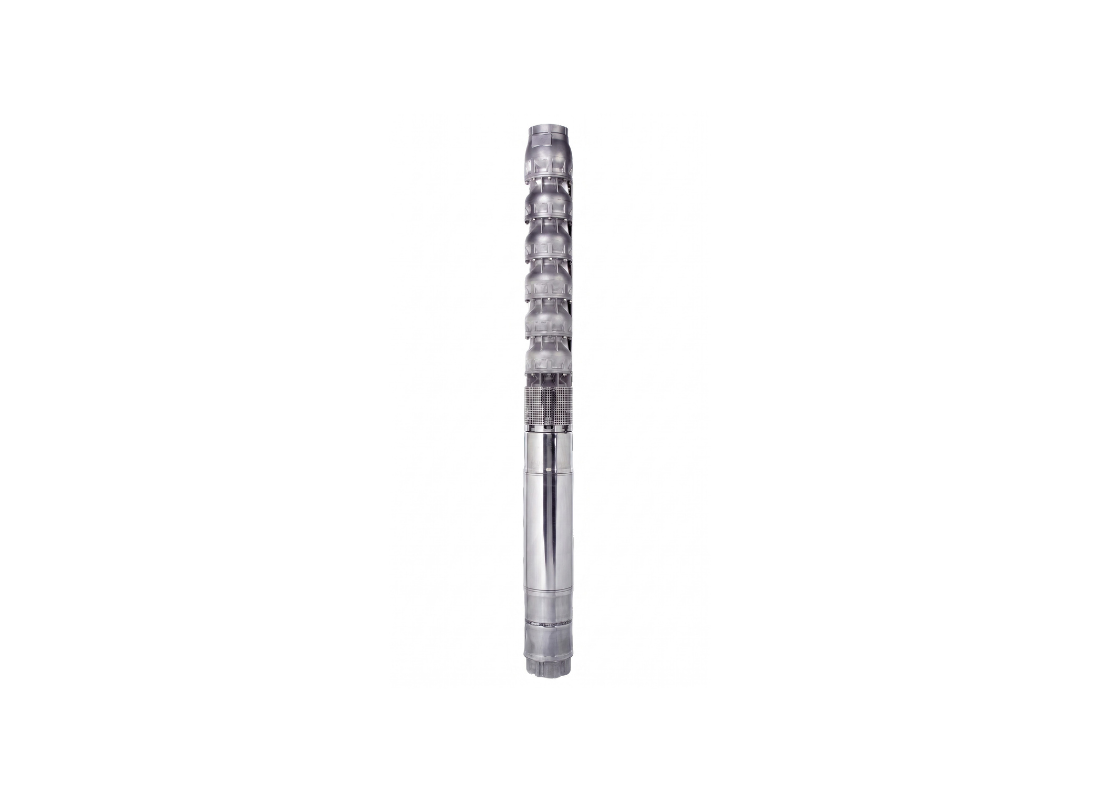

Lowara ZN855-04/2A-3R Stainless Steel 15kW Deep Well 8" Submersible Bore Pump with Semi-Axial Flow Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Performance characteristics based on precise hydraulic matching define this four-stage 8-inch submersible pump intended for irrigation networks. The reduced impeller configuration is optimized for lifting groundwater from deep underground reservoirs to surface distribution points. The unit supports vertical well installation or horizontal deployment provided the motor remains in the lowest position during service. This model serves as an efficient extraction tool for municipal water supply projects requiring significant lift potential.
Hydraulic characteristics for this configuration include a maximum head of 96.3 m and delivery rates scaling up to 1216 L/Min. The electrical section consists of a 15 kW motor with a rated current of 32.1 Amps from a 415v three-phase supply. Efficiency is achieved through a semi-axial hydraulic arrangement rotating at 2900 rpm for efficient lifting in borehole environments. All technical performance values are verified for liquids with standard density and kinematic viscosity.
Material construction features cast AISI 316 Stainless Steel for the wetted components including the suction casing and diffusers. This variant is equipped with a Duplex Stainless Steel motor, providing enhanced material performance in aggressive borehole media. The system handles liquids with suspended sand concentrations up to 100 g/m³ and is rated for temperatures of 25°C. A duplex stainless steel pump shaft is fabricated to withstand the mechanical stresses of four hydraulic stages.
Ratings include a 350-meter maximum immersion depth and a 198 mm overall diameter including cable protection covers. A non-return valve with an integrated stainless steel spring is built into the assembly to prevent reverse rotation and backflow. Internal wear surfaces are managed by technopolymer POM-C wear rings and EPDM 70 bearing bushes supporting the shaft alignment. This electric pump is designed for continuous duty cycles in municipal infrastructure and industrial projects.
FEATURES
- A duplex stainless steel taperlock system secures the impellers to the shaft for torque transfer.
- Mechanical connection of the 8-inch motor follows NEMA standards for industrial system compatibility.
- A stainless steel suction strainer excludes large particles from entering the hydraulic stages.
- EPDM 70 bearing bushes support the pump shaft assembly and handle mechanical loads during rotation.
- Internal technopolymer POM-C wear rings maintain hydraulic clearances and reduce internal friction.
- The integrated non-return valve features a stainless steel spring to prevent fluid backflow.
- Stainless steel cable covers provide mechanical protection for motor power leads along the casing.
SPECIFICATIONS
| Max Flow | 1216 L/Min |
| Max Head | 96.3 m |
| Power | 15 kW / 415v |
| Rated Current | 32.1 Amps |
| Suitable For | Livestock Water Supply |
| Body Material | AISI 316 Stainless Steel |
| Liquid Temperature | Maximum 25°C |
| Outlet Size | 125 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does the 15 kW / 415v motor rating influence electrical breaker requirements?
Electrical circuit breakers protecting the ZN855-04/2A-3R should be rated for its 15 kW / 415v 415V three-phase motor.
What vertical head range makes this pump suitable for deep borehole extraction?
Deep shaft water recovery relies on the ZN855-04-2A-3R, which offers a total dynamic head capacity of 96.3 m.
What high-volume flow performance is delivered through the 125 mm outlet port?
High-flow water extraction with the ZN855 04 2A 3R produces up to 1216 L/Min through its standard 125 mm discharge port.
How does the stainless motor housing protect internal electrical windings from corrosion?
The motor housing of the ZN855_04_2A_3R features cast AISI 316 stainless steel hydraulics and a Duplex Stainless Steel motor to protect internal windings from groundwater ingress.
Is this 8-inch pump suitable for both vertical well shafts and horizontal pipelines?
Dual-mounting capability permits the ZN855-04/2A-3R to function in vertical deep wells or horizontal transfer pipelines.
