SKU: ZN855-09/2A-3S

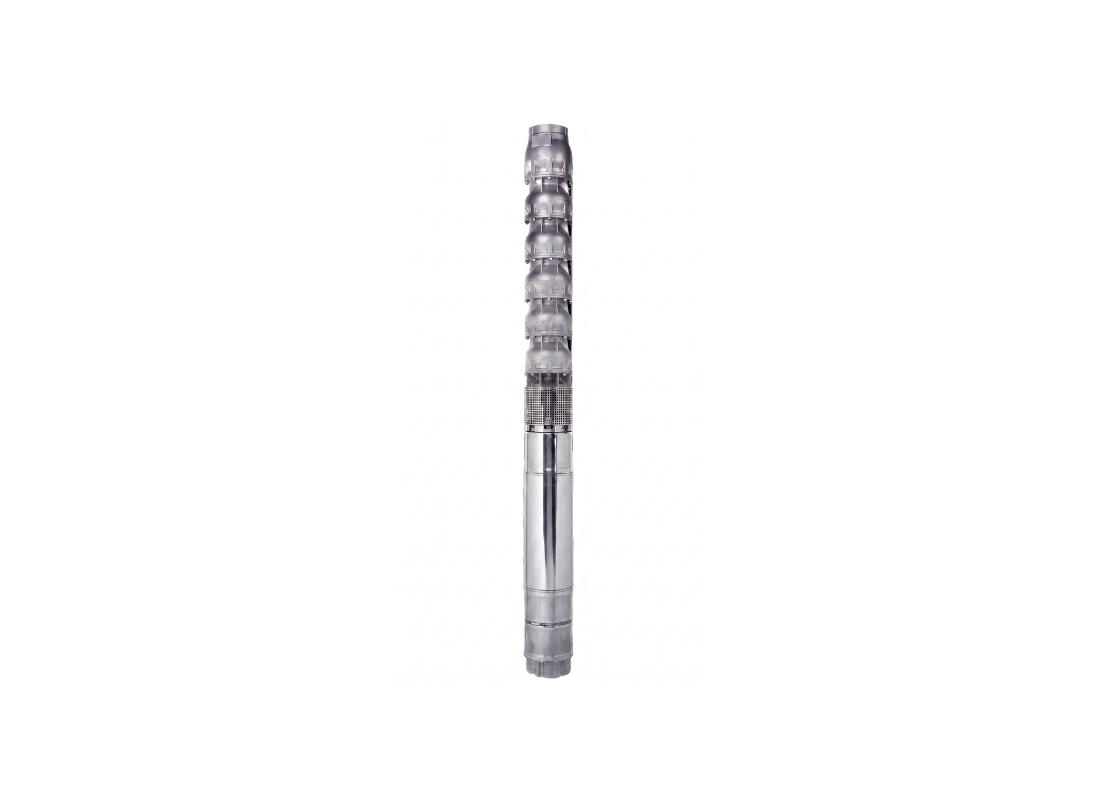

Lowara ZN855-09/2A-3S Stainless Steel 37kW Deep Well 8" Submersible Bore Pump with Semi-Axial Flow Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Operating environment requirements for high lift potential are met by the nine-stage configuration of this 8-inch submersible pump. It is designed for intensive water distribution in agricultural and industrial sectors requiring high volume delivery from underground borehole sources. The assembly is compatible with vertical installations in deep wells or horizontal deployment provided a minimum 3-degree incline is maintained. This configuration serving municipal infrastructure projects needing precise pressure thresholds.
Technical performance parameters include a maximum head of 231.1 m and a flow capacity of 1216 L/Min through the 125 mm outlet. Equipped with a 37 kW motor for 415v three-phase power, the unit draws a rated current of 81.8 Amps during continuous duty. The semi-axial flow design achieves nominal delivery rates for high efficiency in water transfer tasks at 2900 rpm. performance metrics are verified for liquids with a density of 1.0 kg/dm³ during service.
Primary components such as the impellers, diffusers, and delivery head are made of cast AISI 316 Stainless Steel to handle aggressive borehole media. The motor is also constructed from 316 Stainless Steel and is rated for operation in liquids at temperatures up to 25°C. The system handles liquids containing suspended sand levels of 100 g/m³ through its nine stages and reduced impellers. A duplex stainless steel shaft and coupling are used to transmit power to the assembly.
The unit supports immersion depths reaching 350 meters and features a built-in non-return valve with a stainless steel spring to prevent backflow. Physical dimensions include a 198 mm maximum overall diameter, fitting within standard 8-inch borehole well casings. Internal tolerances are managed by technopolymer POM-C wear rings and EPDM 70 bearing bushes supporting the shaft assembly. This design is intended for continuous industrial duty where reliable flow capacity is required.
FEATURES
- A duplex stainless steel taperlock system secures the impellers to the shaft for torque transfer.
- Stainless steel cable covers provide mechanical protection for motor power leads along the casing.
- Internal technopolymer POM-C wear rings maintain hydraulic clearances and reduce internal friction.
- The integrated non-return valve features a stainless steel spring to prevent fluid backflow.
- Mechanical connection of the 8-inch motor follows NEMA standards for industrial system compatibility.
- A stainless steel suction strainer excludes large particles from entering the hydraulic stages.
- EPDM 70 bearing bushes support the pump shaft assembly and handle mechanical loads during rotation.
SPECIFICATIONS
| Max Flow | 1216 L/Min |
| Max Head | 231.1 m |
| Power | 37 kW / 415v |
| Rated Current | 81.8 Amps |
| Suitable For | Long Distance Water Supply |
| Body Material | AISI 316 Stainless Steel |
| Liquid Temperature | Maximum 25°C |
| Outlet Size | 125 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How far vertically can this pump elevate groundwater from borehole shafts?
Capable of reaching a maximum total head of 231.1 m, the ZN855-09/2A-3S delivers strong vertical pressure for deep well water extraction.
What discharge pipe diameter is required for fitting drop pipes?
Outputting up to 1216 L/Min through its 125 mm outlet port, the ZN855-09-2A-3S provides rapid fluid distribution for water networks.
What metallurgical construction protects the pump and motor casing?
Designed with cast AISI 316 stainless steel pump casing with a duplex stainless steel motor, the ZN855 09 2A 3S delivers robust resistance against chemical wear in mineralized well water.
What voltage and phase configuration powers this deep-well motor?
Operating on a 415V three-phase electrical supply, the ZN855_09_2A_3S utilizes a 37 kW / 415v motor engineered for continuous duty.
Can this borehole unit be deployed horizontally inside storage tanks?
Yes. The ZN855-09/2A-3S features a built-in spring-loaded non-return check valve in the delivery head to prevent fluid backflow.
