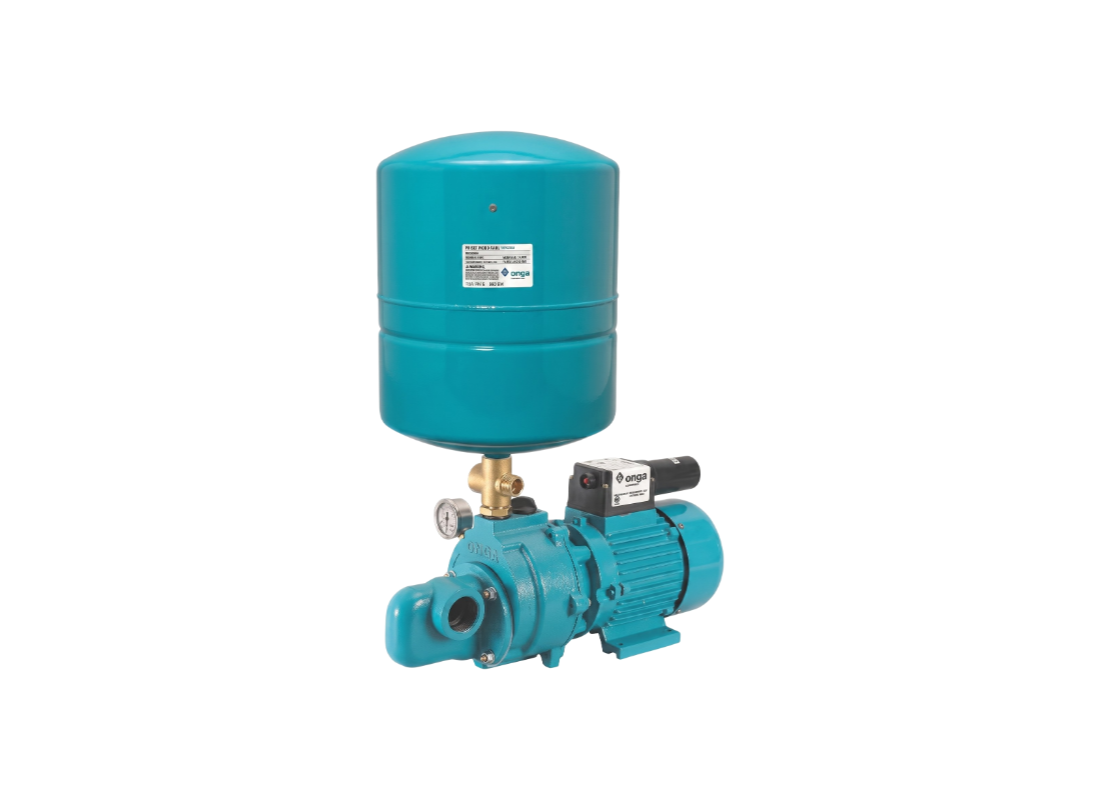

Rural water supply and automatic domestic pressure boosting are the intended functions for this FarmMaster JJ600 kit. It is engineered to provide a consistent clean water supply for homes and rural properties from diverse sources such as tanks, creeks, and dams. The system is built for reliable service in environments requiring high-pressure automatic delivery.
Rated performance for this 1.1 kW model includes a maximum total head of 63 m and a maximum flow rate of 137 L/Min. Operating on a 240v single-phase supply, the motor draws a rated current of 6.4 Amps at 50Hz. These operating parameters define the hydraulic output for demanding residential and agricultural pressure networks.
The unit features a horizontal single-stage centrifugal design with jet and venturi assisted performance. This configuration allows for shallow well lifts up to 7.6m and deep well lifts up to 37m when used with suitable injectors. The closed impeller is optimized for the high-efficiency transfer of debris-free water in surface-mounted installations.
Construction utilizes a heavy-duty Cast Iron pump casing and injector housing for superior structural rigidity. The internal assembly includes a 20% glass-filled polycarbonate impeller and a professional carbon/ceramic mechanical seal with EPDM bellows. The kit includes a factory-fitted pressure switch and a 24L steel pressure tank.
FEATURES
- Strong Cast Iron construction for the pump casing and injector housing ensuring long-term durability.
- Jet and venturi assisted performance provides reliable suction lift and high-head hydraulic delivery.
- Polycarbonate impeller reinforced with 20% glass fiber for stability during continuous high-speed rotation.
- Shallow well lifts to 7.6m and deep well lifts to 37m achievable with varied injector combinations.
- Automatic kit configuration featuring a 24L steel pressure tank to manage domestic water demand cycles.
- Factory-fitted pressure switch provides reliable automatic control for domestic and irrigation systems.
- Mechanical seal with ceramic and resin-impregnated carbon graphite faces for a professional watertight barrier.
- Stainless steel seal spring and internal shaft sleeve provide protection against corrosive water environments.
