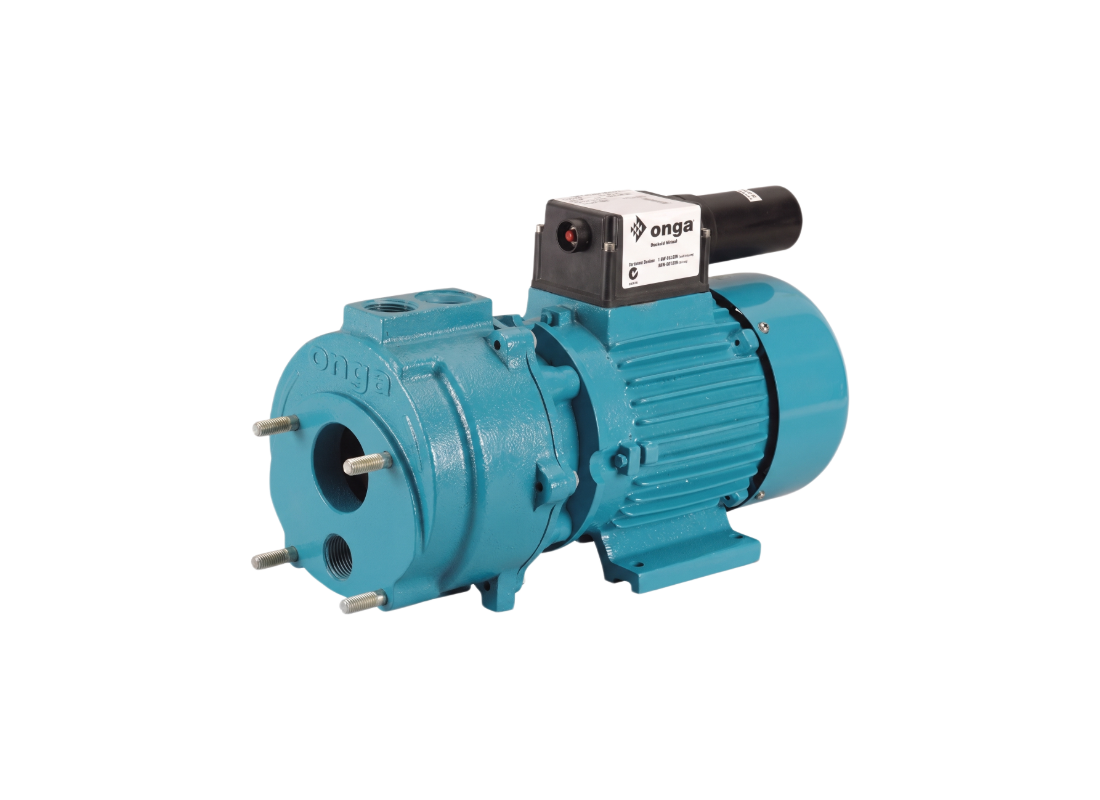

Onga FarmMaster JJ600 Cast Iron Three Phase Jet-Assisted Pump for Stock Watering with Closed Impeller

Stock watering, irrigation, and water transfer in rural environments are the core service areas for this 415v FarmMaster JJ600 unit. It is engineered for industrial and domestic pressure systems requiring reliable water delivery from bores, dams, and creeks. The unit manages clean water transfer in locations where a three-phase power supply is available.

Hydraulic performance reaches a maximum total head of 63 m and a maximum flow rate of 137 L/Min at 50Hz. This 1.1 kW three-phase motor draws a rated current of 2.6 Amps on a 400v/415v supply. These specifications establish the hydraulic output required for rural pressure boosting and large-scale agricultural transfer tasks.

The pump features a horizontal single-stage surface mounted centrifugal design with jet and venturi assisted performance. This functional configuration allows for shallow well lifts up to 7.6m and deep well lifts up to 37m when used with the appropriate injector. The closed impeller design is optimized for pumping debris-free water with high efficiency.

Construction consists of a heavy-duty Cast Iron pump casing and injector housing, providing the structural rigidity needed for rural installations. The internal assembly features a glass-filled polycarbonate impeller and a high-durability carbon/ceramic mechanical seal. This model is supplied as a standalone pump with an integrated pressure switch and gauge.

FEATURES

• Strong Cast Iron construction for the pump casing and injector housing ensures long-term mechanical durability.
• Jet and venturi assisted performance provides reliable suction and high-pressure output in rural applications.
• Closed polycarbonate impeller reinforced with 20% glass fiber for stability during high-speed centrifugal rotation.
• Versatile suction capability allowing shallow well lifts to 7.6m and deep well lifts to 37m with various injectors.
• Integrated pressure switch and pressure gauge are factory-fitted to the unit for functional pressure control.
• Surface mounted horizontal single-stage centrifugal design ensures ease of installation and maintenance access.
• Internal mechanical seal with carbon graphite and ceramic faces provides a reliable watertight motor barrier.
• Three-phase induction motor rated at IP44 with Class B insulation for reliable service in agricultural settings.

Note: Injectors Or Housing To Be Purchased Separately. Contact Us.
