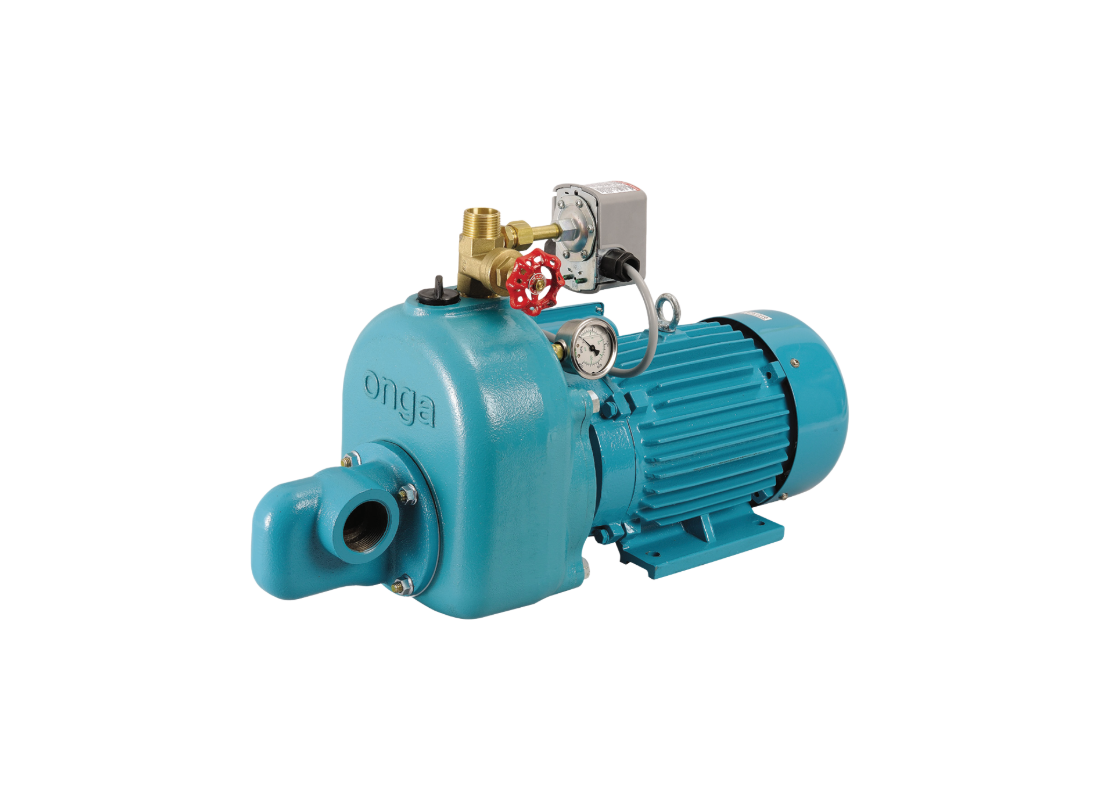

High-performance domestic supply and rural pressure boosting are the intended applications for this 415v FarmMaster OJ700 model. It manages clean water transfer from varied sources such as bores, dams, and rivers in agricultural and light industrial environments. The unit is built for service where a reliable three-phase power supply is available for continuous duty.
Hydraulic output for this 1.5 kW three-phase model reaches a maximum total head of 77 m and a maximum flow rate of 162 L/Min. Drawing a rated current of 3.6 Amps at 50Hz, the motor provides the hydraulic performance needed for high-demand rural networks. These specifications define the capacity for extensive irrigation and stock watering tasks.
Mechanical delivery is provided by a jet-assisted horizontal single-stage centrifugal assembly. This configuration enables shallow well lifts to 7.6m and deep well lifts to 40m when coupled with suitable injectors, providing versatility across different water sources. The closed impeller system is designed for pumping debris-free water at high pressures.
Structural hardware features a heavy-duty Cast Iron pump body and injector housing for maximum mechanical strength. The internal assembly utilizes a glass-filled polycarbonate impeller and a professional carbon/ceramic mechanical seal with EPDM bellows. This model is supplied with a factory-fitted pressure switch and gauge for automatic system control.
FEATURES
- Strong Cast Iron pump casing and injector housing designed to withstand demanding rural and industrial service.
- Jet assisted pressure pump design utilizes a venturi system for enhanced suction and high-head delivery.
- 20% Glass Filled Polycarbonate closed impeller provides mechanical stability and high-efficiency fluid movement.
- Capable of shallow well lifts to 7.6m and deep well lifts up to 40m with appropriate injector combinations.
- Factory-fitted pressure switch and integrated pressure gauge provide immediate automatic pressure management.
- Mechanical seal features a stationary ceramic face and resin-impregnated carbon graphite rotating face for durability.
- Heavy-duty 415v three-phase induction motor rated at IP44 for functional reliability in outdoor installations.
- Shaft sleeve manufactured from stainless steel to protect the motor shaft from corrosion and wear.
Note: Injectors Or Housing To Be Purchased Separately. Contact Us.
