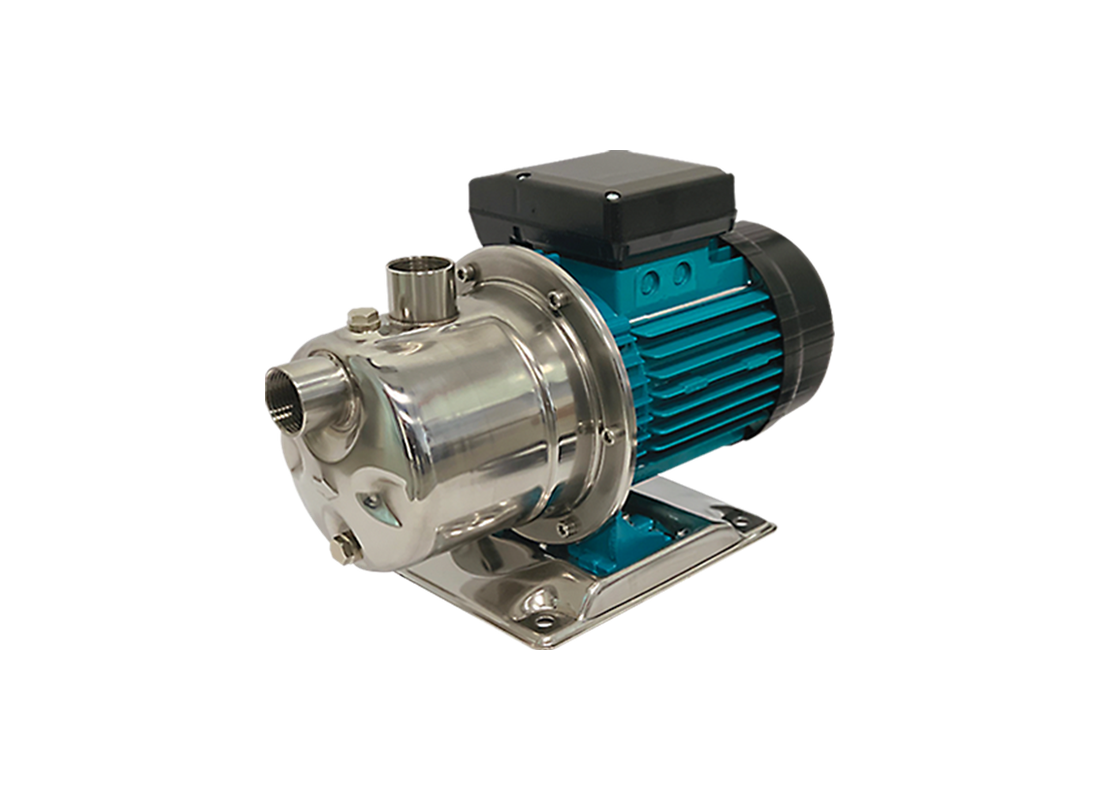

The Onga JS60 self-priming jet pump is designed for domestic water supply, pressure boosting, and general water transfer applications where reliable suction performance is required. It is well suited for drawing water from wells, tanks, and underground sources, making it ideal for homes, small farms, and irrigation systems.
Built with a stainless steel pump casing and mounted on a corrosion-resistant stainless steel base, the JS60 ensures durability in demanding environments. The pump features precision-moulded internal components including the jet, venturi, and impeller, which enhance hydraulic efficiency and maintain stable performance even under high suction lift conditions.
The pump delivers a maximum head of 46 m (shut-off head) and a maximum flow rate of 50 L/Min based on the performance curve. It is capable of maintaining strong pressure across varying flow demands, making it suitable for continuous or intermittent duty applications. The self-priming capability allows suction lift up to 7.6 m when used with a foot valve.
Equipped with a single-phase, enclosed fan-cooled motor, the JS60 operates on 230V power with a nominal output of 0.55 kW. The motor includes built-in thermal protection, IP44 protection rating, Class F insulation, and is designed for continuous operation under standard conditions.
FEATURES- 0.55 kW single-phase motor, 230V supply, 4 Amps current draw
- Maximum head: 46 m (shut-off head)
- Maximum flow rate: 50 L/Min
- Self-priming capability with suction lift up to 7.6 m
- Stainless steel pump casing (AISI 304) for corrosion resistance
- Technopolymer impeller with stainless steel shim ring for efficiency
- Precision-moulded venturi system for enhanced suction performance
- Mechanical seal with graphite and ceramic faces for durability
- Enclosed fan-cooled motor with IP44 protection and Class F insulation
- Continuous duty operation with built-in thermal overload protection
- Maximum liquid temperature: 50°C
- Inlet and outlet connection size: 25 mm (1”)
- Maximum operating pressure: 6 bar
