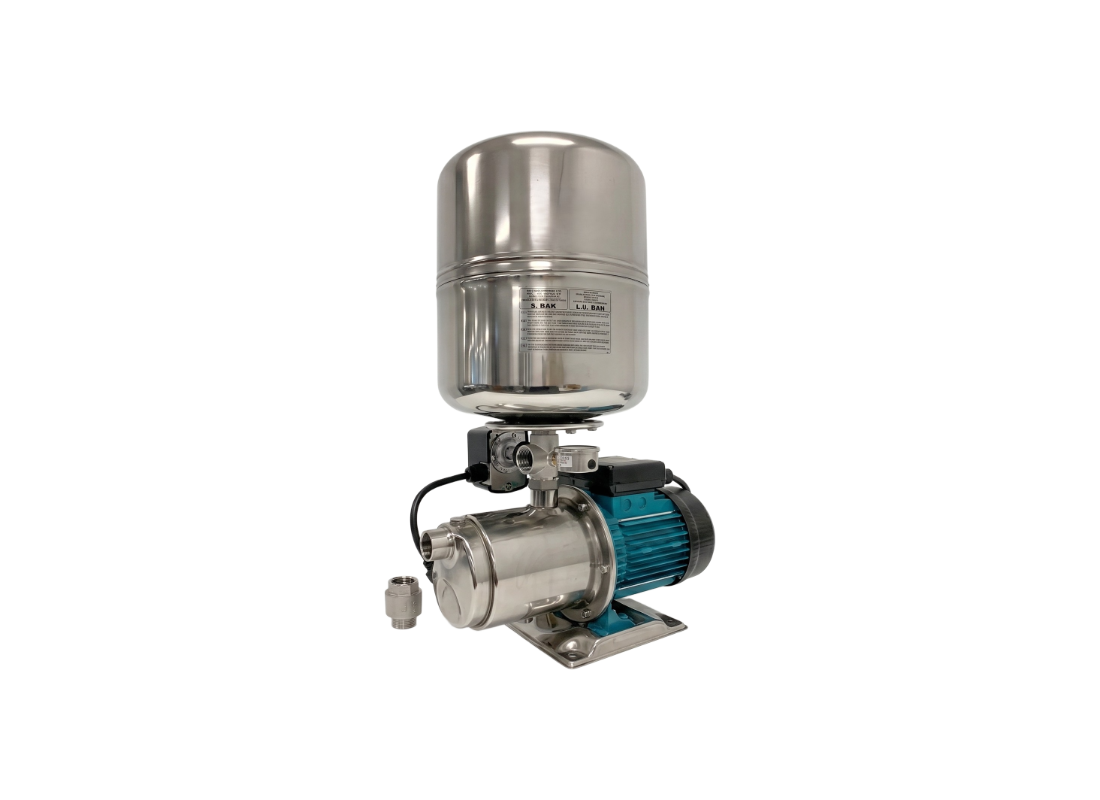

Demanding domestic pressure boosting and large-scale water transfer are the intended functions for this high-performance automatic kit. It provides the hydraulic output required for homes with high multi-tap demand or significant elevation between the water source and the property. The unit is optimized for clean potable water service in large residential estates.
Hydraulic output for this 1.2 kW / 240v model reaches a maximum total head of 71.5 m and a maximum flow rate of 120 L/Min. Drawing a rated current of 7.5 Amps at 50Hz, the motor provides the hydraulic performance needed for high-head domestic applications. These specifications define the maximum capacity for high-pressure residential networks.
Mechanical delivery is provided by a horizontal multistage centrifugal assembly capable of self-priming up to 8m. This design utilizes a series of impellers to build pressure efficiently while maintaining quiet operation in domestic areas. The unit is fully compliant with AS/NZS 4020 standards for safe drinking water transfer.
Structural construction features an AISI 304 stainless steel pump casing and motor shaft for maximum corrosion resistance. The hydraulic assembly consists of fiberglass-reinforced PPO components and a professional carbon/ceramic mechanical seal. This kit is supplied with an AISI 304 pressure switch and a 20L stainless steel pressure tank.
FEATURES
- Self-priming horizontal multistage centrifugal design provides high-flow and high-head delivery for large properties.
- AISI 304 stainless steel pump body and hydraulic shaft ensure durability in corrosive water environments.
- Innovative high-efficiency hydraulic system featuring fiberglass reinforced PPO impellers for mechanical stability.
- D.R.O.P System provides integrated protection to safeguard the motor and hydraulics from operational damage.
- Motor is an enclosed, air-ventilated TEFC induction type rated at IP55 with Class F insulation for safety.
- Carbon graphite and ceramic mechanical seal with NBR gaskets for reliable internal sealing performance.
- Internal PTFE wear ring maintains critical hydraulic tolerances for optimal long-term pump efficiency.
- Supplied as a complete pressure kit with an AISI 304 pressure switch and a 20L stainless steel pressure tank.
