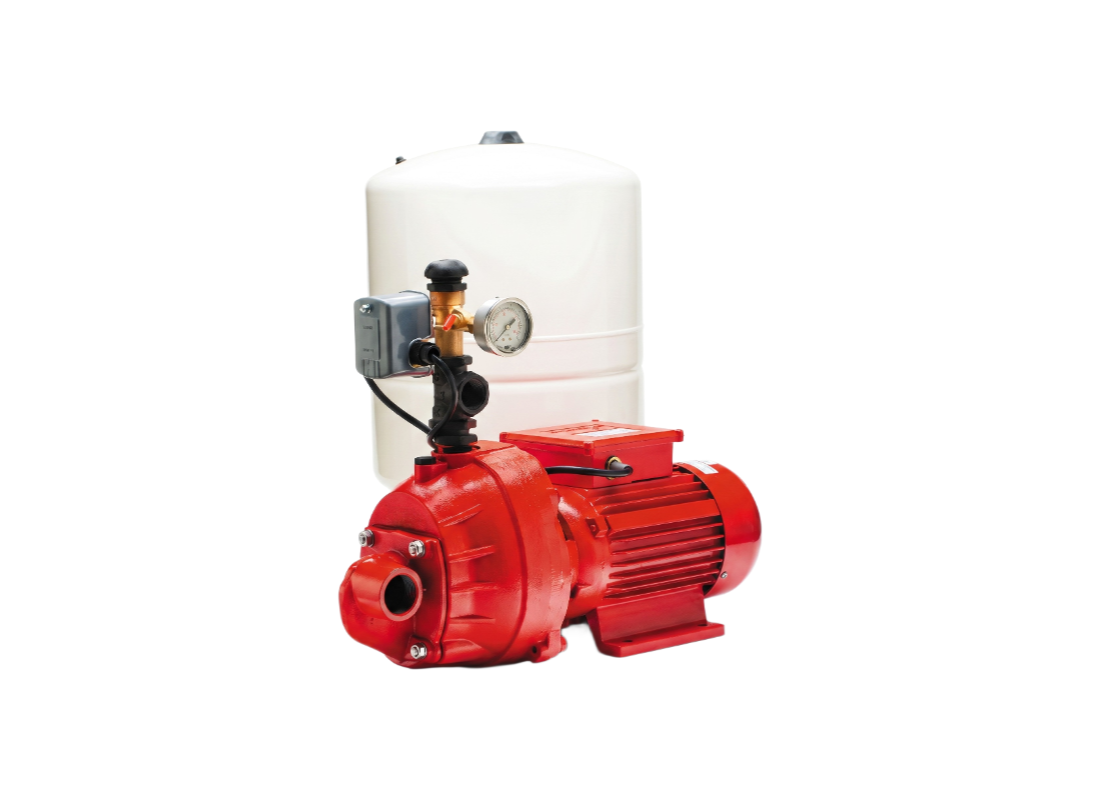

Orange Pumps CJ850-SW59 Cast Iron Shallow Well Pressure Pump for High Volume Water Transfer with 60 Litre Tank

High-volume transfer and automated large property management is the core duty for this high-powered single-phase pressure pump. It is engineered to draw clean water from rivers or dams and move it automatically to site storage systems. The large 60 litre pressure tank provides steady supply with minimal pump interventions.

Driven by a 2.4 kW single-phase 240v motor, the unit draws a rated current of 14.1 Amps during operation. Hydraulic performance is characterized by a maximum flow rate of 205 L/Min and reaching a maximum head of approximately 56 m. This output profile is ideal for managing bulk automatic water distribution across expansive site networks.

The system is factory-supplied with the WK-CJ850 water kit and a Type D mechanical switch integrated with a 60 litre pressure tank for automatic operation. The SW59 injector is hydraulically tuned to deliver high water volumes while the jet and venturi design purges air from the casing. The large 60 litre tank provides increased draw-off capacity, delaying pump starts and reducing energy consumption during routine duties.

Construction hardware includes a solid cast iron body and a double race bearing system designed for mechanical longevity under load. The Type D mechanical switch is engineered without sensitive electronics, providing high resistance to lightning strikes and voltage surges common in remote areas. The assembly is rated for liquids up to 65°C and includes a 2-year warranty.

FEATURES

• Solid cast iron pump housing provides maximum structural integrity in demanding rural installations.
• 60 litre pressure tank offers increased water draw-off capacity to effectively minimize motor start cycles and save energy.
• WK-CJ850 water kit includes a stainless steel barrel union and pressure gauge for automated site management.
• Type D mechanical switch with heavy-duty relay points provides reliable automatic operation without electronic failure risks.
• SW59 injector configuration is designed to achieve high water volumes for rapid tank replenishment.
• Double race bearing technology manages axial and radial loads effectively to extend the life of the 2.4 kW motor.
• Large oval casing holds ample water around the impeller to assist with self-priming.
• TEFC protection safeguards internal electrical components from moisture and dust.
