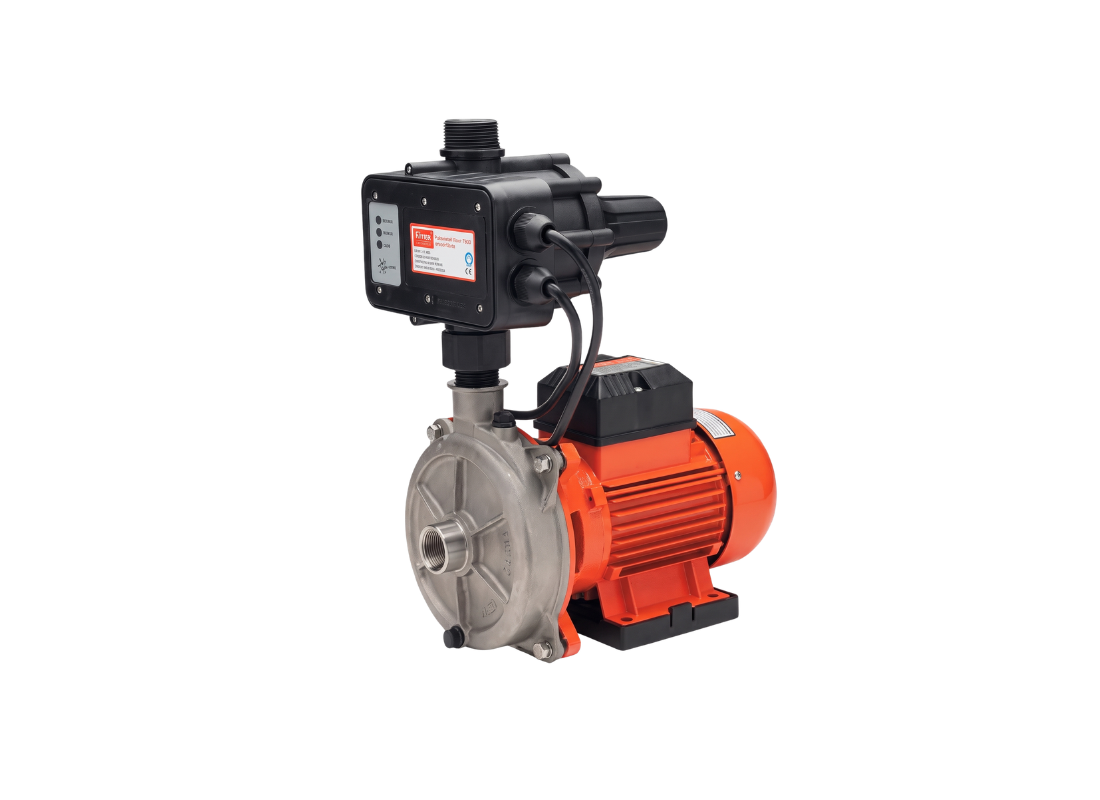

Constructed with a heavy-duty Stainless Steel body, the Orange Pumps CP400-SL-ECL22 Pressure Pump is constructed for continuous service in Multi-Outlet Systems networks. It utilizes hydraulic efficiency to transfer large volumes of clean water without overloading the motor. This pump functions in standard water transfer and low-pressure irrigation systems.
This model features a 1.0 kW motor operating on a Single-phase 240v electrical supply. It achieves a verified maximum flow rate of Approximately 140 L/Min and a maximum head of Approximately 35 m. Under standard full-load operation, the unit draws a rated current of 6.5 Amps.
Structural construction includes a heavy Stainless Steel pump casing and a Open Channel Impeller made from abrasive-resistant thermoplastic. The close-coupled design incorporates a stainless steel motor shaft and a cast iron bearing end shield. This construction reduces shaft deflection and minimizes wear on the internal components.
This automatic pressure system utilizes a built-in check valve and flow stopping mechanism to reduce continuous cycling. It prevents electrical damage during dry-run conditions and includes an easy connect plug-and-socket setup. The pump handles liquid transfer with temperatures up to Maximum 65°C.
FEATURES
- Incorporates an electronic switch to automatically start and stop when water is required, reducing user manual intervention.
- Rugged, corrosion-resistant cast casing that absorbs noise and resists cold, wet, or hot environmental conditions.
- Built-in 360-degree swivel connector allows simple installation and quick electrical plug-and-socket connection.
- Motor operates through a wide voltage range with low operating temperature, protecting bearings, windings, and seals.
- Fully integrated thermal overload cut-out protects the motor windings from overheating and electrical damage.
- Automatically stops the motor when the water supply is empty to prevent dry running and potential pump damage.
- Precision-shaped Open Channel Impeller is temperature-tolerant and impervious to hard water for longevity.
FAQs
General Product FAQs
1. How do I choose the right pump for my setup?
Selecting the correct pump depends on your required flow (L/min), total head (vertical lift + friction loss), and power source. If you're unsure, contact our team and we’ll size the right system for you.
2. Do you offer support with system design or setup?
Yes — we provide expert advice to help you choose, install, and optimise your pump system. Whether it's a simple setup or a custom solution, we’re here to help.
3. Do you offer complete pump solutions or just products?
We don’t just sell pumps — we provide complete solutions. From accessories and control systems to full packaged setups, we can supply everything required to get your system running efficiently.
Shipping & Availability
1. Do you offer Australia-wide shipping?
Yes — we ship across Australia. Bulk or oversized orders may incur additional freight charges otherwise we offer free shipping over $100*
2. How long does delivery take?
Orders are typically shipped within 1–2 business days, with delivery taking approximately 2–7 days depending on your location.
3. What courier or freight companies do you use?
We work with a range of trusted carriers including Australia Post, StarTrack, TNT, and other national freight providers depending on the size and location of your order. This allows us to ensure fast, reliable delivery across Australia, including regional and remote areas.
Warranty & Support
1. Do your pumps come with a warranty?
Yes — all products are backed by manufacturer warranties. Warranty periods vary depending on the brand and product type.
2. What support do you offer after purchase?
We provide ongoing support including:
- Installation advice
- Troubleshooting
- Spare parts supply
- System upgrades
3. What is the warranty process if something goes wrong?
If you experience an issue, simply contact our team with your order details and a description of the problem. We’ll guide you through troubleshooting and, if required, arrange repair, replacement, or manufacturer assessment in line with warranty terms.
Why choose Foundation Pumps?
1. Why choose Foundation Pumps over other suppliers?
We focus on supplying proven, high-quality pump solutions backed by real industry knowledge. Unlike general resellers, we understand how these systems perform in the field and provide honest, practical advice to ensure you get the right solution the first time.
2. Do you offer expert advice before and after purchase?
Yes — we support you at every stage, from selecting the right pump through to installation and ongoing use. Our team is available to assist with sizing, troubleshooting, and system optimisation whenever you need it.
3. Do you stock trusted brands and quality products?
We carefully select and supply pumps from reputable manufacturers known for reliability and performance. Our range includes both industry-leading brands and high-value alternatives that meet Australian standards and conditions.
