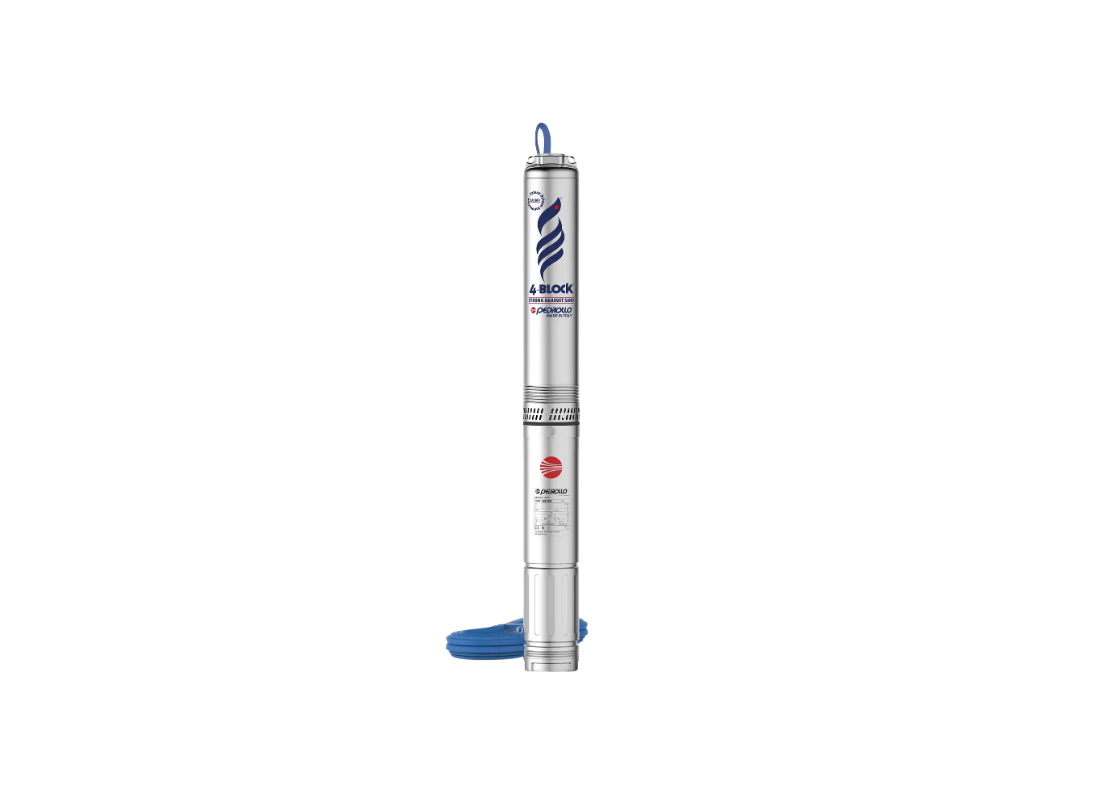

Pedrollo 4BLOCKm2/10 Stainless Steel 0.55kW 2-Wire 4" Submersible Pump with 30m Lead and Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Supplied complete with a 0.55kW 2-wire motor and 30-metre lead, the Pedrollo 4BLOCKm2/10 is a ready-to-install submersible pump for domestic water supply and irrigation systems. This 4BLOCK2/10 model features patented floating impellers that handle sand concentrations up to 200 g/m³, making it suitable for clean well water extraction where suspended solids are a concern.
Powered by a 240V single-phase motor drawing 4.4 Amps, the pump delivers 75 metres of shut-off head with a maximum flow of 60 L/Min. The hydraulic design incorporates fully independent floating impellers that maintain efficiency even when handling water containing suspended particles. Discharge is through a 32 mm port, and the pre-installed 30-metre lead simplifies borehole installation.
The stainless steel AISI 304 construction resists corrosion, while the non-toxic food-safe oil-filled motor ensures safe operation for potable water applications. The power cord is HRC certified for drinking water use, approved by ACS according to XP P 41-250. Noryl diffusers and Delrin impellers provide abrasion resistance for long service life in sandy conditions.
Weighing 12.3 kg, the pump features a compact 4-inch design that fits standard boreholes. The built-in capacitor eliminates the need for external starting equipment, simplifying installation. Continuous running duty S1 with Class F insulation and IP X8 protection ensures dependable operation, with liquid temperature tolerance up to 35°C.
FEATURES- Ready-to-install with integrated capacitor and thermal motor protection
- Complete with 30-metre power lead for straightforward installation
- Patented floating impeller hydraulics handle sand up to 200 g/m³
- Drinking water approved power cord with ACS certification
- Oil-filled submersible motor with non-toxic food-safe oil
- Class F insulation with IP X8 protection rating
- Continuous S1 duty operation for reliable performance
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Is the power cable on this pump approved for domestic drinking water installations?
Yes, the power cord on the 4BLOCKm2/10 is ACS certified and approved for drinking water use according to XP P 41-250.
Does this borehole pump require an external starting box to run?
No external control box is required because the 4BLOCKm-2-10 features an integrated capacitor and built-in thermal overload protection.
How much suspended sand can this floating impeller pump tolerate?
Patented floating impellers allow the 4BLOCKm 2 10 to handle abrasive groundwater with sand concentrations up to 200 g/m3.
What are the shut-off head and flow capacity ratings for this model?
The 4BLOCKm_2_10 delivers 75 metres of shut-off head with a maximum flow rate of 60 L/Min.
What is the length of the factory-fitted electrical power lead?
Supplied ready for immediate installation, the 4BLOCKm2/10 comes equipped with a pre-installed 30-metre power lead.
