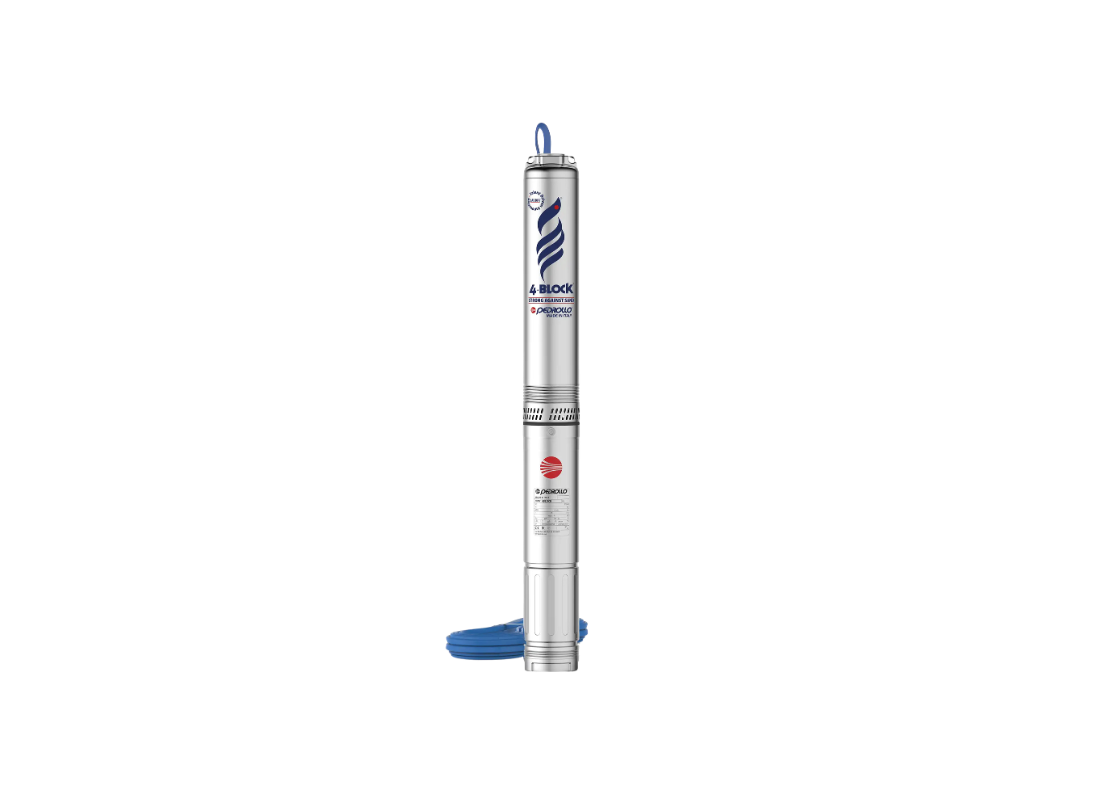

Pedrollo 4BLOCKm2/13 Stainless Steel 0.75kW 2-Wire 4" Submersible Pump with 30m Lead and Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
The Pedrollo 4BLOCKm2/13 is supplied complete with a 0.75kW 2-wire motor and 30-metre lead, making it a ready-to-install solution for commercial water distribution and agricultural irrigation. This 4BLOCK2/13 model features patented floating impellers that handle sand concentrations up to 200 g/m³ while maintaining hydraulic efficiency in 4-inch boreholes.
The 240V single-phase motor draws 6.1 Amps and delivers 97 metres of shut-off head with a maximum flow of 60 L/Min. The hydraulic design features fully independent floating impellers that tolerate suspended solids without performance degradation. The 32 mm discharge port connects to standard distribution pipework, and the factory-fitted 30-metre lead simplifies installation.
Stainless steel AISI 304 construction provides corrosion resistance for long-term submerged operation. The non-toxic oil-filled motor is suitable for potable water systems, with the power cord HRC certified for drinking water use according to ACS approval. Noryl diffusers and Delrin impellers offer abrasion resistance in sandy groundwater conditions.
At 13.9 kg, the pump maintains a compact 4-inch profile suitable for standard boreholes. The built-in motor capacitor eliminates the need for external starting equipment. The unit is designed for continuous S1 duty with Class F insulation and IP X8 protection, handling liquid temperatures up to 35°C.
FEATURES- Integrated capacitor and thermal protection for simplified installation
- Complete with 30-metre power lead for convenient setup
- Patented floating impeller technology for sand handling up to 200 g/m³
- ACS certified power cord approved for drinking water supply
- Food-safe oil-filled motor suitable for potable applications
- Class F insulation with IP X8 submersion protection
- Continuous S1 duty rating for dependable operation
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What is the maximum shut-off head for this commercial water distribution pump?
The 4BLOCKm2/13 achieves a maximum shut-off head of 97 metres while delivering flow rates up to 60 L/Min.
Is the motor oil safe for use in potable drinking water supplies?
Yes, the 4BLOCKm-2-13 features an oil-filled submersible motor that utilizes non-toxic, food-safe oil suitable for potable water.
How much current does this 0.75 kW single-phase motor draw?
Drawing from a 240 V single-phase supply, the 0.75 kW motor of the 4BLOCKm 2 13 draws 6.1 Amps.
What materials are used in the diffusers and impellers to resist abrasive wear?
Noryl diffusers and Delrin impellers provide the 4BLOCKm_2_13 with outstanding abrasion resistance in sandy groundwater.
What discharge port size connects this pump to distribution pipework?
Discharge is routed through a standard 32 mm outlet port on the 4BLOCKm2/13 for connection to distribution lines.
